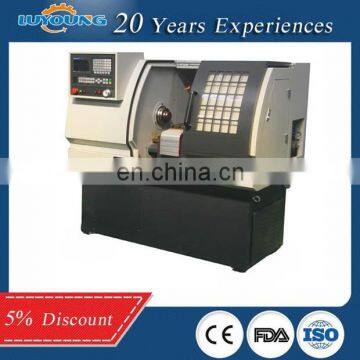

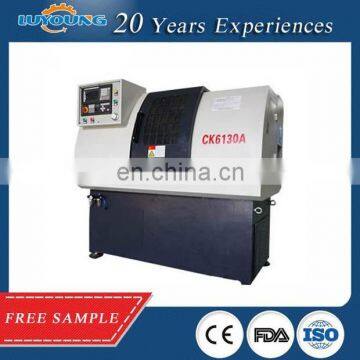

CK6130 CNC Horizontal Lathe With Numerical Control
US$ 7,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CK 6132/CK6132A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK0640 High Precision Horizontal CNC Mini Lathe for Metal With CE, ISOUS$ 4,500 - 6,500MOQ: 1 Set -
CK6432 China Small Metal Used Cnc Lathe Machine for SaleUS$ 5,800 - 9,000MOQ: 1 Set
-
CK6140 Small Flat Bed Used Cnc Lathe Machine Price With ISO,CEUS$ 8,000 - 10,000MOQ: 1 Set
-
CK6136 High Precision Horizontal Small Torno Mechanic Cnc Machine PriceUS$ 7,200 - 9,000MOQ: 1 Set
-
China Hydraulic Lathe Machine Small Cnc for Sale With ce CertificateUS$ 7,900 - 9,000MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CK 6132/CK6132A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

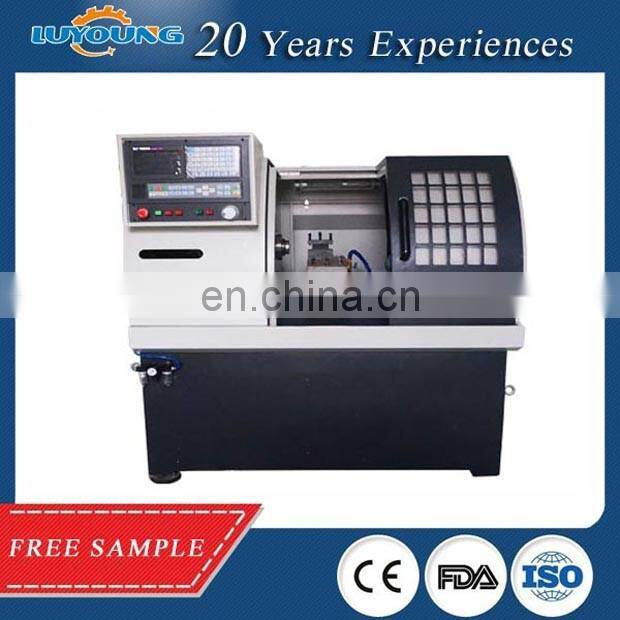

CK6130 CNC horizontal lathe with numerical control
Product Description
| Flat Bed Small CNC Lathe Machine CK6130 | |
| Item | CK6130 |
| Max. swing dia. over bed | 320mm |
| Max. swing dia. over cross slide | 100mm |
| Max. processing length | 400mm(collet) |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 41mm |
| Spindle speed | 50-3000rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20x20 16X16mm |
| Main motor power | 4kw |
| X/Z axis travel stoke(mm) | 300/380 |
| X/Z axis fast feeding speed | 8/10 m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Clamping | Pnematic collet |
| Tailstock sleeve dia. | 60mm |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension | 1750X1200X1570 |
| weight | 1220kg |
| Standard configuration: | Option configuration: |
| GSK 928TD-L | Siemens,fanuc cnc controller |
| Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
| Gang type tool carrier | Auto feeder system |
| Manual Tailstock | Pneumatic chuck |
| Auto lubrication system | Hydrualic chuck |
| Lighting system | pneumatice tailstock |
| Cooling system | hydraulic tailstock |
| 380V 3 phase(if your local have special request pls let us know) | |

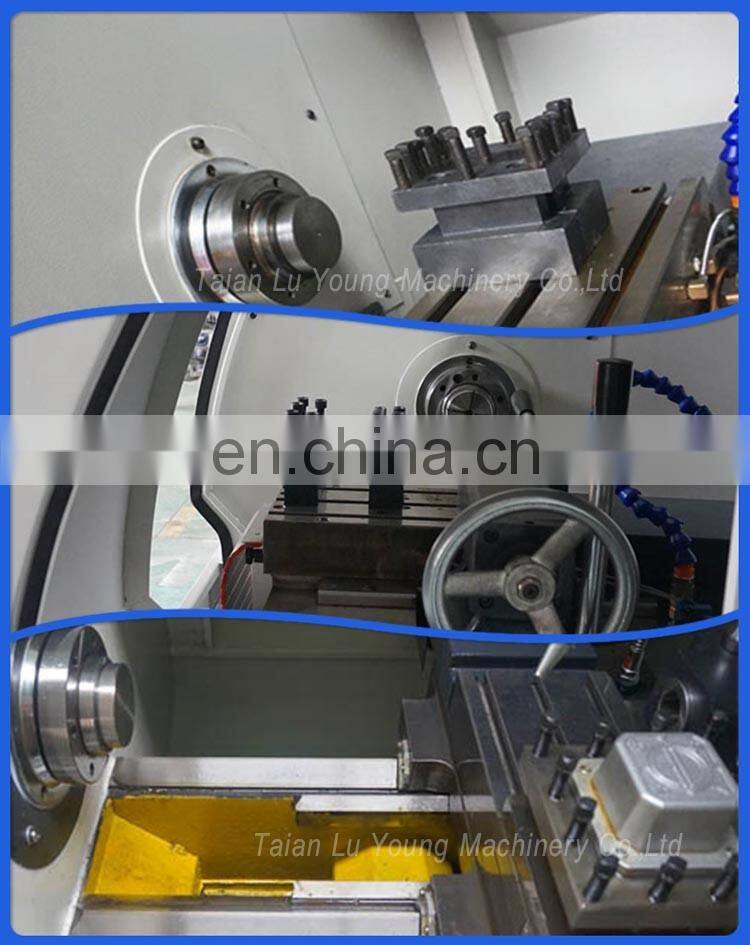

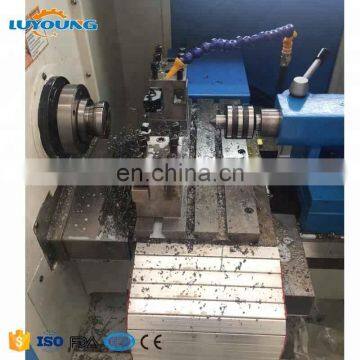

| Detail Photo: | |
| |
| |
