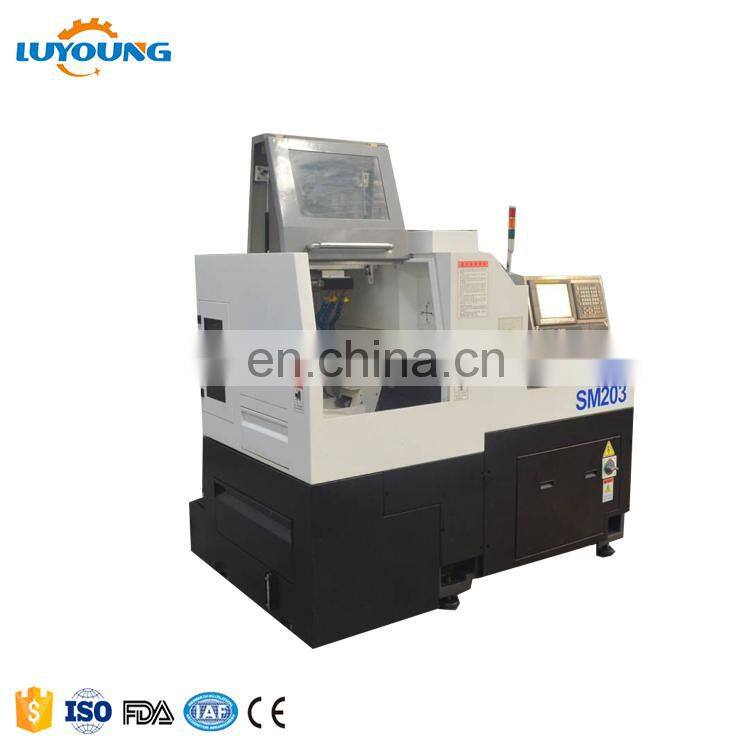

Sm203 Swiss automatic lathe automatic machining of bone nailsSpecification of Sm203 Swiss automatic lathe automatic machining of bone nails
| Description | Unit | Specifications | ||
| Processing capacity | Max maching diameter | mm | 20 | |
| Stroke | mm | 260 | ||
| Max. Turning Diameter | mm | 20 | ||
| Main Spindle RPM | rpm | 8000 | ||
| Sub Spindle RPM | rpm | 8000 | ||
| Cross Driven Tools | rpm | 5000 | ||
| Back Work Tools | rpm | 5000 | ||
| C axis Additional Positive Brake | 1/1000(0.001) | |||
| Max. Turning Diameter | mm | 20 | ||
| Traverse Rate | Stroke | X1 axis | mm | 60 |
| Y axis | mm | 342.5 | ||
| Z1 axis | mm | 260 | ||
| X2 axis | mm | 355 | ||
| Z2 axis | mm | 220 | ||
| Rapid Traverse Rate | X1 axis | m/min | 24 | |
| Number of tools | O.D Tools | ea | 6 | |
| Front Work Tools | ea | 5 | ||
| Cross Living Tools | ea | 4 | ||
| Back Work Tools | ea | 3(Rotation)+1(fixed) | ||
| O.D Tools specification | mm | 12×12 | ||
| Front Work Tools diameter | mm | (Standard)25 | ||
| Power Tool Chuck Specifications | mm | ER16 | ||
| Spindle motor | kw | 2.2/3.7 | ||
| Sub Spindle motor | kw | 1.5/2.2 | ||
| Motors | Servo axis motor | kw | 0.75 | |
| Cross Driven Tools motor | kw | 2.5kw | ||
| Back Work Tools motor | kw | 1 | ||
| Lubrication pump motor | w | 5 | ||
| Coolant motor | kw | 0.4(pressure 0.5bar) | ||
| Coolant tank capacity | L | 180 | ||
| Lubrication tank capacity | L | 1.8 | ||
| Height from floor tospindle center | mm | 1000 | ||
| Dimension | mm | 2135×1510×1660 | ||
| Cross Weight | KG | 2800 | ||

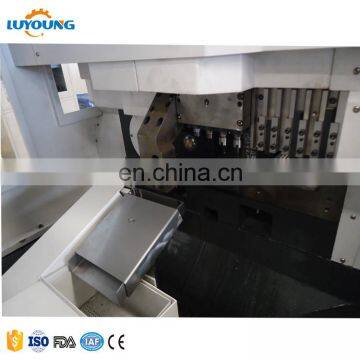

sm203 Swiss automatic lathe automatic machining of bone nails configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender
Swiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, military, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.1.Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).
3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.

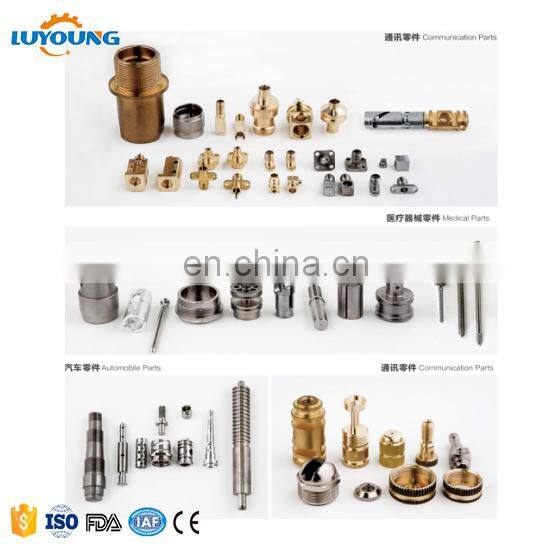

6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Company profile
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
packaging and transportation
1. We use the special plywood box for export, and our products are shipped by sea.
2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
After the trade fair
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
Why choose us
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
