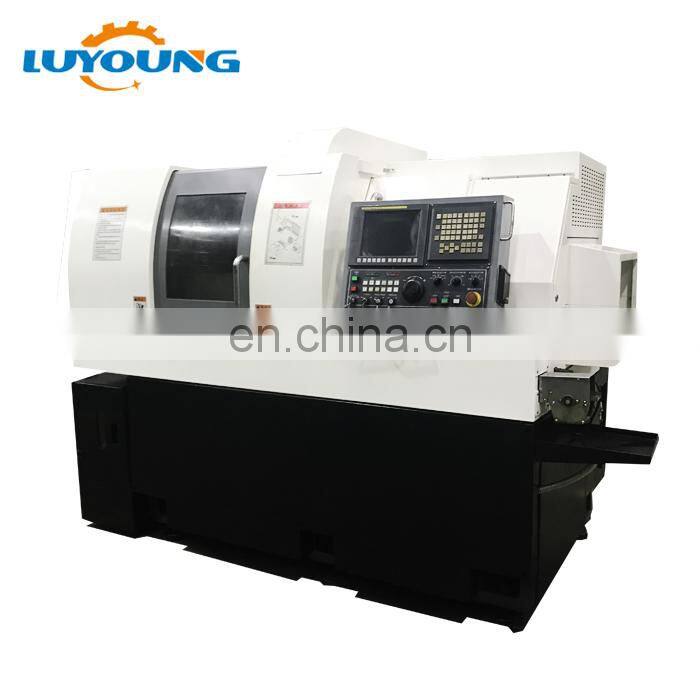

SM385 Automatic bone screw swiss type medical treatment cnc lathe machine

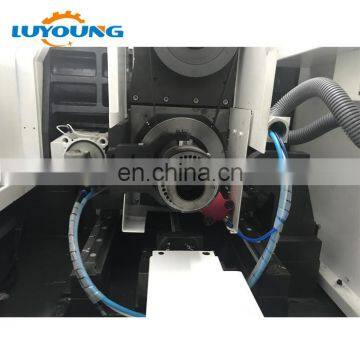

SM385 Automatic bone screw swiss type medical treatment cnc lathe machine configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender shaft parts.
Specification of SM385 Automatic bone screw swiss type medical treatment cnc lathe machine
| Describe | unit | specifications | |||
| Processing capacity | Max maching diameter | mm | 40 | ||
| Stroke | mm | 220 | |||
| Main Spindle RPM | rpm | 8000 | |||
| Sub Spindle RPM | rpm | 8000 | |||
| Cross Driven Tools RPM | rpm | 5000 | |||
| Additional Positive Brake | ° | 1/1000(0.001) | |||
| Max. Turning Diameter | mm | 40 | |||
| Traverse Rate | Stroke | X1 axis | mm | 60 | |
| Y axis | mm | 380 | |||
| Z1 axis | mm | 220 | |||
| X2 axis | mm | 380 | |||
| Z2 axis | mm | 220 | |||
| Rapid Traverse Rate | X1 axis | m/min | 24 | ||
| Y/Z1/X2/Z2 axis | m/min | 32 | |||
| Arrangement of tools | O.D Tools | ea | 5 | ||
| Front Work Tools | ea | 5 | |||
| Cross Driven Tools | ea | 4 | |||
| Back Work Tools | ea | 4 | |||
| O.D Tools specification | mm | 16×16 | |||
| Front Work Tools diameter | mm | 3 sets 25mm+2 sets 20mm | |||
| Power Tool Chuck Specifications | mm | ER16 | |||
| Motors | Spindle motor | kw | 5.5/7.5 | ||
| Sub Spindle motor | kw | 1.5/2.2 | |||
| Servo axis motor | kw | 1 | |||
| Cross Driven Tools motor | kw | 0.55/1.1 | |||
| Lubrication pump motor | w | 5 | |||
| Coolant motor | kw | 0.9 | |||
| Others | Coolant tank capacity | L | 200 | ||
| Lubrication tank capacity | L | 1.8 | |||
| Height from floor tospindle center | mm | 1000 | |||
| Floor space | (L) | mm | 2800 | ||
| (W) | mm | 1475 | |||
| (H) | mm | 1850 | |||
| Mass of machine | kg | 4500 | |||
| CNC control unit | SYNTEC 200TB | ||||
Application of SM385 Automatic bone screw swiss type medical treatment cnc lathe machine
Swiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, military, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).

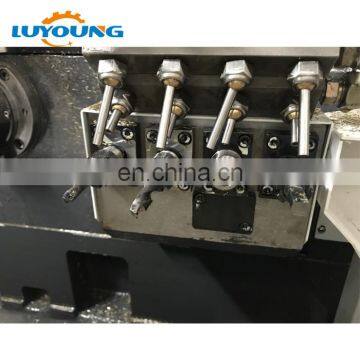

3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
