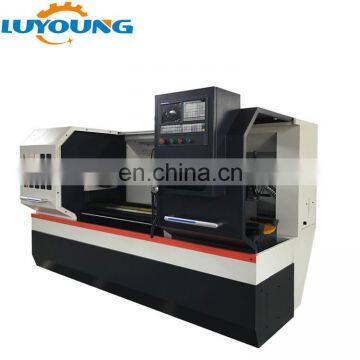

CK6160 Names of China horizontal lathe machine
CK6160 Names of China horizontal lathe machine have unique and fine appearance . With advantage of high speed ,high precision ,efficient ,It’s suitable for high-volume ,medium and small batch production of various kinds of complex parts .The key part - casting is required to goes through complex procedure and repeatedly test,and the hardness could over HRC 50°.We are going further and further on pursuing high working precision and durable service life.
CK6160 Names of China horizontal lathe machine | ||
Item |
CK6160 |
|
Max. swing dia. over bed |
Φ600mm |
|
Max. swing dia. over cross slide |
Φ400mm |
|
Max. processing length(mm) |
800mm |
1500mm |
Dia. of spindle hole |
Φ130mm |
|
Spindle speed |
150-2500rpm |
|
spindle taper |
MT6# |
|
Tool holder |
4 station electric tool post(optional 6/8staion electric turret) |
|
Tool bar section |
25x25 |
|
Main motor power |
11kw |
|
X/Z axis fast feeding speed |
5/10 m/min |
|
X/Z axis position accuracy(mm) |
0.01/0.015 |
|
X/Z-axis repeatability(mm) |
0.012/0.013 |
|
Clamping |
3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) |
|
Tailstock sleeve dia. |
75mm |
|
Tailstock sleeve travel |
140mm |
|
Tailstock taper |
MT5 |
|
Dimension |
3600*1300*1680mm |
|
Weight(kg) |
1250 |
1450 |
Standard configuration: |
Optinal configuration: |
|

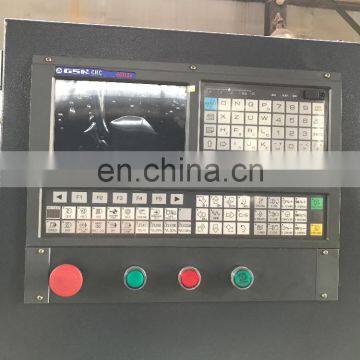

GSK980 CNC Controller |
Siemens,Fanuc cnc controller system |
|
Servo motor for X,Z axis, Servo driven |
pneumatic chuck,hydraulic chuck |
|
3 Jaw Manual Chuck |
pneumatic tailstock,hydraulic tailstock |
|

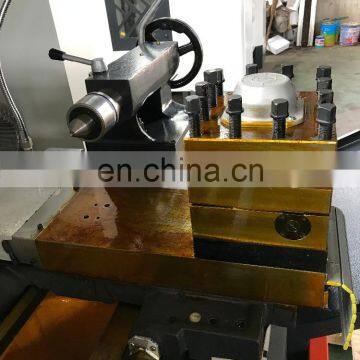

4 station electric tool post |
6 staion tool turret,8staiton tool turret |
|

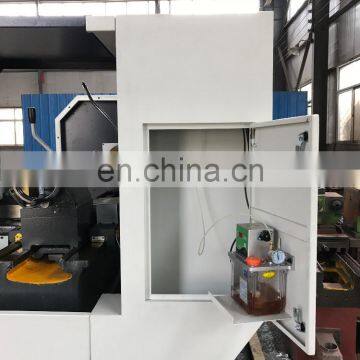

Auto lubrication system |
Auto feeder system |
|
lighting system |
Chip conveyor |
|
cooling system |
||
· 1.Superaudio quenching guide rail with excellent wear resistance and durable service life , High rigidity single spindle casting ,frequency conversion motor and constant speed moving
· 2.Reliable quality:Every control system equipped from world famous brand like:GSK ,Fanuc , siemens.
· 3.Automatic lubrication system minimize the damage on the machine ,extend the service life
· 4.four or six-station knife tool optional
· Packaging:sea worthy standard wooden case
· Shipment: within 15 days after payment
Taian Luyoung Machinery is located in Shandong province , which is the region of world famous mountain Tai and one of the cradleland of Chinese culture . Luyoung have engaged in the line of manufacturing and trading CNC machines for more than 20 years.Our prodct contains:CNC lathe machine , CNC milling machine,CNC machine center , CNC Swiss type lathe . With mission “ credit is the basic , quality is the first ” , we can ensure the prime quality and the most impressive price in the industry, we are going further and further on pursuing high standard high quality products and high satisfaction .
1. Customized service:Just tell us your needs about our service or the goods.
2. 7*24hours service:We’d love to offer help anytime,be free to contact us please.
3. Customer visiting & Free training :Welcome to China and visit our workshop and products
4. After sales service: We supply replacement parts for free if the machine is proved defective within 12 months .While the guarantee period of computer range from 1-3years.according the brand.
- What if I have problem with using mahine ?
(1)every machine would be equiped with a manual operation
(2)Free training is available .
(3)Be free to call or E-mail us anytime ,we're ready to offer help in 7*24 hours .
- I don't know how to choose the right model?
Send us the workpiece ,we'll help you to choose the right one.
- About payment .
We accept L/C,T/T,D/A,D/P ,and 30% deposit advanced by T/T ,the balance should be paid before the shipment.
- About delivery .
Generally,we can deliver the goods within 30 days .
- How can I get the quotation ?
You can contact us by phone or e-mail .Send us your requirments ,the best offer would be provided soon.
