CWR28 Diamond Cutting Wheel Repair Machine
US$ 15,500 - 18,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CWR28
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6180 Cheap Torno CNC Lathe Machine for MetalUS$ 29,000 - 35,000MOQ: 1 Set -
CK6180 Metal Spinning CNC Lathe MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
CWR32 Alloy Wheel Repair CNC Lathe EquipmentUS$ 18,000 - 22,000MOQ: 1 Set
-
CWR32 Alloy Wheel Repair Polishing Lathe MachineUS$ 15,500 - 18,800MOQ: 1 Set
-
CWR28 Wheel Rim Repair Lathe MachineUS$ 15,500 - 18,800MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CWR28
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

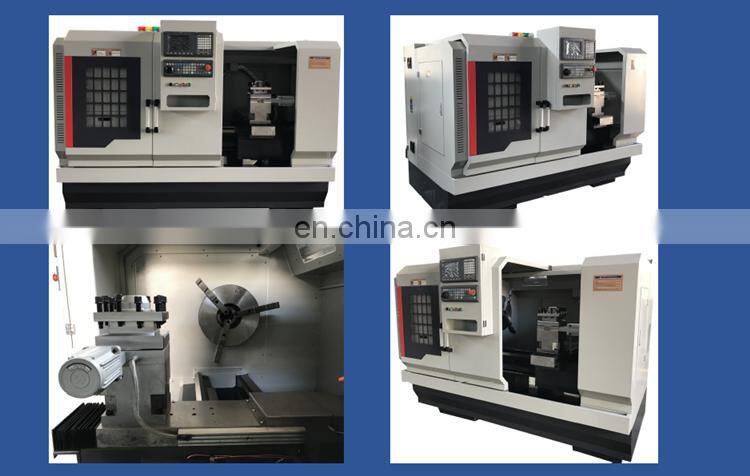

CWR28 Diamond cutting wheel repair machine
Product Description
CWR28 Diamond cutting wheel repair machine
1.Three setectors system and high precision pressure detector are used for the accurate measurement of hub.
2. Range between two bearings is 40% - 50% longer than normal machine ,and high rigidity bearing that has improved its rigidity 25% more , which make cutting easier and more smoothly .
| CWR28 Diamond cutting wheel repair machine | |||
| Alloy wheel repair machine | CWR28 | CWR32 | |
| Max. swig over bed Dia. | Φ770 (30'') | Φ880(34'') | |
| Max. Load alloy wheel Size | 28 inches | 32 inches | |
| Adjustable stroke of carrier in X direction | 100mm | 100mm | |
| Cross slide travel (mm) | 390 | 450 | |
| Width of the rail (mm) | 300 | 400 | |
| Length of the rail (mm) | 1300 | 1650 | |
| Size of the three-jaw chuck (inch) | 12'' | 16'' | |
| Range of spindle speed (RPM) | 50~2000 | 50~1800 | |
| Spindle speed control | Automatic | Automatic | |
| Spindle bore (mm) | Φ82 | Φ82 | |
| Taper of spindle bore | 1:20(Φ90) | 1:20(Φ90) | |
| Max. size of tool post | 25×25mm | 25×25mm | |
| Stations of tool carrier | 4 position | 4 position | |
| Min. setting unit of motor | (Z) long 0.001mm, | ||
| (X) cross 0.001mm | |||
| Moving speed of post | (Z) long 8m/min, | ||
| (X) cross 6m/min | |||
| Motor power | 7.5KW | 7.5KW | |
| Mchine base(cast iron base) | Whole | Separate | |
| Machine size | (L×W×H) (mm³) | 2140 ×1600×1860 | 2970×1660×2080 |
| Package size | 2300×1750×2100 | 3120×1810×2350 | |
| Net weight | 2600kgs | 3200kgs | |
| Standard configuration | ||
| 1 | Diamond Cutter 1 set | |
| 2 | 3-Jaws Chuck(With Special Soft Jaws) | |
| 3 | Pioneer Sensing Probe TP300 | |
| 4 | SYNTEC | |
| 5 | Manual Quick Change Toolpost,Four-station | |
| 6 | Work Lighting System | |
| 7 | Automatic Lubrication System | |
| 8 | Cooling System | |
| 9 | Full Enclose(Security Guard Door) | |
| 10 | Tools&Tool Box | |
| 11 | Specific Digital Optimization Software | |
| 12 | Training Video CD | |
-

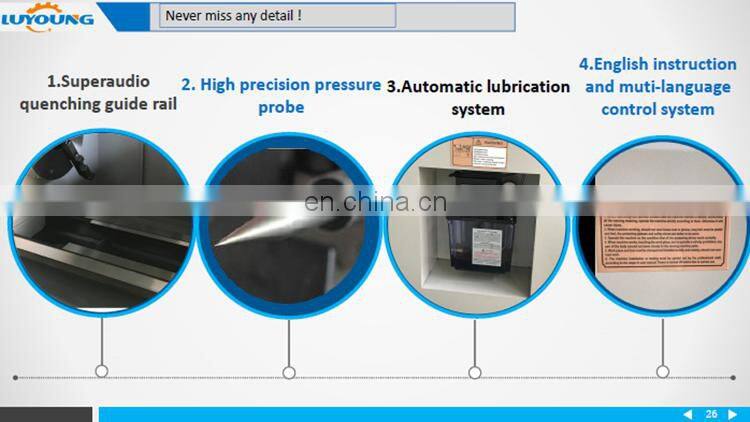

1.Superaudio quenching guide rail with excellent wear resistance and durable service life , High rigidity single spindle casting ,frequency conversion motor and constant speed moving .
- 2.High precision pressure probe

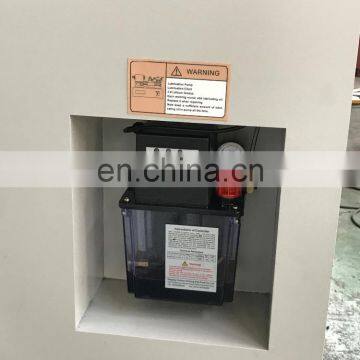

- 3.Automatic lubrication system minimize the damage on the machine ,extend the service life
- 4.User friendly design -English instruction and muti-language control system.
Packaging & Shipping
- · Packaging:sea worthy standard wooden case
- · Shipment: 15-30 days after payment
Company Information
Taian Luyoung Machinery is located in Shandong province , which is the region of world famous mountain Tai and one of the cradleland of Chinese culture . Luyoung have engaged in the line of manufacturing and trading CNC machines for more than 20 years.Our prodct contains:CNC lathe machine , CNC milling machine,CNC machine center , CNC Swiss type lathe . With mission “ credit is the basic , quality is the first ” , we can ensure the prime quality and the most impressive price in the industry, we are going further and further on pursuing high standard high quality products and high satisfaction .
