Micro Cnc Lathe Low Price Fanuc Servo Motor CK0640A
US$ 4,800 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
CK0640A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK0640 China Factory Price Used Mini Hobby Metal Lathe Machine With 220v 1 PhaseUS$ 4,500 - 6,000MOQ: 1 Set -
CK680 High Precision China New Cnc Vertical Turning Lathe for MetalUS$ 30,000 - 40,000MOQ: 1 Set
-
CK680 High Precision Vertical Cnc Lathe Machine Tools for Sale With ce CertificationUS$ 30,000 - 40,000MOQ: 1 Set
-
CK6180 High Precision Gear Change Heavy Duty Big Cnc Lathe Machine ToolUS$ 17,000 - 35,000MOQ: 1 Set
-
CK6432 Automatic Chinese Metal Cnc Lathe Price and Specification MachineUS$ 5,800 - 9,000MOQ: 1 Set
Brand Name
Lu Young
Place of Origin
Shandong, China
Model Number
CK0640A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
micro cnc lathe Low Price fanuc servo motor CK0640A
Product Description
| Flat Bed Small CNC Lathe Machine | |
| Item | CK0640 |
| Max. swing dia. over bed | 300mm |
| Max. swing dia. over cross slide | 130mm |
| Max. processing length | 200mm |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 40mm |
| Spindle speed | 50-2500rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20x20 16X16mm |
| Main motor power | 3kw |
| X/Z axis travel stoke(mm) | 200/280 |
| X/Z axis fast feeding speed | 6/8m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Clamping | Pneumatic collet |
| Tailstock sleeve dia. | no |
| Tailstock sleeve travel | no |
| Tailstock taper | no |
| Dimension | 1550X920X1450 |
| weight | 850kg |
| CK0640 | |
| Standard configuration: | Option configuration: |
| GSK 928TD-L | Siemens,fanuc cnc controller |
| Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
| Gang type tool carrier | Auto feeder system |
| Auto lubrication system | Pneumatic chuck |
| Lighting system | Hydrualic chuck |
| Cooling system | Tailstock |
| 380V 3 phase(if your local have special request pls let us know) | |

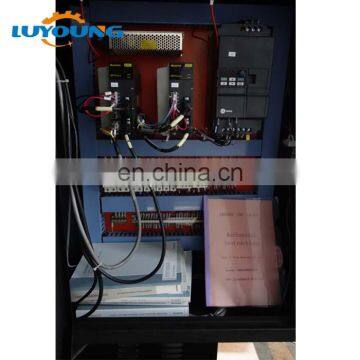

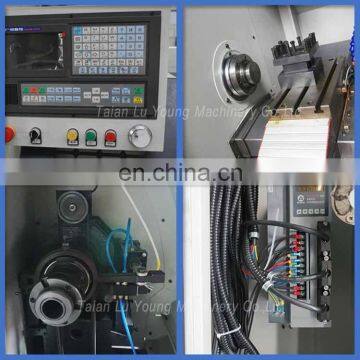

| Detail Photo: |
|
| Auto feeder system: |
|
| Machining Samples: |
|
Related Products
Who Choose US
| Our Customer |
|
|

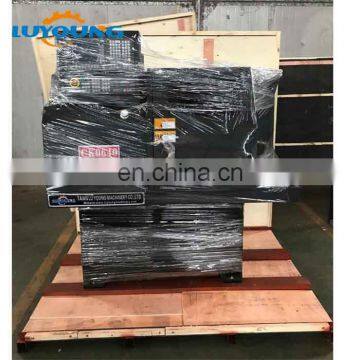

Packaging & Shipping
