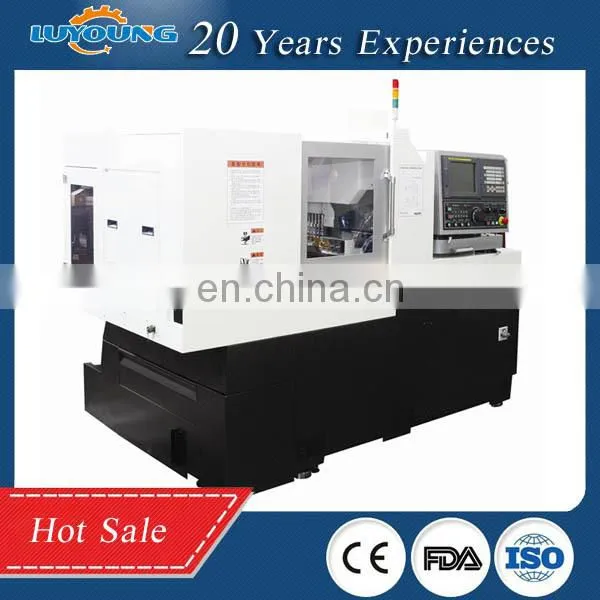

SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process

SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process thumbnail-1
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process thumbnail-2
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process thumbnail-3
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process thumbnail-4
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process photo-1
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process photo-2

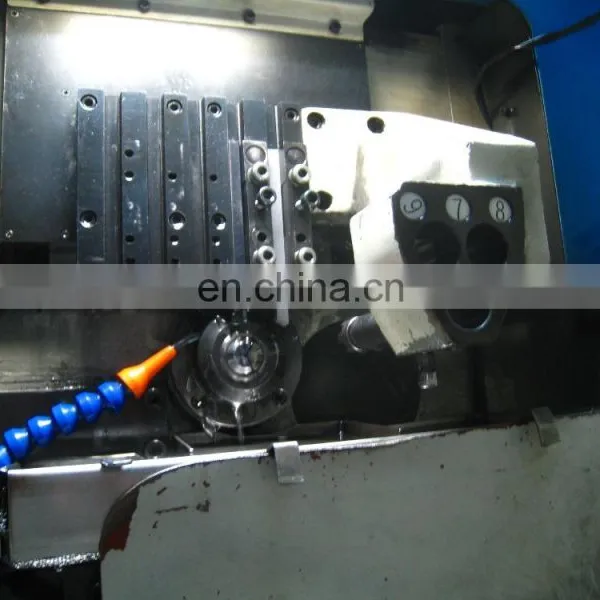

SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process photo-3
SCK205E Swiss Type Double Spindle Cnc Lathe Machine For Medical Process photo-4
US$ 35,000 - 58,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lu Young
Place of Origin:
Shandong, China
Model Number:
SCK205H
Contact Supplier Request Quote Chat Now
5 Axis Machining Center Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Lu Young
Place of Origin Shandong, China
Model Number SCK205H
After-sales Service Provided Engineers available to service machinery overseas
Condition New

SCK205E Swiss Type Double Spindle Cnc Lathe Machine For medical process




Product Description





Description

Unit

Specifications

Processing capacity

Max maching diameter

mm

20

Stroke

mm

260

Max. Turning Diameter

mm

20

Main Spindle RPM

rpm

8000

Sub Spindle RPM

rpm

8000

Cross Driven Tools

rpm

5000

Back Work Tools

rpm

5000

C axis Additional Positive Brake

degree

1/1000(0.001)

Max. Turning Diameter

mm

20

Traverse Rate

Stroke

X1 axis

mm

60

Y axis

mm

342.5

Z1 axis

mm

260

X2 axis

mm

355

Z2 axis

mm

220

Rapid Traverse Rate

X1 axis

m/min

24

Y/Z1/X2/Z2 axis

m/min

32

Number of tools

O.D Tools

ea

6

Front Work Tools

ea

5

Cross Living Tools

ea

4/7

Back Work Tools

ea

3(Rotation)+1(fixed)

O.D Tools specification

mm

12×12

Front Work Tools diameter

mm

(Standard)25

Power Tool Chuck Specifications

mm

ER16

Spindle motor

kw

4.4

Sub Spindle motor

kw

2.9





Motors

Servo axis motor

kw

0.75

Cross Driven Tools motor

kw

0.75/2.5kw

Back Work Tools motor

kw

1.0

Lubrication pump motor

w

5

Coolant motor

kw

0.4(pressure 0.5bar)

Coolant  tank  capacity

L

180

Lubrication tank capacity

L

1.8

Height from floor tospindle center

mm

1000

Dimension

mm

2560×1510×1660

Cross Weight

KG

3600
