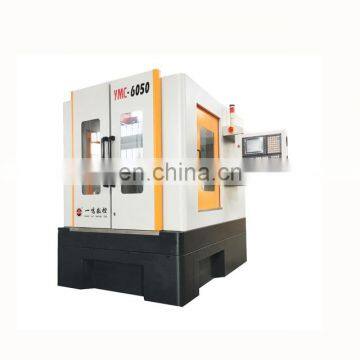

China Hot Sale Gantry type YMC-6050 4 axis CNC Engraving Milling Machine With ATC and 4th axis cnc rotary table
4 axis CNC Engraving Milling Machine

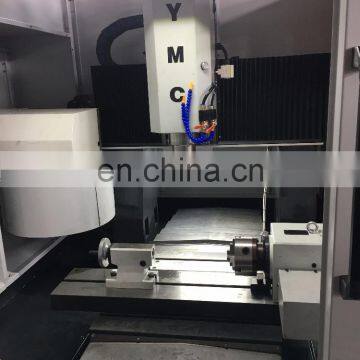

4 axis CNC With 4th axis cnc rotary table
What is the Specifications of CNC Milling Machine Center YMC-6050 ?
| Items | Unit | YMC-4535 | YMC-5040 | YMC-6050 | YMC-7060 | YMC-8070 | YMC-1080B | YMC-1210 |
| X/Y/Z Travel | mm | 350×450×150 | 500×400×170 | 500×600×230 | 600×700×270 | 700×800×300 | 850×1000×350 | 1000×1200×400 |
| Table Size | mm | 500 × 385 | 570 × 470 | 635 × 555 | 660×600 | 800×700 | 1000×795 | 1200×1000 |
| T-Slot | mm | 5-14×74 | 5-14×92 | 5-14×108 | 5-14×128 | 5-14×128 | 6-14×130 | 7-16×114 |
| Max.Loading | KG | 150 | 250 | 300 | 350 | 600 | 600 | 1500 |
| Distance between Column | mm | 450 | 450 | 660 | 730 | 860 | 950 | 1200 |
| Spindle nose to table | mm | 350 | 350 | 390 | 370 | 410 | 460 | 550 |
| Cutting feedrate | m/min | 7.5 | 6 | 6 | 6 | 6 | 6 | 10 |
| Rapid feedrate | m/min | 7.5 | 12 | 7.5 | 7.5 | X/Y:15 Z:7.5 | X/Y:15 Z:7.5 | 15 |
| Spindle motor power | KW | 1.5 | 3 | 4 | 5.5 | 5.5 | 8 | 8 |
| Max.Spindle Speed | rpm | 24000 | 24000 | 24000 | 18000 | 18000 | 15000 | 15000 |
| Spindle Taper | ER20 | ER20 | ER25 | ER32 | ER32 | ER40 | ER40 | |
| Positioning Accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Re-Positioning Accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Power requirements | KVA | 5 | 5 | 10 | 10 | 10 | 20 | 20 |
| Input Voltage | Volt | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Machine Footprint(L×W) | mm | 1500×1420 | 1560×1600 | 1800×1700 | 1950×1800 | 2300×1950 | 2600×2100 | 3090×2200 |
| Machine Height | mm | 2300 | 1900 | 2150 | 2300 | 2400 | 2400 | 2800 |
| Weight | T | 1.5 | 1.5 | 2.5 | 2.6 | 3.5 | 5.1 | 6.8 |
| CNC Controller | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 | LNC528 |
What is the Feature of CNC Milling Machine Center YMC-6050 ?
1. The Machine bode(i.e.:Base, columns, crossbeams and etc) are made of high grade cast iron,the layout of reinforcing rib plate analysis and calculated by rigid optimization,and with years of experience to set effective annealing process to eliminate residual stress, so that to keep machine accuracy stablely and effectively for a long time.
2. The machine body and column structure made by Honeycomb type casting,To improve the rigidity and long - term precision effectively.
3. Adopt advanced working machine (large size imported gantry machining center and guide rail grinding machine), achieved required process accuracy, laid a good foundation for assembly.
4. The bearings of Three axis screw rods fixed by imported high precision lock nut to ensure assembly precision.
5. Match with high speed and high precision CNC controller, standard with 8.4 -inch colorful LCD screen, Ethernet network interface, USB port, dynamic graphical simulation display, Various special Higher functions,i.e.:interpolation and others functions can meet all kinds of requirements effectively.
6. All components are verified by long-term usage, can ensure the reliability in machine long-term running.
7. Sophisticated Quality testing, with advanced three coordinate measuring instrument, imported laser interferometer, the Ballbar, on-line dynamic balancing instrument precision testing instruments, to ensure the performance of the machines we produced can meet the function and design requirements.
8. Experienced research and development team, breakthrough old ways of thinking, assist customers to achieve various special needs.
9. Experienced and warm-hearted service team, can effectively ensure the best working condition for the user's machine.
Why choose Maxtors CNC?
- China Famous Brand
- International Standard inspection
- Professional teams of 20+years CNC Machines manufacturing and 10+years International trading.
- One step Solutions for machining.
What is more information of Maxtors CNC?
Maxtors CNC Founded in 1996, is located in Ningbo south coastal new region,Ninghai County. Now owning two High-quality brands “Yiming CNC” and “Maxtors Precision Machine”. Cover an area of 12,000 square meters, Has production base of producing more than 1,500 sets CNC machines per year, Mainly R & D and produce gantry machining center, mold high-speed milling machine, CNC engraving and milling machine, vertical machining center,drilling and tapping center, ceramic engraving machine and graphite machining machine and so on. Since 2013, started to develop and produce 5-axis simultaneous machining centers, 5-axis (3+2) machining centers, maintains long-term exchanges and cooperation with FANUC, Siemens, Heidenhain and others Machines CNC Controller & components suppliers. The 5-axis machining centers we produced are widely used in manufacturing of mold,aerospace, Ships and boats,and other fields, widely praised by customers at home and abroad.
How does Maxtors CNC to ensure the Quality?
ADVANCED FINE MACHINING+CAREFUL INSPECTION
Quality Assurance
Before Leaving the plant,all Our CNC Machine is subjected to more than 100 quality-assurance test,These tests provide a certified paper trail of quality for every component throgh out the entire assembly process.After assembly all Our CNC Machines are tested for 24 hours of actual running time to assure quality is built into every machine we make,Our assurance of quality follows every machine from the shipping from our plant,to the arrival and installation at yours.
Send Inquiry Here to get a Free ONE STEP Solution for your workpieces machining!
How about Maxtors Capacity?
If can meet MAXTORS CNC at Trade Shows?
Sure, we will attend all kinds of big Trade Shows all over the world.
CUSTOMERS AROUND THE WORLD
Want to talk with Maxtors about the details.
Packing & Shipping
What Packing & and Shipping of MARTORS?
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, HEIDENHAIN,LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 20 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films. Others packing methods also available.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
If you still have any more FAQ, Please feel free to contact us directly.
How to contact us ?
Send your Inquiry Details in the Below , Click "Send" Now !
