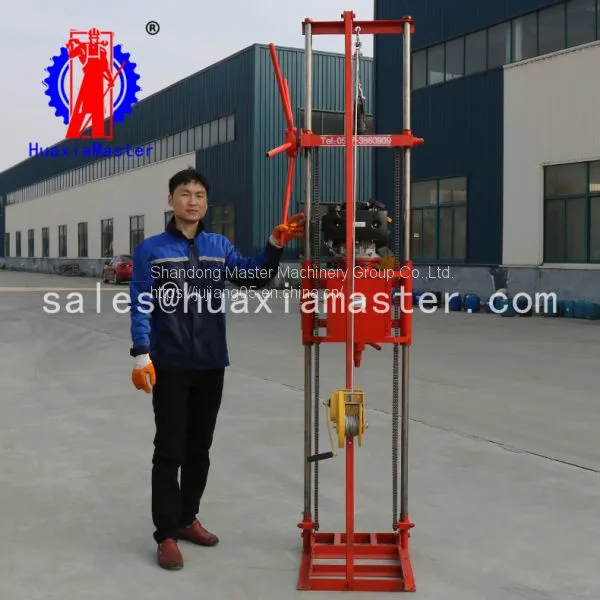

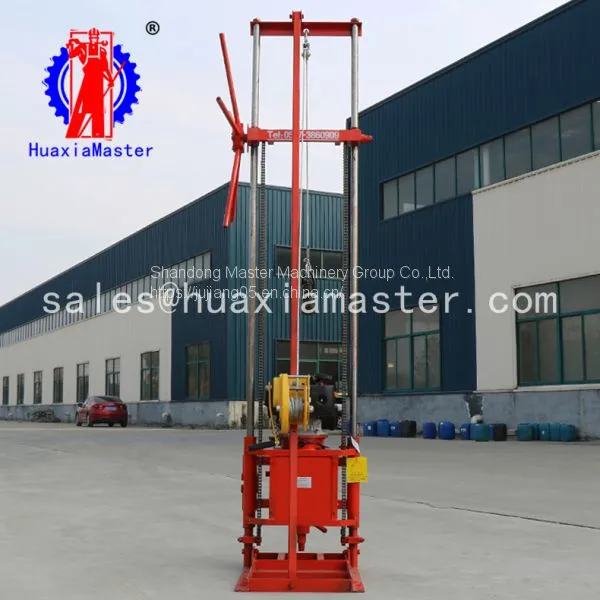

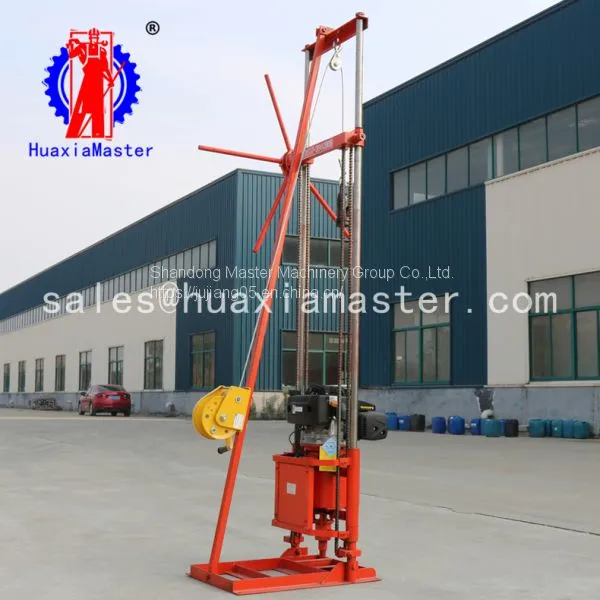

Help CenterIn Stock QZ-2CS Gasoline Engine Sampling Drilling Rig Core Drilling Machine for Sale
Related Products
-
In Stock QZ-2D Three Phase Electric Sampling Drilling Rig Exploration Drilling MachineUS$ 1000 - 1200MOQ: 1 Set -
In Stock QZ-2DS Three Phase Electric Sampling Drilling Rig Core Drilling Machine for SaleUS$ 1000 - 1200MOQ: 1 Set
-
In Stock QZ-3 Diesel Engine Sampling Drilling Rig Spr Machine for SaleUS$ 1000 - 1200MOQ: 1 Set
-
In Stock YQZ-30 Hydraulic Core Drilling Rig Exploration Drilling Rig for SaleUS$ 1000 - 1200MOQ: 1 Set
-
In Stock YQZ-50B Hydraulic Core Drilling Rig Exploration Drilling Rig for SaleUS$ 1000 - 1200MOQ: 1 Set
1. Brief introductions of QZ-2CS gasoline engine sampling drilling rig
QZ-2CS gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2CS gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Specifications of QZ-2CS gasoline engine sampling drilling rig
QZ-2CS gasoline engine sampling drilling rig | ||
End hole diameter (mm) |
32-91 |
|
|
Drilling depth（m） |
soil φ91：10-15m stoneφ91：5-10m stoneφ75：10-15m stoneφ60：15-20m stoneφ46：20-30m |
|
Drilling pipe diameter(mm) |
30 |
|
Gasoline engine |
horse power(hp） |
6(4.5kw) |
displacement（cc） |
224 |
|
Dimension（l*w*h） |
600*450*1900 |
|
Weight（kg） |
95 |
|
3. Configuration list of QZ-2CS gasoline engine sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
Gasoline engine sampling drilling rig |
QZ-2CS |
set |
1 |
Drilling pipe |
30*1500 |
pc |
6 |
Drilling pipe |
30*800 |
pc |
14 |
Pipe joint |
38 |
pc |
20 |
Reducing nipple |
58/38 |
pc |
2 |
Core barrel |
58*800 |
pc |
1 |
Core barrel |
58*1500 |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |
Reducing nipple |
73/38 |
pc |
2 |
Core barrel |
73*800 |
pc |
1 |
Alloy bit |
75 |
pc |
1 |
Diamond bit |
75 |
pc |
1 |
Three-wing bit |
75 |
pc |
1 |
Safety clamp |
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
Oil seal |
30*50*10 |
pc |
1 |
Pipe wrench |
18 |
pc |
2 |
Monkey wrench |
pc |
1 |
|
Shaft snap ring clamp |
pc |
1 |
|
Hole snap ring clamp |
pc |
1 |
|
Clamp |
pc |
1 |
|
Cross screwdriver |
pc |
1 |
|
Hex wrench |
pc |
1 |
|
Control wheel |
pc |
1 |
Send Inquiry to This Supplier
