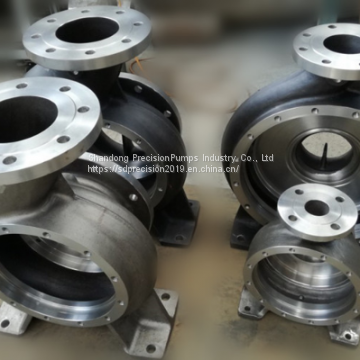

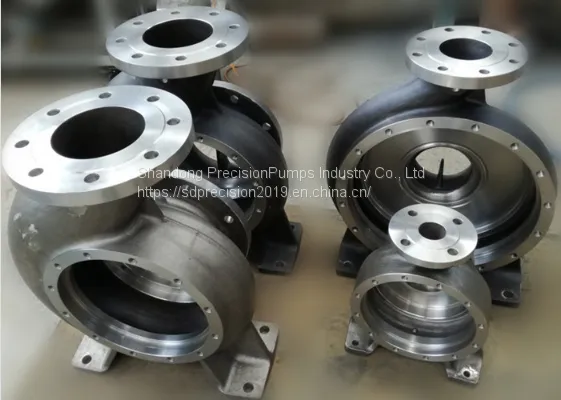

ANSI process pump parts casing interchangeable with Goulds 3196 series products
We supply
1. ANSI process pump replacement/ spare parts, 100% interchangeable with series of Goulds 3196, Griswold 811, Peerless 8196, Summit 2196.
2. ANSI pump parts 100% interchangeable with series of Durco Mark III, Summit Clark III.

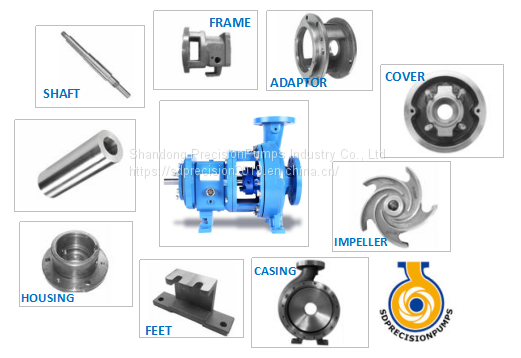

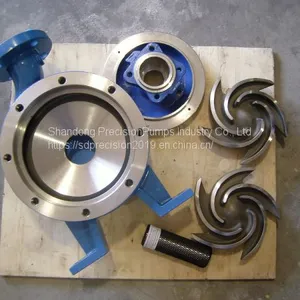

3. Pump parts include impeller, casing, cover, frames, bearing housing, adaptor, shaft & sleeves, feet.
4. Material of CD4M, CF8M, Cast steel, Titanium, Nickel, Hastelloy C or other material as you require.
5. ISO 5199 standard complete pumps.
We support
1. OEM according to your drawing or samples.
2. Design, R & D new pump products based on your requirements.
3. Update your current pump products.
4. Technical support
Details of Precision Goulds 3196 casing
Model |
Precision Code |
OEM code |
Material |
1x1.5-6 |
G1A01 |
104554 |
CF8M |
CD4M | |||
Cast Steel | |||
1.5x3-6 |
G1B01 |
104555 |
CF8M |
CD4M | |||
Cast Steel | |||
2x3-6 |
G1C01 |
105204 |
CF8M |
CD4M | |||
Cast Steel | |||
1x1.5-8 |
G1D01 |
104556 |
CF8M |
CD4M | |||
Cast Steel | |||
1.5x3-8 |
G1E01 |
104557 |
CF8M |
CD4M | |||
Cast Steel | |||
2x3-8 |
G2F01 |
24741 |
CF8M |
CD4M | |||
Cast Steel | |||
3X4-8 |
G2G01 |
24743 |
CF8M |
CD4M | |||
Cast Steel | |||
3X4-8G |
G2GG01 |
24745 |
CF8M |
CD4M | |||
Cast Steel | |||
1X2-10 |
G2H01 |
104878 |
CF8M |
CD4M | |||
Cast Steel | |||
1.5X3-10 |
G2J01 |
24960 |
CF8M |
CD4M | |||
Cast Steel | |||
2X3-10 |
G2L01 |
24961 |
CF8M |
CD4M | |||
Cast Steel | |||
3X4-10 |
G2N01 |
24962 |
CF8M |
CD4M | |||
Cast Steel | |||
3X4-10H |
G2P01 |
D00452A02 |
CF8M |
CD4M | |||
Cast Steel | |||
4X6-10 |
G2Q01 |
25189 |
CF8M |
CD4M | |||
Cast Steel | |||
4X6-10H |
G2R01 |
D03123A |
CF8M |
CD4M | |||
Cast Steel | |||
1.5X3-13 |
G2S01 |
24963 |
CF8M |
CD4M | |||
Cast Steel | |||
2X3-13 |
G2T01 |
D02450A |
CF8M |
CD4M | |||
Cast Steel | |||
3X4-13 |
G2U01 |
24965 |
CF8M |
CD4M | |||
Cast Steel | |||
4X6-13 |
G2W01 |
D04930A |
CF8M |
CD4M | |||
Cast Steel | |||
6X8-13 |
G3A01
|
25450 |
CF8M |
CD4M | |||
Cast Steel | |||
8X10-13 |
G3B01 |
D02488A02 |
CF8M |
CD4M | |||
Cast Steel | |||
6X8-15 |
G3C01 |
25494 |
CF8M |
CD4M | |||
Cast Steel | |||
8X10-15 |
G3D01 |
2555 |
CF8M |
CD4M | |||
Cast Steel | |||
8X10-15G |
G3E01 |
25665 |
CF8M |
CD4M | |||
Cast Steel |
