ANSI process pump parts interchangeability CD4M Goulds 3196 series pump impeller
We supply
1. ANSI process pump replacement/ spare parts, 100% interchangeable with series of Goulds 3196, Griswold 811, Peerless 8196, Summit 2196.
2. ANSI pump parts 100% interchangeable with series of Durco Mark III, Summit Clark III.

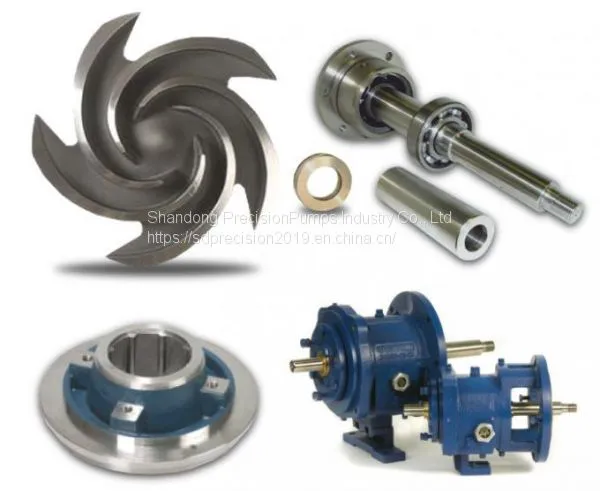

3. Pump parts include impeller, casing, cover, frames, bearing housing, adaptor, shaft & sleeves, feet.
4. Material of CD4M, CF8M, Cast steel, Titanium, Nickel, Hastelloy C or other material as you require.
5. ISO 5199 standard complete pumps.
Details of Precision Goulds 3196 impeller
Size |
Precision code |
OEM code |
Material |
1x1.5-6 |
G1A03 |
76781 |
CF8M |
CD4M | |||
1.5x3-6 |
G1B03 |
76792 |
CF8M |
CD4M | |||
2x3-6 |
G1C03 |
0B10176 |
CF8M |
CD4M | |||
1x1.5-8 |
G1D03 |
76793 |
CF8M |
CD4M | |||
1.5x3-8 |
G1E03 |
76794 |
CF8M |
CD4M | |||
2x3-8 |
G2F03 |
100161 |
CF8M |
CD4M | |||
3X4-8 |
G2G03 |
100163 |
CF8M |
CD4M | |||
3X4-8G |
G2GG03 |
100165 |
CF8M |
CD4M | |||

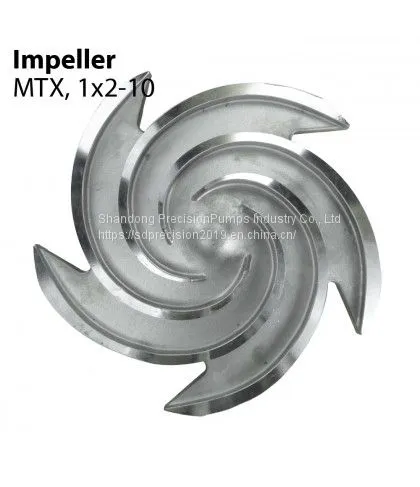

1X2-10 |
G2H03 |
0B10009 |
CF8M |
CD4M | |||
1.5X3-10 |
G2J03 |
100593 |
CF8M |
CD4M | |||
2X3-10 |
G2L03 |
100595 |
CF8M |
CD4M | |||
3X4-10 |
G2N03 |
100597 |
CF8M |
CD4M | |||
3X4-10H |
G2P03 |
0C00262A02 |
CF8M |
CD4M | |||
4X6-10 |
G2Q03 |
101528 |
CF8M |
CD4M | |||

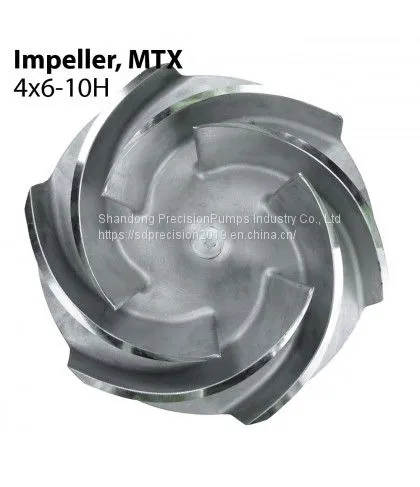

4X6-10H |
G2R03 |
0C02521A |
CF8M |
CD4M | |||

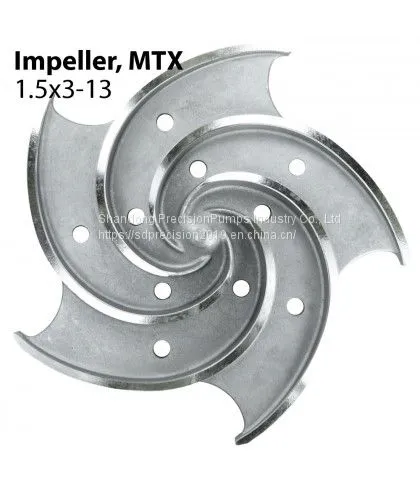

1.5X3-13 |
G2S03 |
100537 |
CF8M |
CD4M | |||
2X3-13 |
G2T03 |
100539 |
CF8M |
CD4M | |||
3X4-13 |
G2U03 |
0B10542 |
CF8M |
CD4M | |||
4X6-13 |
G2W03 |
101500 |
CF8M |
CD4M | |||
6X8-13 |
G3A03 |
103609 |
CF8M |
CD4M | |||
8X10-13 |
G3B03 |
0D02490A02 |
CF8M |
CD4M | |||
6X8-15 |
G3C03 |
256116 |
CF8M |
CD4M | |||
8X10-15G |
G3E03 |
256122 |
CF8M |
CD4M |

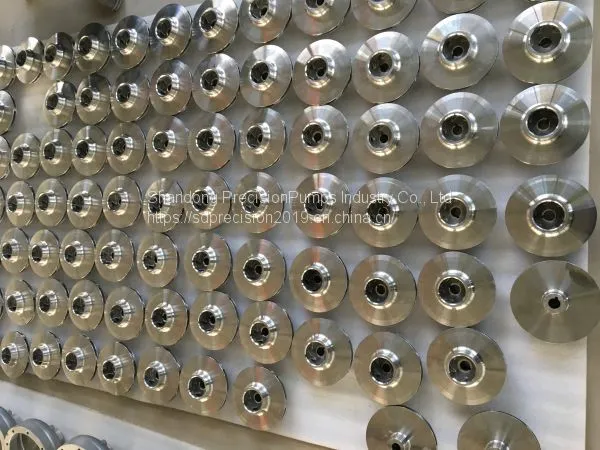

Photos
We support
1. OEM according to your drawing or samples.
2. Design, R & D new pump products based on your requirements.
3. Update your current pump products.
4. Technical support
