Help CenterFactory Direct Supply Manual 100 Ton Horizontal Hydraulic Press Machine in Factory
Related Products
-
2016 Trending Products 2.2-30KW Hydraulic Oil Press Machine 50 TonUS$ 1900.00 - 2000.00MOQ: 1 Set -
2016 Trending Products Steel Horse Hydraulic Press 400 Ton in ChinaUS$ 1900.00 - 2000.00MOQ: 1 Set
-
Gantry Type Hydraulic Press Machine 20/40/50/60/80/100/200 Ton Effect AssuranceUS$ 1,900 - 2,000MOQ: 1 Set
-
Single Column Electric Small Hydraulic Press Mini Machine Price 250 TonUS$ 1900.00 - 2000.00MOQ: 1 Set
-
2016 Trending Products 2.2-30KW Hydraulic Press 200 Ton With Low PriceUS$ 1,900 - 2,000MOQ: 1 Set
1.It is applied to suppression of shaping material,such as blanking (optional buffer device),bending,stretching thin flanging and cold extrusion also be engaged in correction, pressing.
ure molding of plastic products, insulation material,grinding material and powder products.
Feature

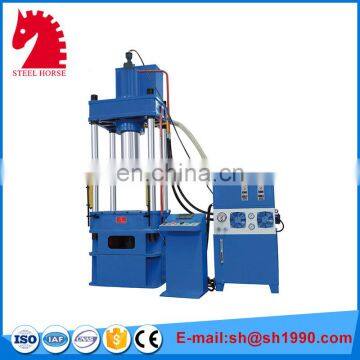

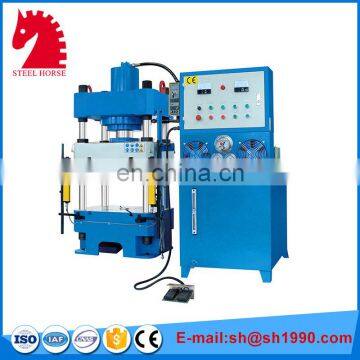

1. computer optimized structure design,three beam and four pillar structure, simple,econimical and practical.
2. Hydraulic control system adopt cartridge valve intergrated system,reliable,long life and small hydraulic impact,reducing the link pipe and leak points.
3. Independent electrical controlling ing reliable,easy maintanance.
4. Adopt thr button centralized control,with adjustment for manual and semi-automatic operation.
5. Through operator panel to choose from,can be achieved given away two constant pressure forming process,and have features such as security during rolling.
6. Slider working pressure load and slow down quickly work into the travel range can be adjusted according to process requirments.
OPTIONAL INSTALLATION
1. Blanking damping installation
2. screen safety protection device
3. Touch display screen in industrial
4. Rapid clamp mold installation
5. Floating guideway and rolling bracket for changing mold
6. Slider locking installation
7. Removable table
8. Oil cooling installation
9. Ramming installtion
| MODEL | YQ32-63 | YQ32-100 | YQ32-150 | YQ32-200 | YQ32-250 | YQ32-250K | YQ32-315 | YQ32-315A | YQ32-400 | YQ32-500A | ||
| Nominal pressure | kn | 630 | 1000 | 1500 | 2000 | 2500 | 2500 | 3150 | 3150 | 4000 | 5000 | |
| Slide stroke | mm | 260 | 300 | 300 | 350 | 350 | 350 | 400 | 600 | 600 | 600 | |
| Opening height | mm | 500 | 500 | 550 | 600 | 600 | 600 | 650 | 1000 | 1000 | 1200 | |
| speed | Down link | Mm/s | / | / | / | / | / | 80 | / | 90 | 100 | 100 |
| Work | 12 | 18 | 15 | 10 | 16 | 42598 | 16 | 42502 | 42470 | 42566 | ||
| return | 20 | 30 | 20 | 20 | 40 | 40 | 40 | 60 | 70 | 80 | ||
|
Table effective size |
Left right | mm | 520 | 640 | 640 | 630 | 700 | 700 | 700 | 1000 | 800 | 1400 |
| Front back | mm | 520 | 550 | 550 | 650 | 650 | 650 | 700 | 1000 | 800 | 1400 | |
| Motor power | kw | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 | 15 | 15 | 30 | |
