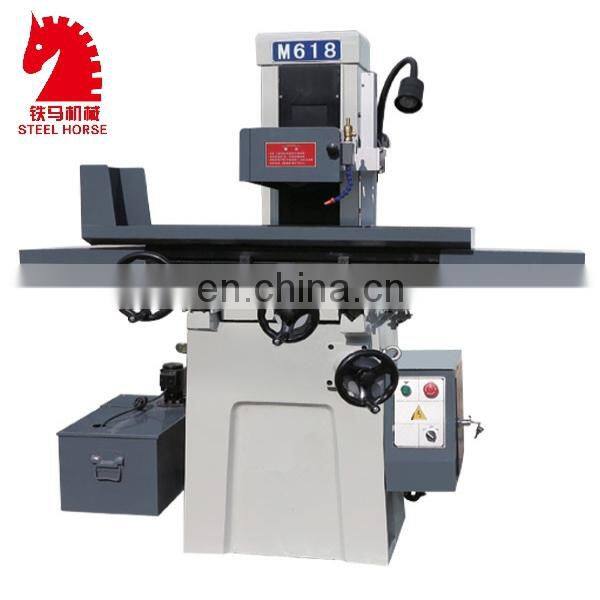

M618 easy model vertical spindle surface grinder
Alitalk:chinamachinetool
Skype:trade.chating
This machine can grind various complex plane and formed surfaces,do not need to apply to
motor feed grinding,precision class P4 spindle bearings,labyrinth seal,waterproof and dustproof
performance,smooth motion,high accuracy.Longitudinal using steel ball rail,light and flexible,
column-shaped rail with large span,steel,and high stability.Centralized lubrication machine with
manual pumps.
Technical Specifications | |||||||
Table |
Table size |
mm |
150×450 |
||||
Table cross travel |
mm |
178 |
|||||
Table Longitudinal travel |
mm |
483 |
|||||
T-slot |
mm |
1×14 |
|||||
Grinding |
Distance From Table Surface To Spindle Center
|
mm |
360 |
||||
|
Vertical feed hand wheel Feed
|
mm |
1.25 |
|||||
mm |
0.01 |
||||||
|
Cross Feed On Handwheel
|
mm |
2.5 |
|||||
mm |
0.01 |
||||||
Wheel shaft speed |
r/min |
2850 |
|||||
|
Wheel Size (dia.×width×bore )
|
mm |
Φ180×13×Φ31.75/32 |
|||||
Working accuracy |
Surface machining plane parallel to the base |
mm |
300:0.005 |
||||
Surface roughness |
μm |
Ra0.32 |
|||||
Machine weight |
NW |
kg |
680 |
||||
GW |
kg |
730 |
|||||
Motor power |
kw |
1.14 |
|||||
Grinding motor power |
kw |
1.1 |
|||||
Machine size |
mm |
1550×1100×1680 |
|||||
Carton size |
mm |
1200×1100×1800 |
|||||
Package List
Wooden case
Ship Date
1.By sea.within 30 days after receive remittance
2.By air.within 6 days after receive remittance
Price Terms : FOB Qingdao,Shanghai,ningbo,Guangzhou
Payment Terms : T/T or L/C Western Union
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
Colour Machine:Many color
