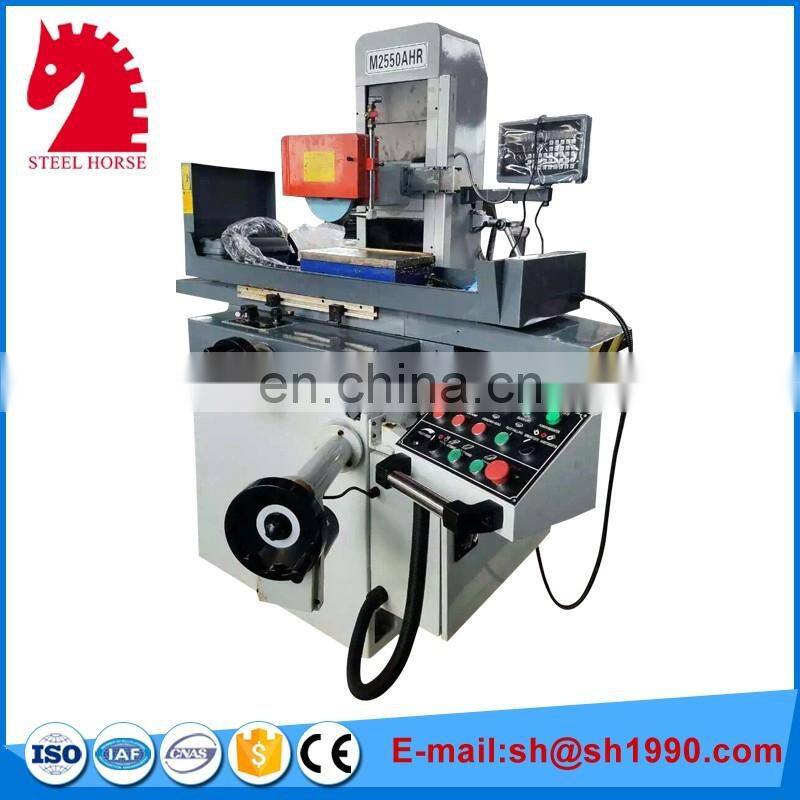

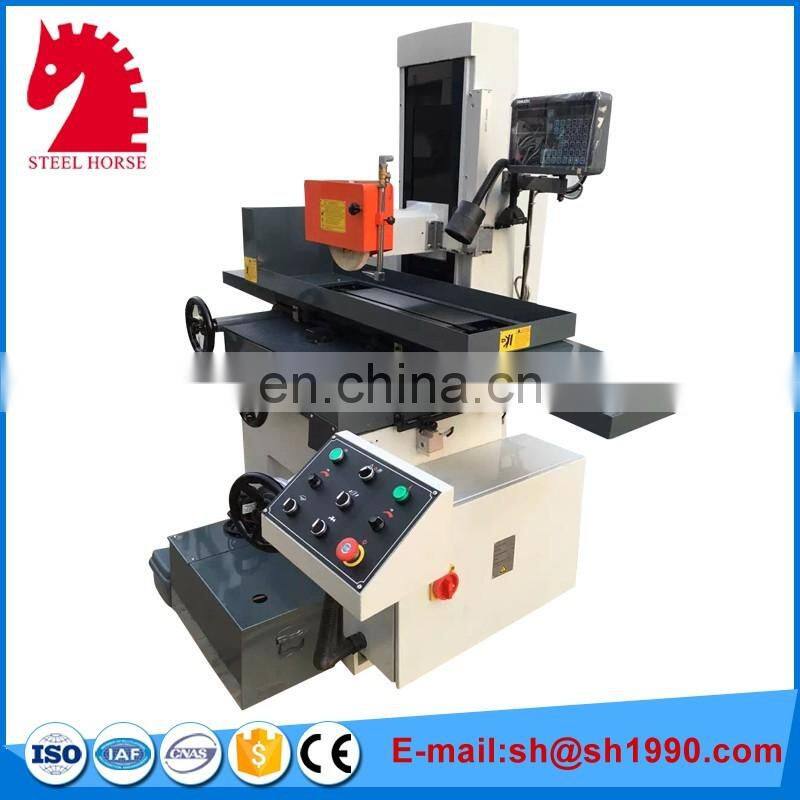

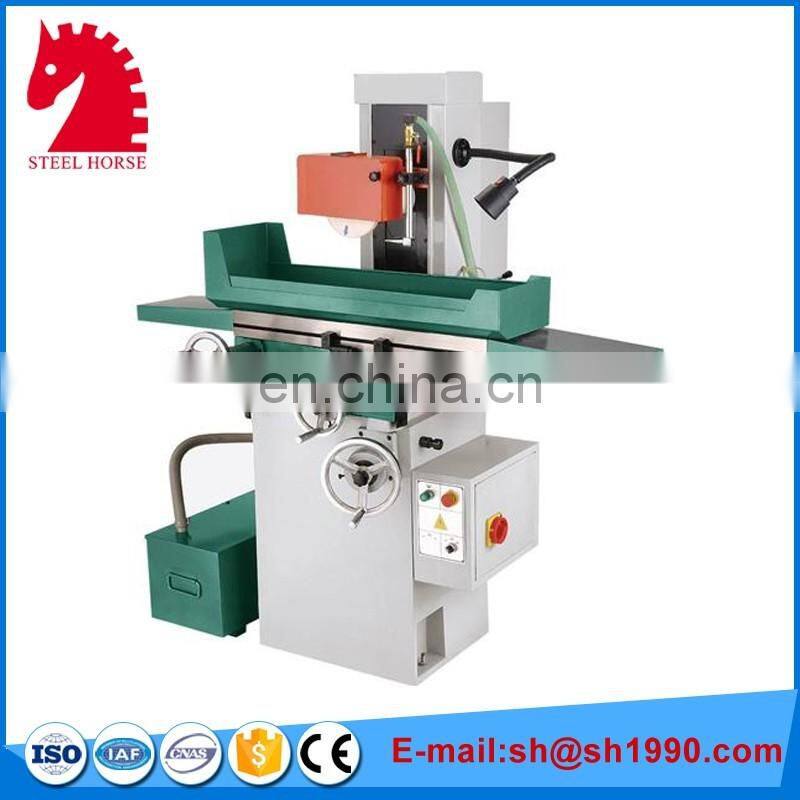

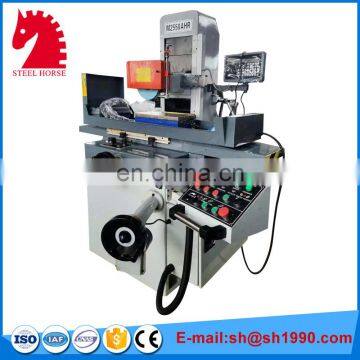

surface grinding machine
This machine can grind various complex plane and formed surfaces,do not need to apply to motor feed grinding,precision class P4 spindle bearings,labyrinth seal,waterproof and dustproof performance,smooth motion,high accuracy.Longitudinal using steel ball rail,light and flexible, column-shaped rail with large span,steel,and high stability.Centralized lubrication machine with manual pumps.
Standard features:
* 3 – axis manual operation
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 vides quiet,vibration free operation for better workpiece accuracy.

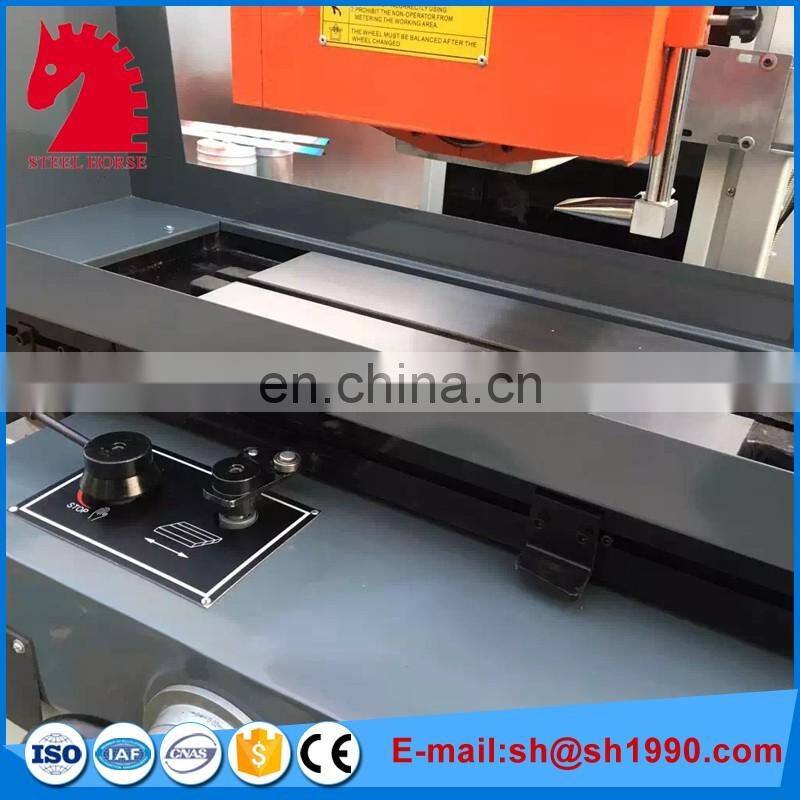

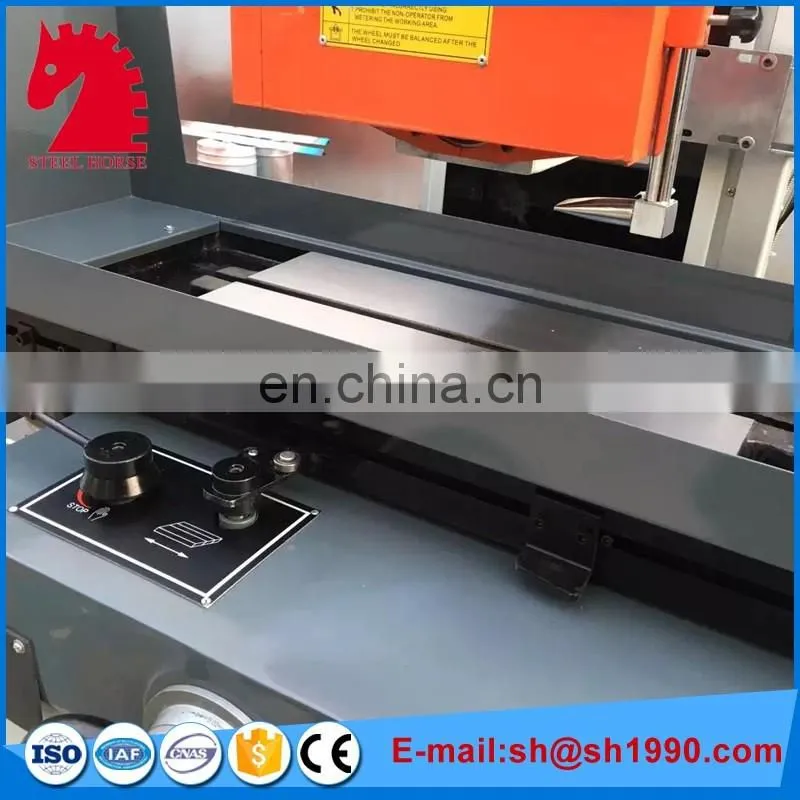

* M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and “V+Flat” shape saddle ways for rigidity.

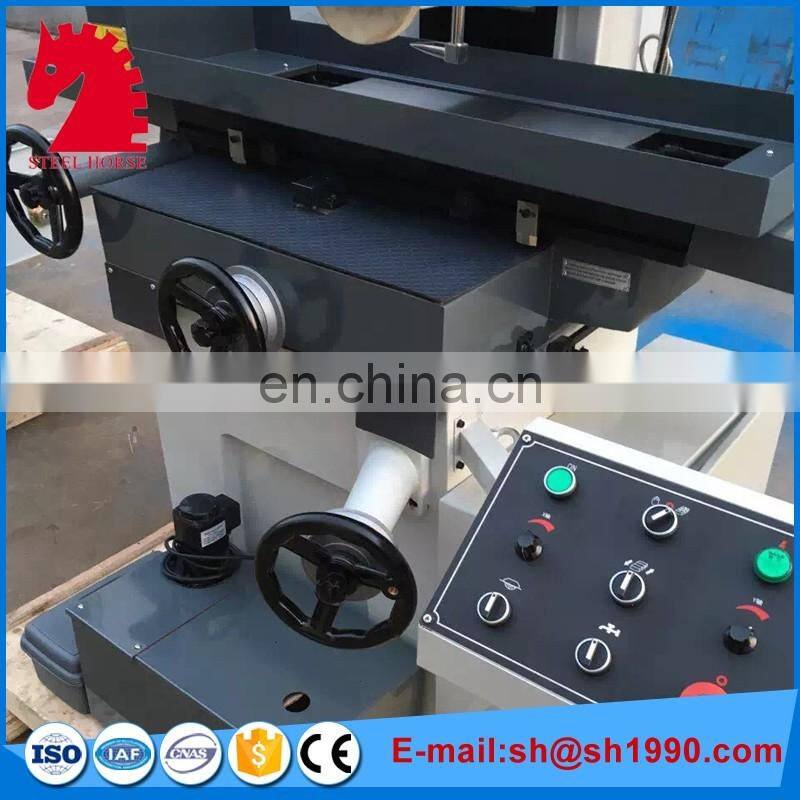

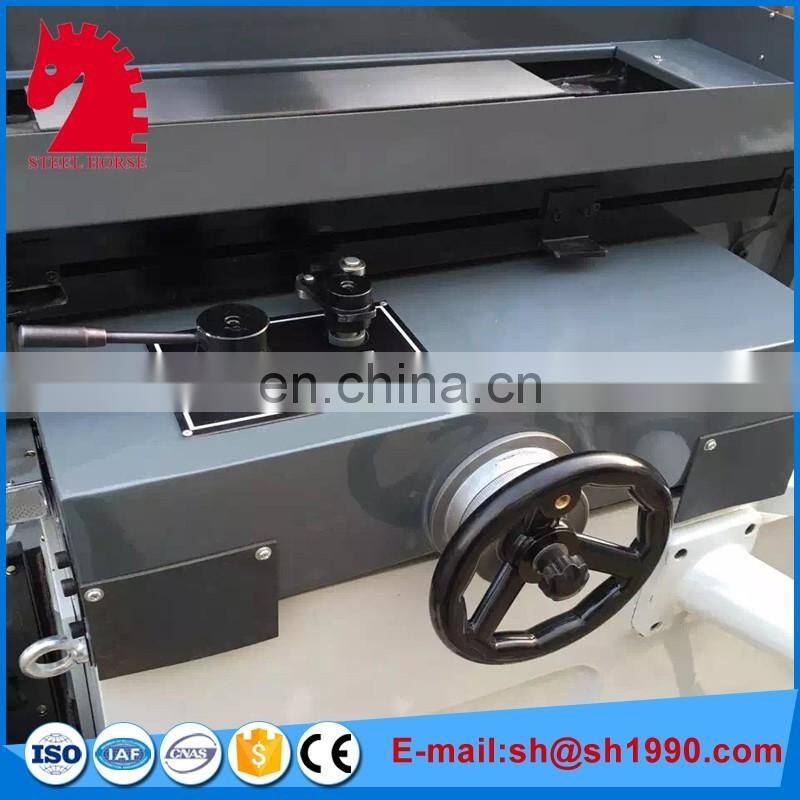

* Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.
* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
Technical Parameters |
Units |
M618/MD618/MY618 |
||
piece to be Ground |
mm |
500×190×335 |
500×190×335 |
|
Max. Grinding Length |
mm |
500 |
500 |
|
Max. Grinding Width |
mm |
190 |
190 |
|
Distance From Table Surface To Spindle Center |
mm |
335 |
335 |
|
Slide way |
|
V-type rail with Steel-ball |
V-type rail with Steel-ball |
|
V-type rail with Steel-ball |
Kg |
200 |
200 |
|
Table Size (L×W) |
mm |
460×180 |
460×180 |
|
Number of T -Slot |
mm×n |
14×1 |
14×1 |
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
|
Wheel Size (dia.×width×bore ) |
mm |
200×16×31.75 |
200×16×31.75 |
|
Spindle Speeds |
50Hz |
rpm |
2850 |
2850 |
|
0-6000 |
30-6000 |
||
Spindle Motor |
Kw |
1.1 |
1.1 |
|
Coolant Pump |
Kw |
0.4 |
0.4 |
|
Minimum of Numerical Display |
mm |
|
0.001-0.005 |
|
Machine Size (L×W×H) |
mm |
1550×1060×1590 |
1550×1060×1590 |
|
Packing Size (L×W×H) |
mm |
1060×1170×1870 |
1060×1170×1870 |
|
Gross,Net |
T |
0.75, 0.65 |
0.80, 0.75 |
|
| Steel horse surface grinder machine,More professional quality in China | |||
| “D” is Electric table auto feed””Y’ is Hydraulic table auto feed | |||
| Table size(mm) | Main motor(kw) | ||
| 618 | M618 | 460*180 | 1.1 |
| MD618 | |||
| MY618 | |||
| 820 | 820 | 480*200 | 1.5 |
| MD820 | |||
| MY820 | |||
| 1022 | M1022 | 540*250 | 1.5 |
| MD1022 | |||
| MY1022 | |||
| MY1224 | 600*300 | 2.2 | |
| MY1230 | 700*320 | 4 | |
| MY4080 | 800*400 | 5.5 | |
| MY40100 | 1000*400 | 5.5 | |
| M7140 | 1000*400 | 7.5 | |
| M7150 | 1250*500 | 7.5 | |
| M7160 | 1250*600 | 7.5 | |
