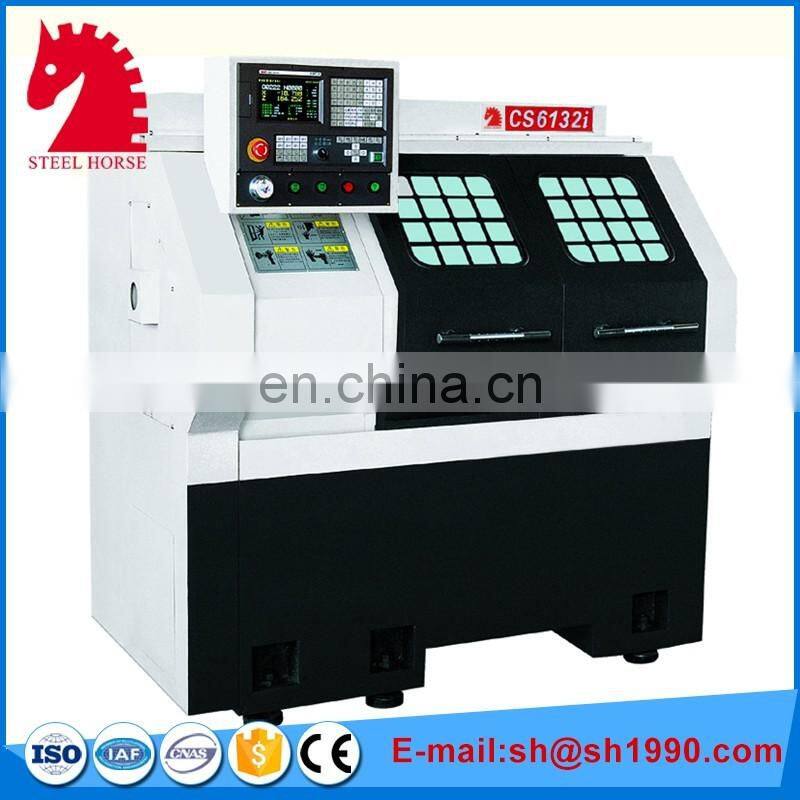

CK6132 Educational MINI CNC Lathe Machine

FOB Price

USD $9,000 - $16,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Steel horse	Place of Origin:	Shandong, China	Model Number:	CK6132
After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Product Description

CK6132 Educational MINI CNC Lathe Machine

main features are as follows:

1.Backward curved chip mode,guide the use of ultra-frequency hardening,and thus the machine has good rigidity,accuracy and precision of retention.

2.Uniaxial structure headstock with frequency control,ensuring a high-speed spindle,high precision.

3.Manual two tranches of structured headstock spindle using three-point support, stalls inside stepless spindle ensures rigidity and high speed, high torque cutting.

4.Double door protection, waterproof performance is good, the work area motors and switches have a reliable protection for coolant under wet cutting operational requirements.

5.Mature product structure, excellent performance, reasonable price and high market share.

ITEMS	Specifications
Max. swim over bed	320mm
Max. swim over carriage	150mm
Max. length of work piece	450mm
Range of spindle speed	100-2500rpm
Spindle bore	40mm
Taper of spindle bore	MT5
Stations of tool carrier	4/6/or gang-type tool carrier
Min. setting unit of motor	(Z) long 0.001mm,(X) cross0.001mm
Moving speed of post	(Z) long 8 m/min,(X) cross 4m/min
Taper of tailstock quill	MT3
Max. range of tailstock quill	100mm
Motor power	4KW
Packing size(length width height)	1820 mm 1100 mm 1550mm
Net weight	1100kg

standard accessories:

plete coolant system for ready use

plete lubrication system for ready use

3. advanced LED work light

4. 8" hydraulic chuck

5. hydraulic tailstock

6. 8 tool hydraulic turret

7. tool box and tools

optional accessories

1. automatic feeding device for long bar work piece, to improve working efficiency, save material and incease profit

2. chip conveyor

3. robotic arm, manipulator

Product standard configuration:

No.	Name	Number	Standard configuration
1	Numerical control system	1/set	Optional system (gd980, Taiwan, FANUC, Siemens) etc.
2	Chuck	1/set	Three jaw chuck K11 320 (optional K11 380)
3	Tailstock	1/set	Manual tail base

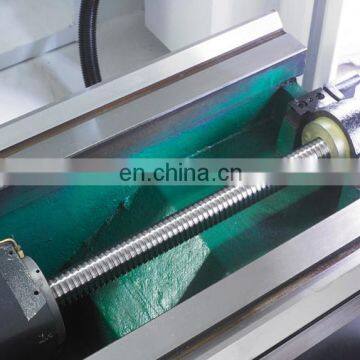

4	X -ball screw	1/set	PRC
5	Z -ball screw	1/set	PRC

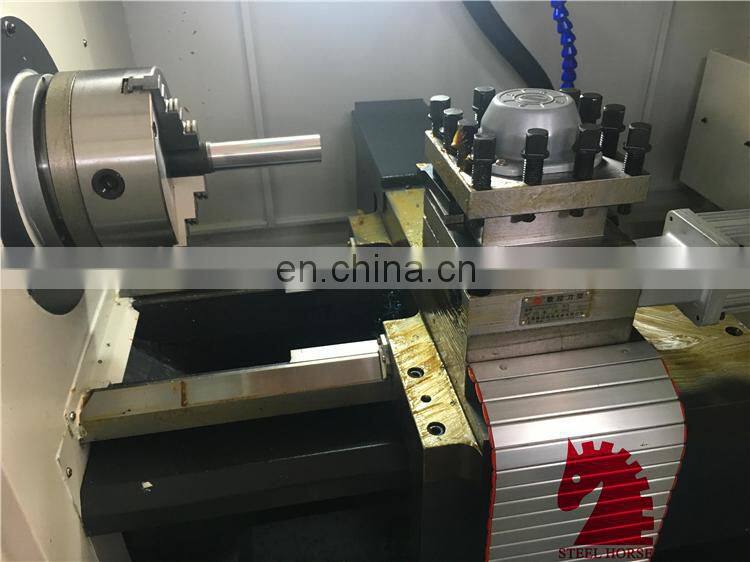

6	Electric turret	1/set	LD4B-A(6163)
7	X,Z-Lead screw bearing	1/set	PRC
8	X,Z- Coupling	1/set	PRC
9	Spindle bearing	1/set	PRC

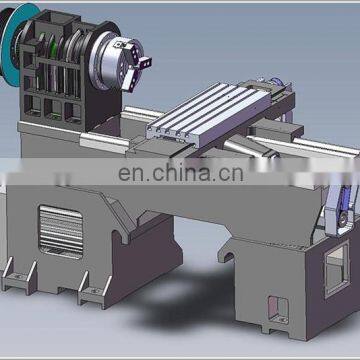

10	Fuselage Casting	1/set	High quality resin sand casting
11	Spindle assembly	1/set	Assembly spindle
12	Spindle clamping		Manual chuck
13	Paint	1/set	Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14	Lubrication	1/set	Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)

Product select configuration:

1. GSK980,FANUC or SIEMENS CNC controller

2. Pneumatic chuck, hydraulic chuck

3. 6 or 8 positions tool post

4. pneumatic tailstock, hydraulic tailstock

5. Spring fastener

6.auto feeder

7. Other(From Dear client needs)
