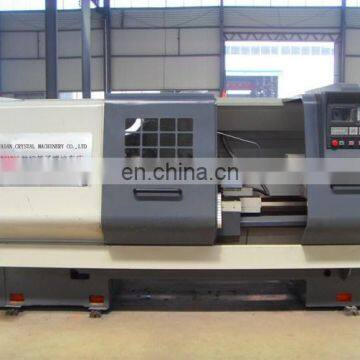

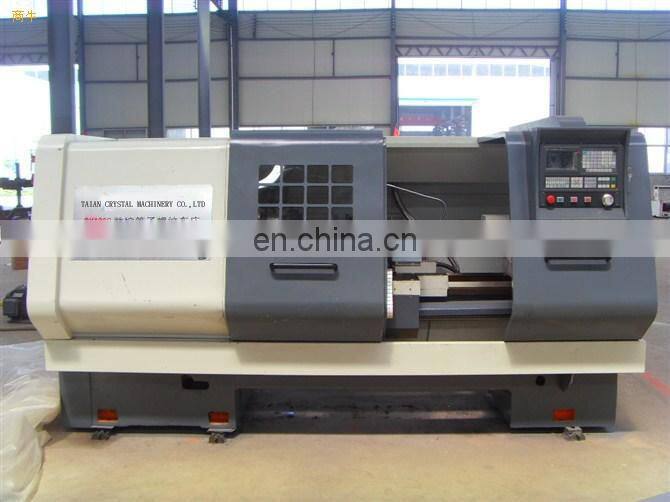

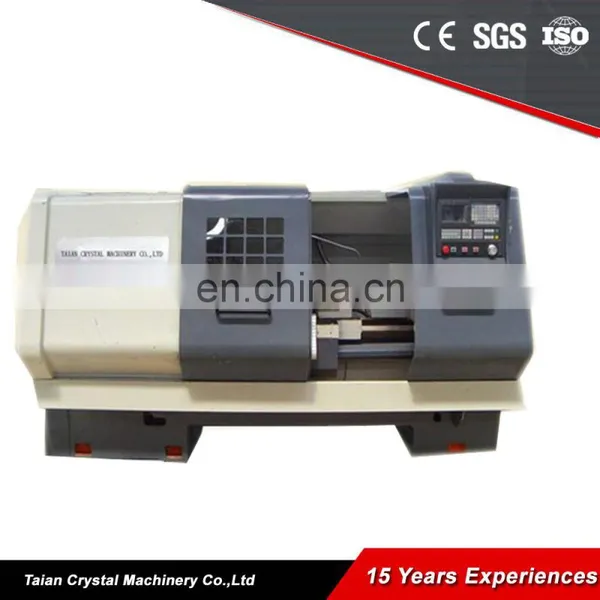

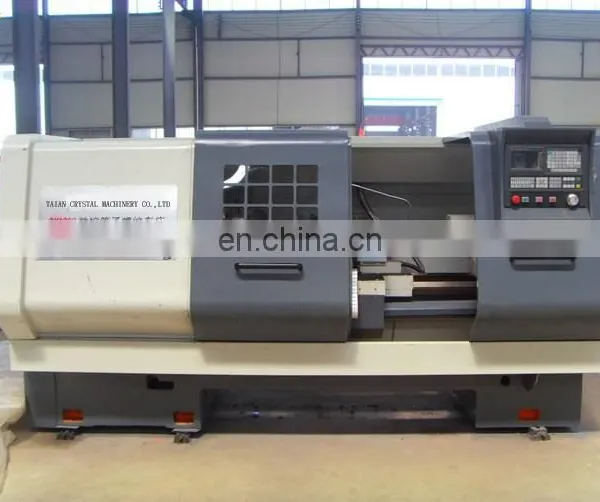

Help CenterQK1327 Cnc Screw Lathe Pipe Threading Machine
Related Products
-
QK1327 Cnc Pipe Thread Cutting MachineUS$ 51,000 - 51,000MOQ: 1 -
Screw Making Pipe Threading Lathe Cnc & Manual Torno QK1313US$ 8,000 - 50,000MOQ: 1 Set
-
Automatic Metal Pipe Threading Cutting Machine QK1313US$ 19490.00 - 15.00MOQ: 1 Set
-
1000 Height Lathe QK1313 Pipe Threading Machine Tool Cnc & Manual TornoUS$ 8,000 - 50,000MOQ: 1 Set
-
Cnc Oil Field Lathes Pipe Threading Lathe CQK1322US$ 33,490 - 33,490MOQ: 1

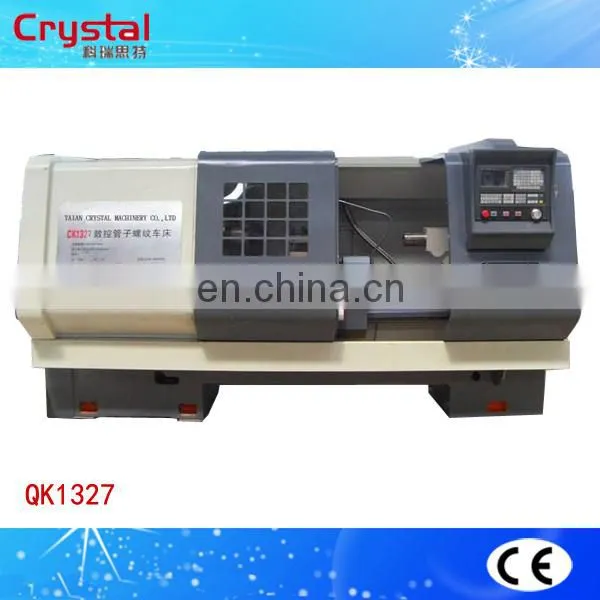

QK1327 SPECIFICATIONS
Size of the lathe | ||||
Length 3600mm |
Width 1750mm |
|||
Height 1900mm |
Weight 5500kg |
|||
Main specification | ||||
Max. swing diameter over bed 1000mm |
Max. outer diameter of the pipe 50-270mm |
|||
Max. length of work piece bar material 1500mm |
Max taper 1:4 |
|||
Max. length of taper ruler 1000mm | ||||
Spindle | ||||
Spindle bore 280mm |
Number of spindle speed 12 |
|||
Speed range of spindle 20-460r/min |
Distance between center of spindle to guide rail is 315mm |
|||
Carrier tool |
|
|||
Max stroke of min turret 210mm |
Size of the tool 24×24mm, 4 station |
|||
Speed of moving X/Z |
3/3 m/min |
|||
Tailstock | ||||
Diameter of center tailstock quill 100mm |
Stock of center tailstock quill250mm |
|||
Taper of center quill Morse 5 |
Horizontal moving stock of the quill ±15mm |
|||
Taper of center Morse 5 | ||||
Motor parts | ||||
Motor: Y160M-4-B3 |
Main motor 11KW 1460r/min |
|||
Characters: | ||||
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle. | ||||
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like. | ||||
3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling. | ||||
|
4, The width of the bed increased to 600mm, to increase the rigidity and strength of the base and can cut material which is strong and heavy.
| ||||

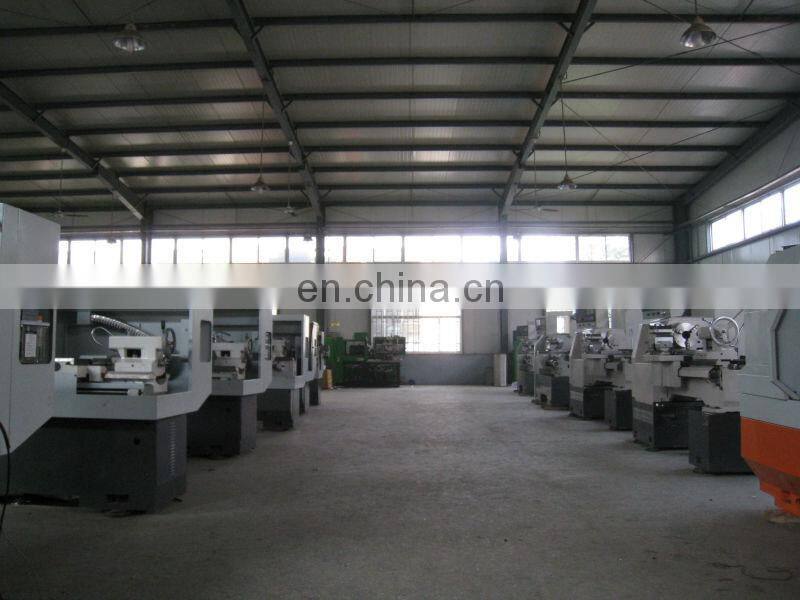

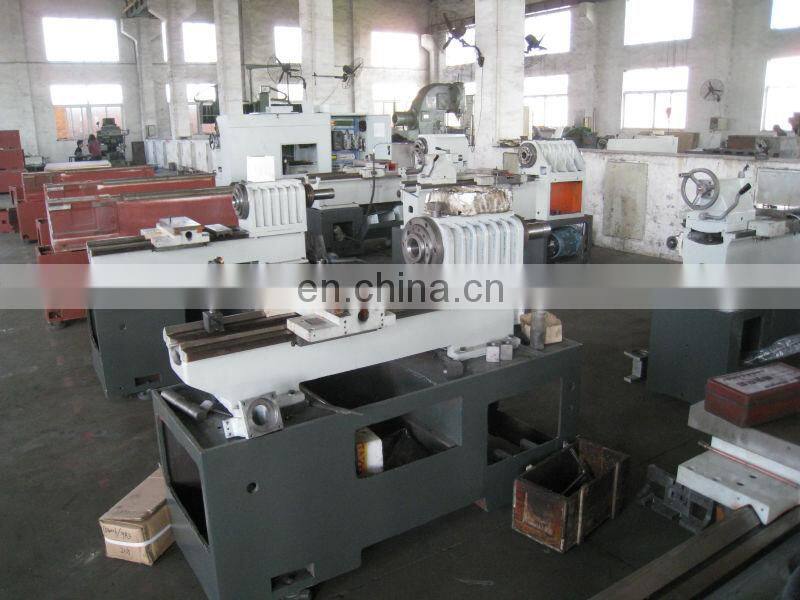

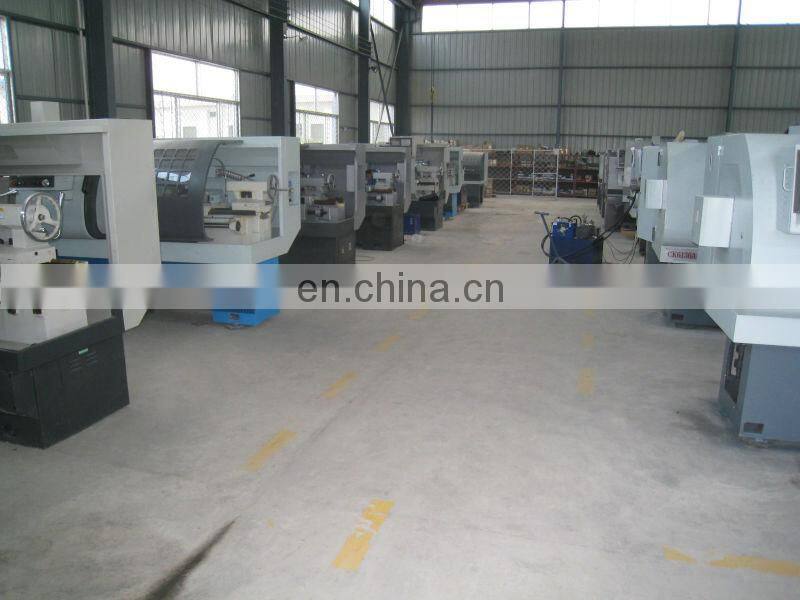

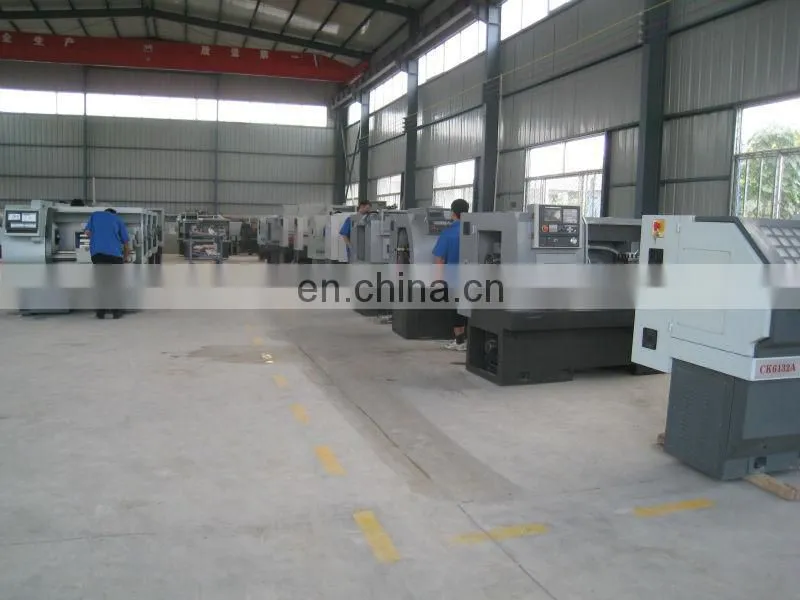

The corner of workshop:
After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect. Overseas service need to be charged extra.
NOTE : GSK/Siemens Servo driven, motor and transformer, Warranty is 3 years
Others: We accept special customized
