automatic metal pipe threading cutting machine QK1313

Name: automatic metal pipe threading cutting machine QK1313
Brand: crystal
Price: USD $19490.00 - 15.00 / Set

FOB Price

USD $19490.00 - $15.00 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

crystal

Place of Origin:

Shandong, China

Condition:

New

Product Description

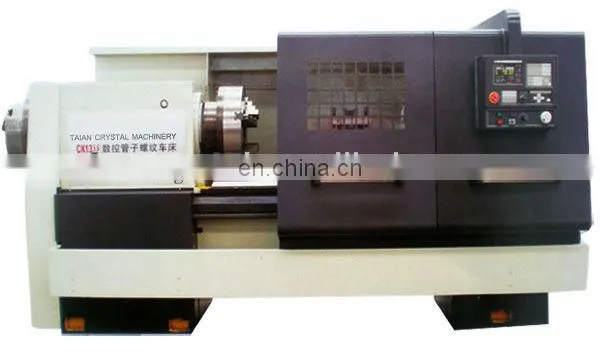

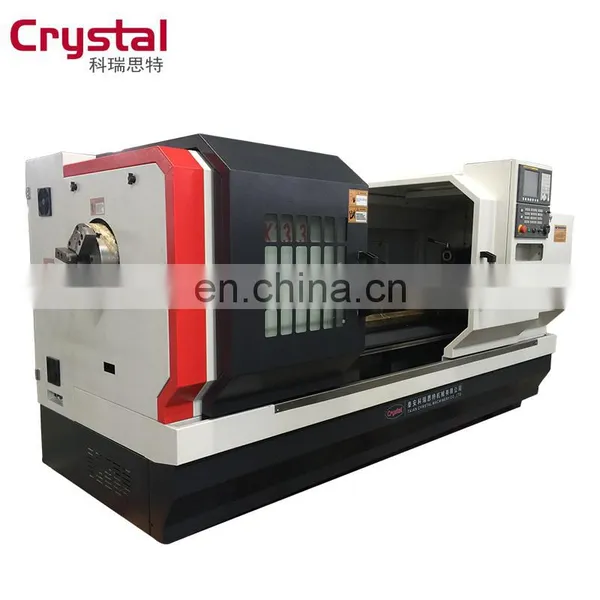

automatic metal pipe threading cutting machine QK1313

The CNC pipe threading machine is developed for the oil field pipe thread turning and it is suitable for all types of pipe threads turning. The machine also can be used as general CNC lathes to machining complex shapes,like shaft sleeve, disc-type parts.

Product Description

Pipe Threading CNC Lathe QK1313 features

Double chuck	Big spindle
Servo main motor	Taiwan ball screw
High efficiency	--

QK1313 Characters

1. We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.

2. The spindle bore is very large and set up double chucks both front and back and you can

choose electric chucks as you like.

3. The surface of the slide rail of the bed is treated by the super audio quench, which can be

endurable and wear-resisting.

4. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.

5. There are two types of speed change: Manual and step less.

6. Set up self lubrication system, and easy to maintain.

QK1313 Main specification

	Lathe specifications	Specifications
Technical specifications	Maximum diameter of lathe bed (mm)	φ610
	Maximum tactical diameter of sliding plate(mm)	φ350
	Maximum work-piece length (mm)	1000
Main drive	Form	Main motor servo stepless
	Rank of spindle speed	No grade
	Range of spindle speed(r/min)	50-850 rpm
	Terminal structure	C11
	Hole diameter of spindle (mm)	Φ140
	The maximum diameter of the tube	135mm
	Power of main motor (KW)	11KW(servo)
Feeding system	Maximum route of knife rest (mm)	X:310 Z:1150
	Speed of quick-travel (mm/min)	X:4000 Z:5000
	Resetting accuracy	X:0.012 Z:0.016
	Precision of work piece	IT6-IT7
	Surface roughness	Ra1.6
Tailstock	Sleeve diameter of tailstock (mm)	Φ75
	Sleeve trip of tailstock (mm)	150
	Cone hole taper tailstock’s sleeve	MT5
Knife rest	Standard configuration	Four-station vertical electrical knife rest
	Alternative configuration	Horizontal Six-station electrical knife rest
	Resetting accuracy (mm)	0.01
	Length of section of knife handle (mm)	30×30
Machine size weight	Lengthwidthheight	2650×1450×1710
Machine size weight	Net weight (Kg)	3000Kg

QK1313 Standard configuration

CNC System:GSK-980TDc	3 jaw manual double chuck
4 station tool	Manual tailstock
Lighting system	Cooling system
Automatic lubrication system	3 phase 380v 50Hz

QK1313 Optional configuration

Siemens system /Fanuc system

Hydraulic chuck/ pneumatic chuck

6-piece electric tool post/8- piece electric tool post

Company Information

Why Choose US

Packaging & Shipping

FAQ

1.Q:Can we pay by L/C?

A:Yes, we can do T/T, L/C etc.

2.Q: What is your payment terms?

A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

3.Q: What is your delivery time?

A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange

shipment as soon as we receive the payment.

4.Q: Can we go to your factory and learn how to use the machine?

A:We sincerely welcome you come to our beautiful city. The training is free. It would

be great honor to us.

5.Q:Can you arrange training in our place after we bought your machine?

A: We can arrange oversea training. Buyers will be responsible to the costs.

6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your

machine?

A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.

7.Q: Do you have CE certification?

A:Yes, we have CE certification, machine quality is guaranteed.

8.Q: Is your company a factory or trading company?

A:We are factory and have more than 18 years production experience.

9.Q: How can I get the quotation?

A:You can send the inquiry on , or send email to us. It is better if you can

tell what is your detailed requests. We will reply to you within 1 hour.

10.Q:About your cnc machining center, I want to know if they can install the 4th axis.

A:Our cnc machining center can support the 4th axis. You can tell us the working

table size or the travel of X,Y,Z axis of machining center you need. We will give

you a recommendation about machine model.
