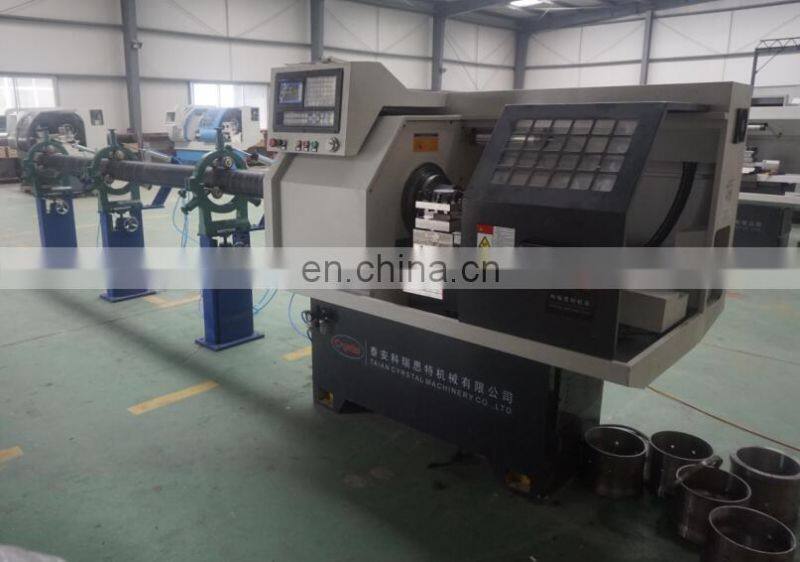

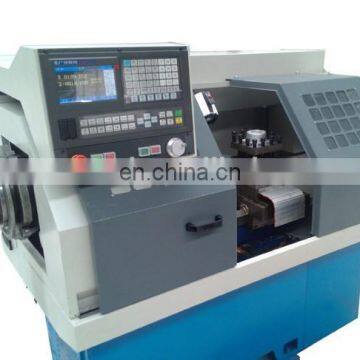

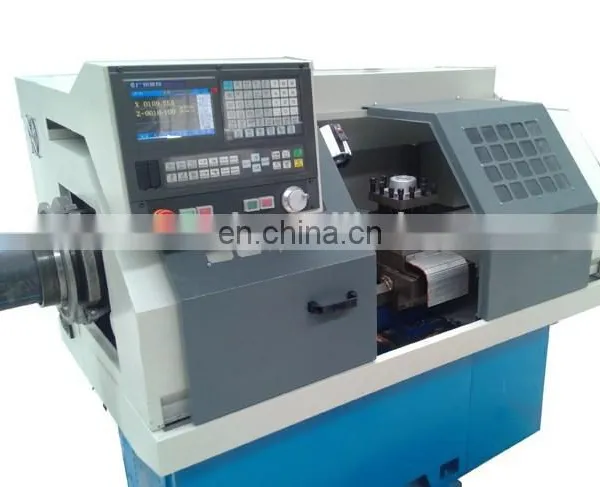

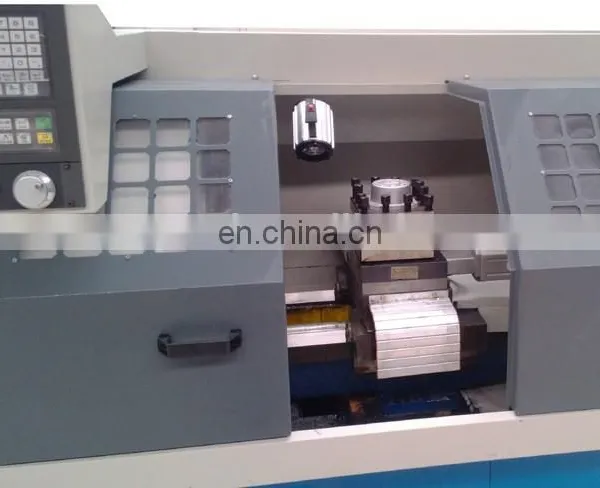

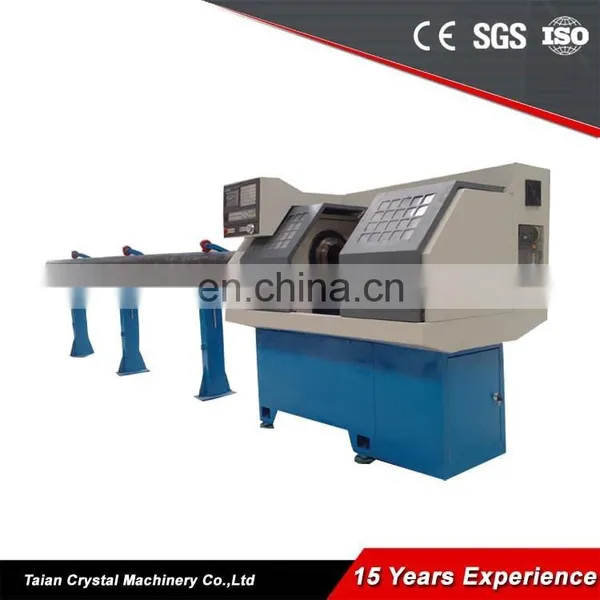

CNC pipe thread lathe machine CYK0660DT
A.Applications:
The biggest feature of CYK0660DT is that you can make the extra large spindle bore according to
the customers’ requirements, and it can reach to Φ190mm at most. It can be used in the machining

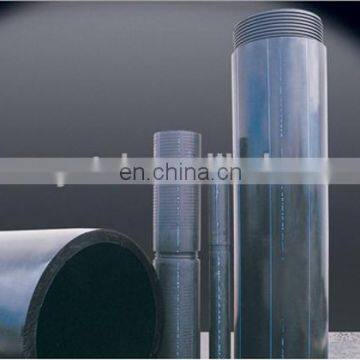

of the oil pipeline, plumbing pipe, and natural gas pipe and all the big pipe diameter material.
It can realize all kinds of automatic cutting of many products, such as excircle, head face, inner bore,
groove, cone and sphere and all the inch screw thread.

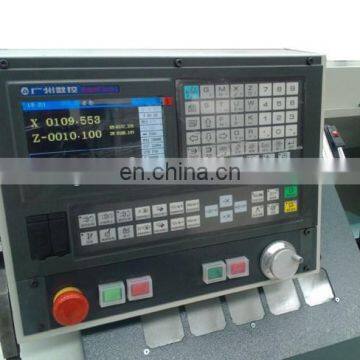

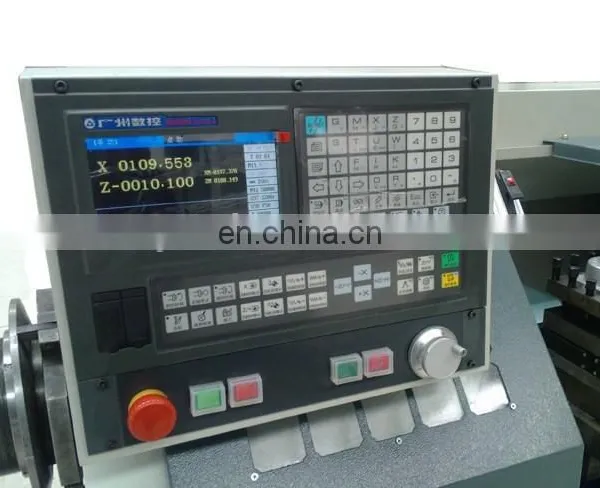

The whole process is controlled by the microcomputer which can send and receive all kinds of signals
and has the function of S/T/M. The appearance is beautiful and there are wide functions and easy to
operate.
B.Main features:
1.Big diameter of spindle bore, and the customer can choose the size of the spindle bore to fulfill
the requirements of cutting the pipe fitting of big diameter.
2.The foundation of the bed is very wide and the guide rail has proper structure and the head stock
has a structure of heat dissipation to improve the stability of the machine tool and the spindle more
effectively.
3. Both the front and back bearings of the machine tool adopt the high precision angular Contact Ball Bearings, which are stable and can load more weight when they are working.
4.The guide rail is made from resistant cast iron, and treated by the super audio quenching, which can
guarantee the precision and the longevity of the machine.
5.X axis adopts 4 points a line structure and Z axis adopts 3 points a line design structure, to ensure the
stability of the machine.

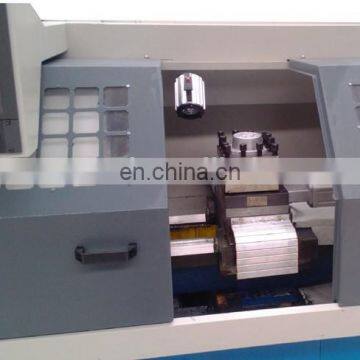

Z axis is designed full closed to protect the guide rail while it is working.
C.Specification
Items |
Specifications |
Max. swing over bed |
Φ600mm |
Max. swing over carriage |
Φ250mm |
Max. length of work piece |
260mm |
Range of spindle speed |
50-1000rpm |
Spindle bore |
Φ195mm(as required by the customers) |
Taper of spindle bore |
42° |
stations of tool carrier |
Four station or the gang type turret |
Max. size of tool post |
25mm×25mm |
Min. setting unit of motor |
(Z) 0.001mm (X) 0.001mm |
Moving speed of post |
(Z) 6 m/min (X) 4 m/min |
Repeatability |
(Z) 0.010 mm (X)0.007mm |
Motor power |
4KW |
Packing size (mm) |
1800 mm×1000 mm×1600mm |
Net weight |
1200kg |
D.Other configurations:
Systems for chosen |
GSK, KND, GUANGTAI, SIMENS |
Spindle bore |
Up to the customers’ requirements |
Clamping style of the work piece |
Collet chuck, disc chuck, chuck |
Lubrication system |
Self lubrication controlled by the microcomputer |
Type of turret |
Motor turret or the gang type |
Machining program |
Make programs according to the customers’ requirements |
accessories |
standard |

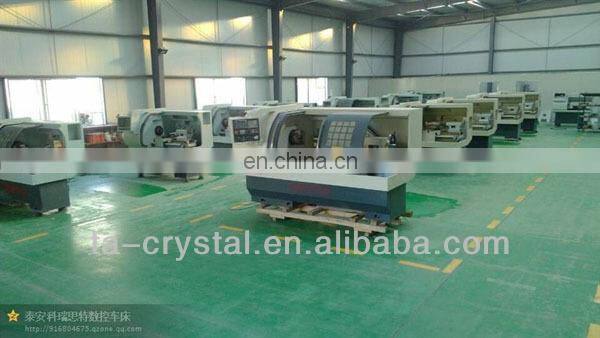

Our workshop

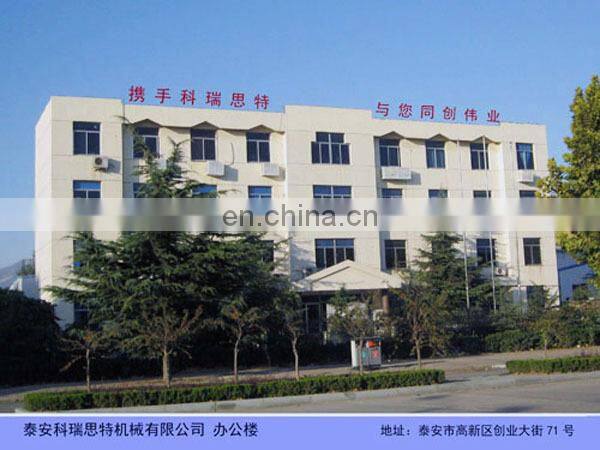

Our company
Our certificate
