china pipe nipple threading machine QK1327
Characters: |
|
1, We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
|
|
2, The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
|
|
3, The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
|
|
4, There are two types of speed change: Manual and step less.
|
|
5, Set up self lubrication system, and easy to maintain.
|
Item |
Lathe specifications |
Specifications |
|
Technical specifications |
Maximum diameter of lathe bed (mm) |
Φ800mm |
Maximum tactical diameter of sliding plate (mm) |
Φ560mm |
|
Maximum work-piece length (mm) |
1000mm |
|
|
Main drive |
Form |
Main motor servo stepless |
Rank of spindle speed |
No grade |
|
Range of spindle speed(r/min) |
50-220rpm |
|
Hole diameter of spindle (mm) |
Φ280mm |
|
The maximum diameter of the tube |
Φ275mm |
|
Power of main motor (KW) |
11KW(servo) |
|
|
Feeding system |
Maximum route of knife rest (mm) |
X:410mm Z:1150mm |
Speed of quick-travel (mm/min) |
X:3000 Z:4000 |
|
Resetting accuracy |
X:0.012 Z:0.016 |
|
Precision of work piece |
IT6-IT7 |
|
Surface roughness |
Ra1.6 |
|
|
Tailstock |
Sleeve diameter of tailstock (mm) |
Φ100mm |
Sleeve trip of tailstock (mm) |
250mm |
|
Cone hole taper tailstock’s sleeve |
MT5 |
|
|
Knife rest |
Standard configuration |
Four-station vertical electrical knife rest |
Alternative configuration |
Horizontal Six-station electrical knife rest |
|
Resting accuracy (mm) |
0.01 |
|
Length of section of knife handle (mm) |
30*30mm |
|
|
Machine size weight |
Length*width*height |
3600*1850*1910mm |
Net weight (Kg) |
5900kg |

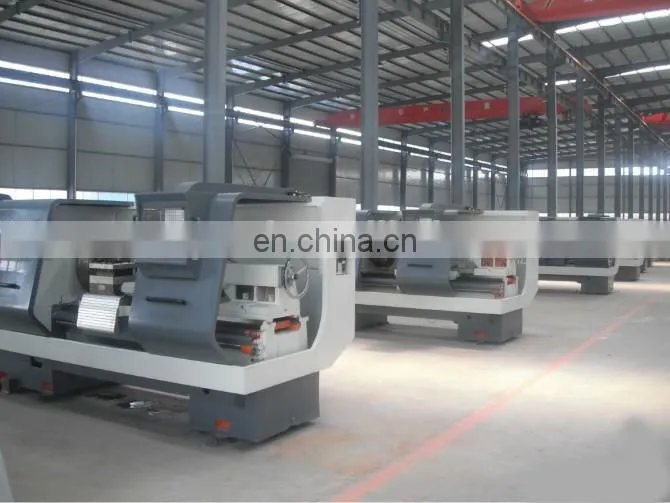

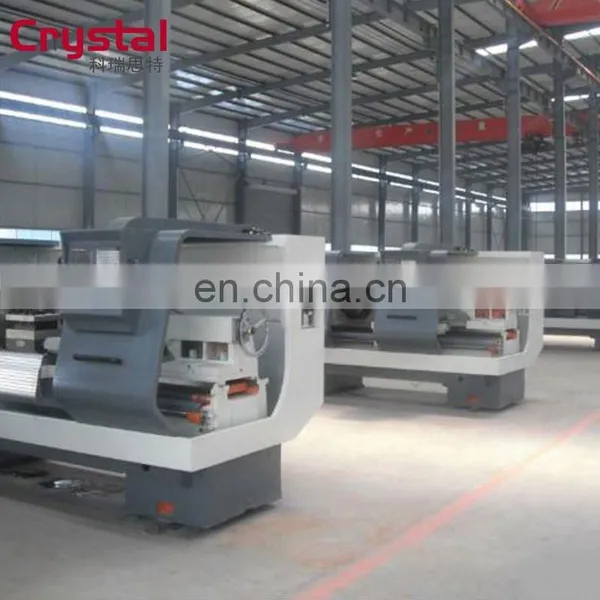

on-site picture

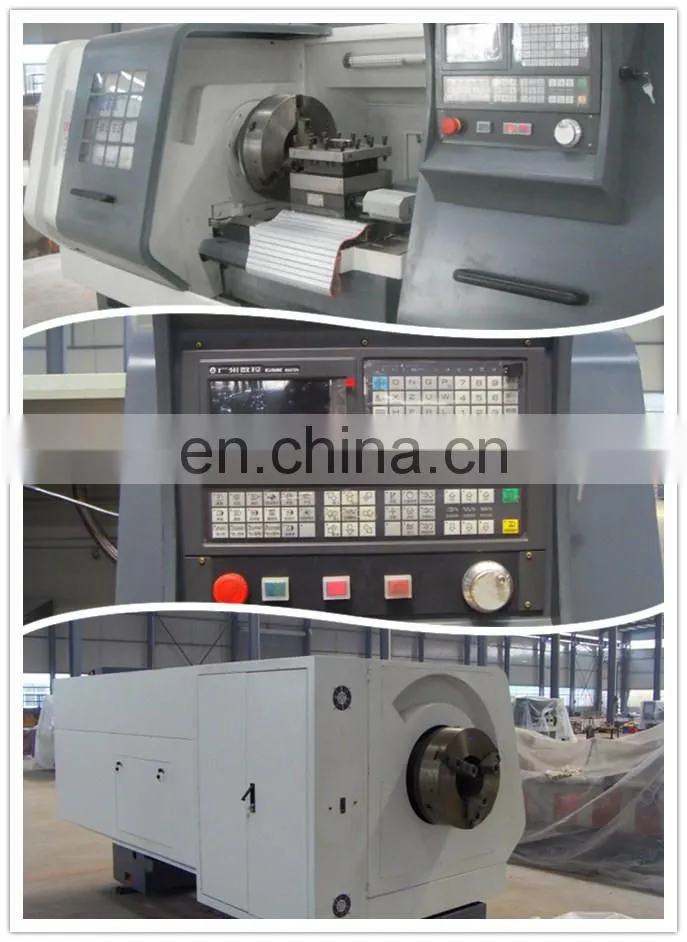

detail picture
1. Warranty is one year; we would offer the parts. Quality problem is free of charge during this period

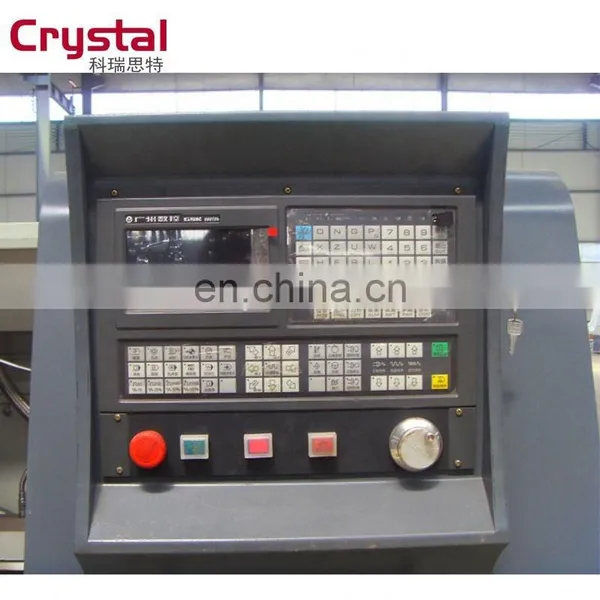

2.GSK cnc system; servo driven,motor and transformer;warranty is 3 years.
3. 24 hours technical support e-mail.
4. User manual and detailed video.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 1,000sqm workshops and offices, we welcome all customers and friends to come to our company!
