QK1313 CNC Pipe Threading Machine
|
Characters 1. We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle. 2. The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like. 3. The surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. 4. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling. 5. There are two types of speed change: Manual and step less. 6. Set up self lubrication system, and easy to maintain. |
Main specification
|
Lathe specifications |
Specifications |
Technical specifications |
Maximum diameter of lathe bed (mm) |
φ610 |
Maximum tactical diameter of sliding plate (mm) |
φ350 |
|
Maximum work-piece length (mm) |
1000 |
|
Main drive |
Form |
Main motor servo stepless |
Rank of spindle speed |
No grade |
|
Range of spindle speed(r/min) |
50-850 rpm |
|
Terminal structure |
C11 |
|
Hole diameter of spindle (mm) |
Φ140 |
|
The maximum diameter of the tube |
135mm |
|
Power of main motor (KW) |
11KW(servo) |
|
Feeding system |
Maximum route of knife rest (mm) |
X:310 Z:1150 |
Speed of quick-travel (mm/min) |
X:4000 Z:5000 |
|
Resetting accuracy |
X:0.012 Z:0.016 |
|
Precision of work piece |
IT6-IT7 |
|
Surface roughness |
Ra1.6 |
|
Tailstock |
Sleeve diameter of tailstock (mm) |
Φ75 |
Sleeve trip of tailstock (mm) |
150 |
|
Cone hole taper tailstock’s sleeve |
MT5 |
|
Knife rest |
Standard configuration |
Four-station vertical electrical knife rest |
Alternative configuration |
Horizontal Six-station electrical knife rest |
|
Resetting accuracy (mm) |
0.01 |
|
Length of section of knife handle (mm) |
30×30 |
|
|
Machine size weight |
Length*width*height |
2650×1450×1710 |
Net weight (Kg) |
3000Kg |

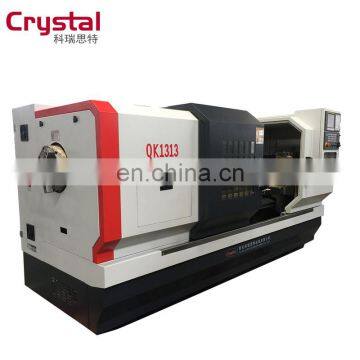

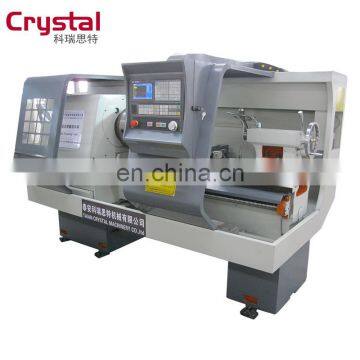

Pictures of Pipe Threading Machine

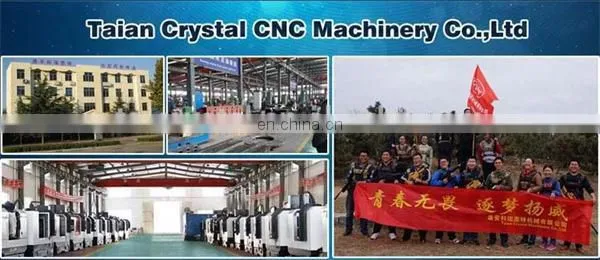

Our customers visit to our company
Standard Wooden Package for CNC Lathe Machine
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Make you satisfied is our business!
- The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
- Over 300 clients from more than 40 countries could tell you we are your realiable parter.
- We are professional cnc machine factory,our price could beat any competitors in china market .
- We supply professional solution to you based on your own process one by one.
- We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
- We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
- 7*24 hours Email or phone service.
