Home > Products > CNC Milling Machine /Machining Center > VMC7035 fully-guarded type Vertical Machining Center Cnc milling Machine

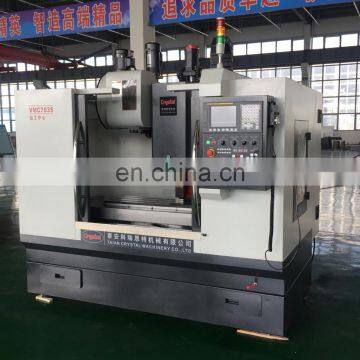

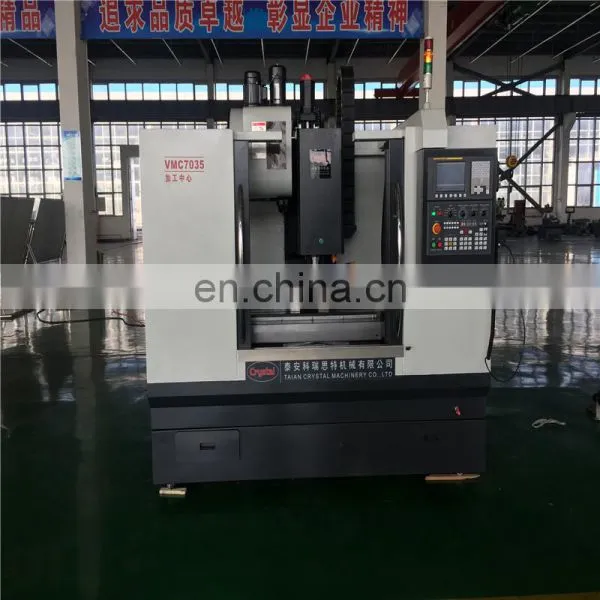

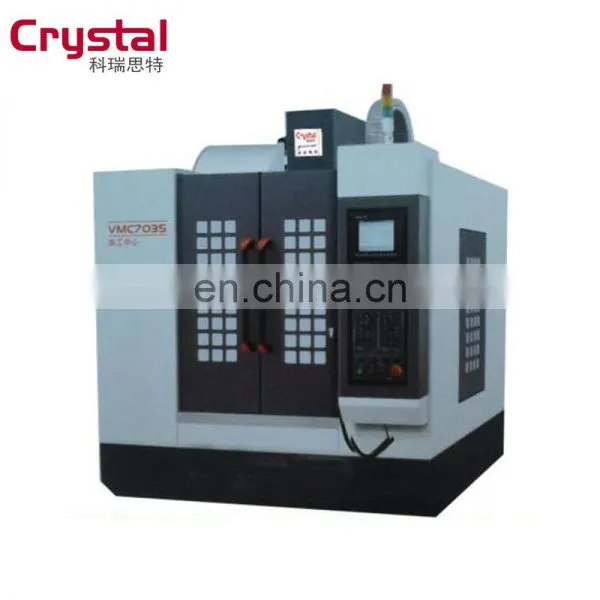

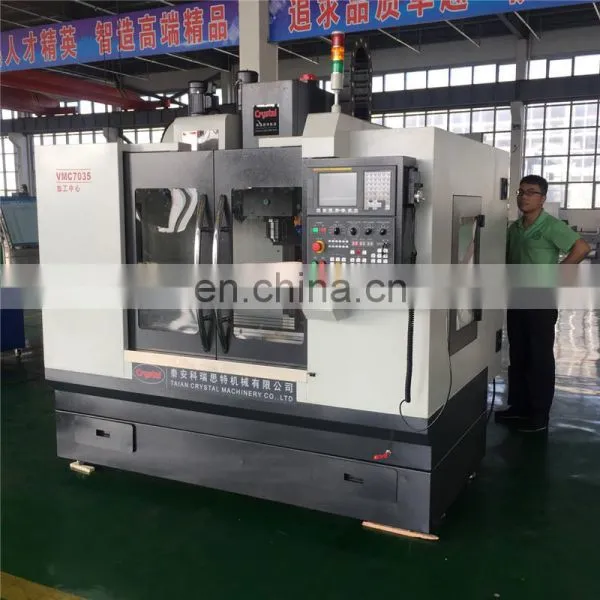

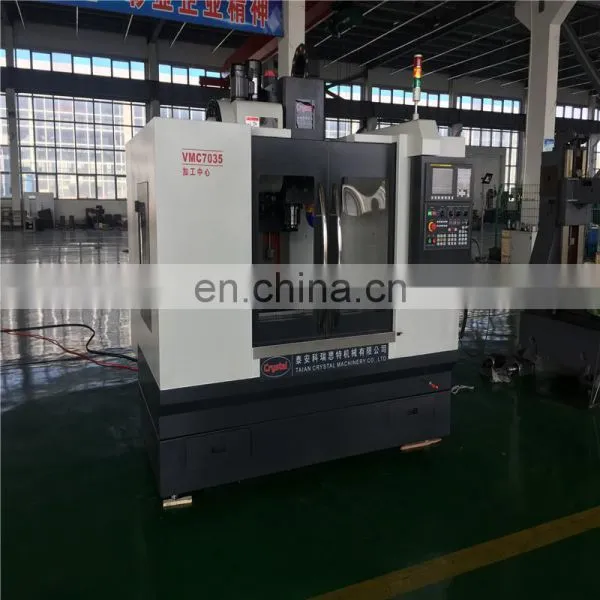

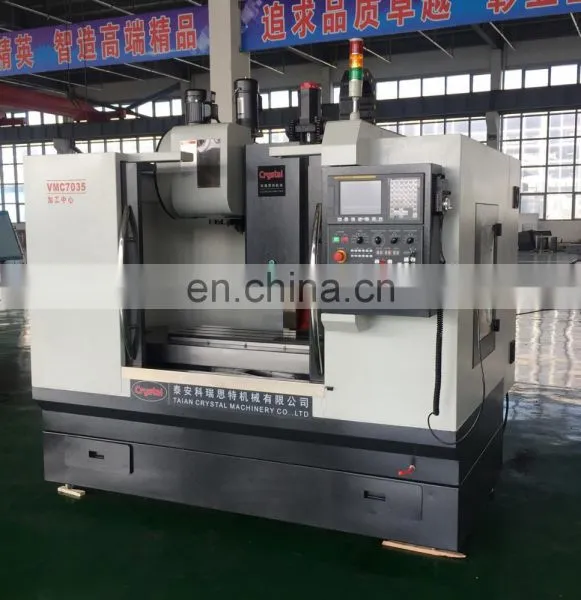

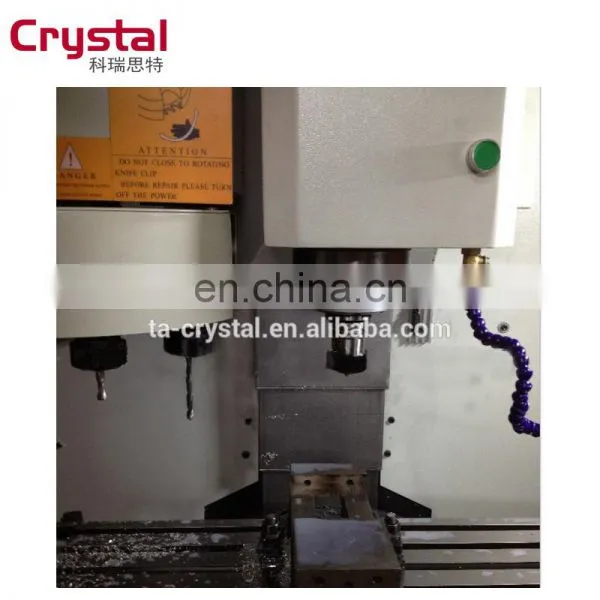

VMC7035 fully-guarded type Vertical Machining Center Cnc milling Machine
- 1000 Set / Sets per Month
- T/T Credit Card
You May Like
-
VMC1060 cnc milling machine from rough machining to finish machining
-
VMC7032 umbrella type tool changer 12tools CNC Milling Machine
-
VMC850 Vertical Machining center finish milling/drilling/tapping/boring procedures
-
VMC1060 high quality cnc milling machine with GSK/SIEMENS/FANUC CNC system
-
VMC850 CNC Vertical Machining Center for mechanical processing and mold making
-
CNC Machine High Precision Vertical Machining Center 3 Axis Milling Machine VMC7032
Product Details
Brand Name | Crystal | Place of Origin | Shandong, China | |
Model Number | VMC7035 | |||
Year | 2018 | Condition | New |
Product Description
VMC7035 fully-guarded type Vertical Machining Center Cnc Machine
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling,drilling,tapping and boring etc.
Vertical Machining Center Features:
1. Taiwan BT40 Spindle
2. Taiwan ball screw and locking nut
3. Umbrella type tool Magazine, 12 tools
4. Fully-guarded type machine
Vertical machining center Specifications:
Specifications | Unit | VMC7032 |
Table Size (L*W) | mm | 950×350 |
Travel of x,y,z axis | mm | 650/350/500 |
Max, table load | kg | 400 |
T-slot Size | mm | 3-14-100 |
Center distance | mm | 100 |
Spindle taper | -- | BT40 |
Spindle center to Column guide distance | mm | 416 |
Spindle end face to table distance | mm | 150-650 |
Max speed | rpm | 8000 |
Spindle motor power | KW | 3.7/5.5 |
Spindle drive | -- | Belt transmission |
Positioning accuracy | mm | 0.015 |
Repeat Positioning accuracy | mm | 0.0075 |
Rapid feed of X/Y/Z | mm/min | 1000 |
Cutting feed of X/Y/Z | mm/min | 6000 |
Tool Magazine Capacity | tools | 12 |
Max. Tool size | mm | 100 |
Max. Tool weight | kg | 8 |
Machine Weight | Kg | 3300 |
Dimension | mm | 2290×1805×1900 |
Power | -- | 3 phase 380V, |
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q: About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need.
We will give you a recommendation about machine model.
Make you satisfied is our business!
1. The first batch of supplier joined Alibaba Trade Assurance.
Amount up to the top of Machinery Industry. Zero-risk Purchase service.
2. Over 400 clients from more than 80 countries could tell you we are your reliable
partner.
3. Professional in cnc machine.
Our price could beat any competitors in China market.
4. We supply professional solution based on your own process one by one.
5. Customer-made configurations available. Provide you more choices.
6. 7*24 hours before and after sale service.
7. 2 years guarantee for whole machine, 3 years warranty for CNC system, servo
motor, guide-rail.
