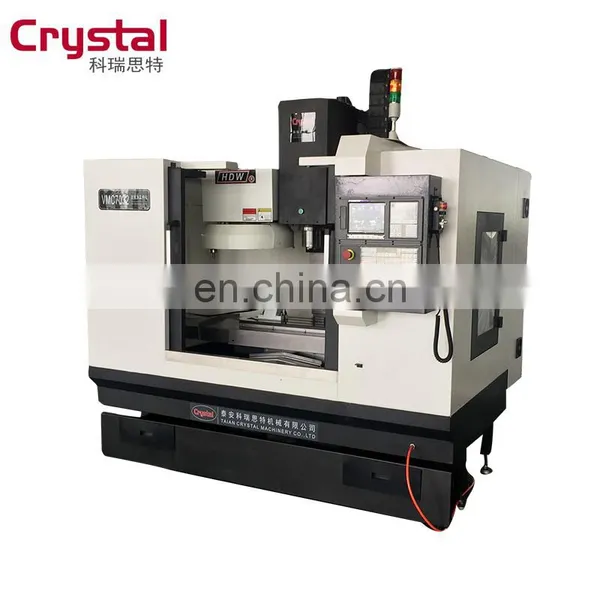

VM550L/ VMC550L
1. High strength resin sand casting
2. 3-axis Taiwan line rail
3. Siemens 802C control
4. Taiwan high speed spindle unit 8000RPM
5. Separate handwheel
6. Turntable Style ATC, 16 tools
7. Pneumatic broach system
8. Fully-protection cover
9. Automatic intermittent lubrication
10. Adjustable Mat iron and Screw
Item |
VM550L |
||
Spindle |
Motor power ( kw ) |
5.5 |
|
Distance from Spindle end to table ( mm) |
100 -470 |
||
Distance from Spindle center to column guideway ( mm) |
380 |
||
Speed ( rpm ) |
8000 |
||
Taper of spindle nose (mm ) |
BT40 |
||
Table |
Area ( mm2) |
320×800 |
|
Max . Load ( kg) |
300 |
||
High (mm) |
880 |
||
T- Slot mm |
3-14-100 |
||
Travel |
Max. travel of X axis ( mm) |
550 |
|
Max. travel of Y axis ( mm) |
350 |
||
Max. travel of Z axis ( mm) |
380 |
||
Feeding |
Rapid travel of X axis ( m ) |
10 |
|
Rapid travel of Y axis ( m) |
10 |
||
Rapid travel of Z axis ( m) |
8 |
||
Cutting / turning feed( mm /min ) |
1-5000 |
||
Accuracy |
Positioning accuracy ( mm ) |
±0.02 |
|
Repeatability ( mm) |
0.008 |
||
Tooling |
Max. Diameter ( mm ) |
120 |
|
Max. Length ( mm ) |
200 |
||
ATC number of tools |
16 tools |
||
The fastest tool change time ( s ) |
6 |
||
Data |
Service voltage ( Mpa) |
0.6 |
|
Power |
V / Hz |
380/50 |
|
KVA |
6.5/10 |
||
Machine weight |
2500 |
||
Machine size |
2200×1600×2300 |
||
