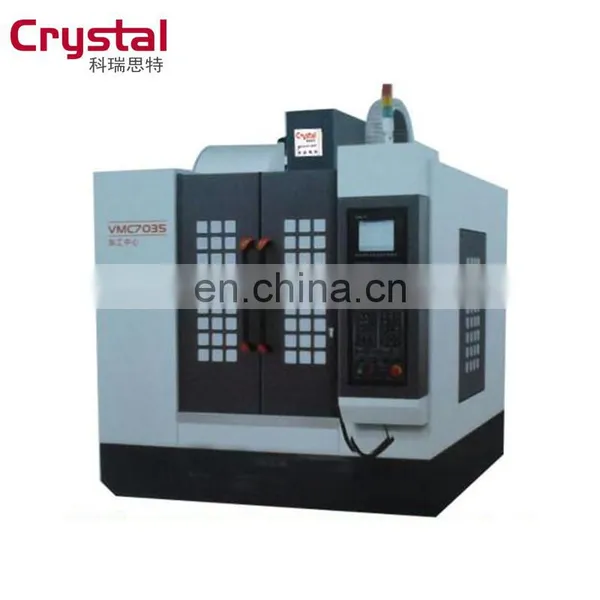

Low Cost CNC Drilling Milling Machine/CNC Milling Machine 4 axis VMC7035
Specification of this machine
CNC system KND K1000MI (you also can choose FANUC system)
Items |
Specification of VMC7035 |
|
Table size(mm) |
950×350 |
|
T type groove |
3-14 |
|
T type groove distance (mm) |
100 |
|
The workbench maximum load(kg) |
400 |
|
Travel of X axis (mm) |
650 |
|
Travel of Y axis(mm) |
350 |
|
Travel of Z axis(mm) |
500 |
|
The spindle end to the work surface(mm) |
150-650 |
|
The center of spindle to guide rail face(mm) |
416 |
|
Taper hole of spindle |
BT40 |
|
Highest speed of spindle(Rpm) |
8000 |
|
Power (kW) |
3.7/5.5 |
|
Rapid feed rate (mm/min.) |
12000 |
|
Fast cutting speed(mm/min) |
8000 |
|
|
Accuracy
|
positional accuracy (mm) |
0.015 |
|
repeated positioning accuracy (mm) |
0.0075 |
|
Weight(kg) |
3300 |
|
Dimension(mm) |
2290×1805×1900 |
|

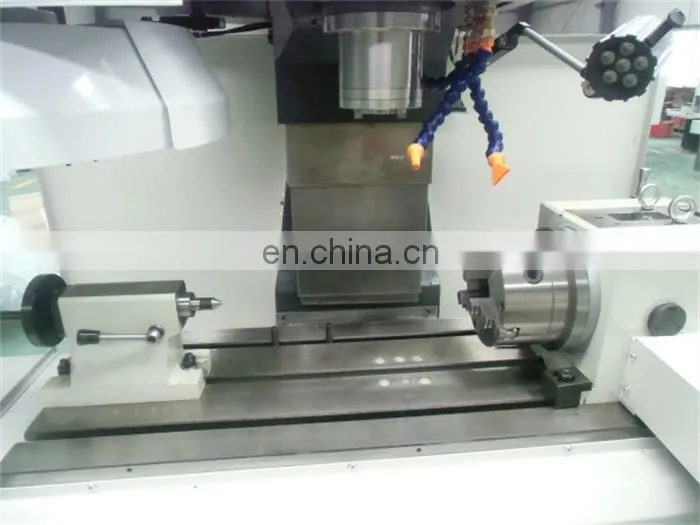

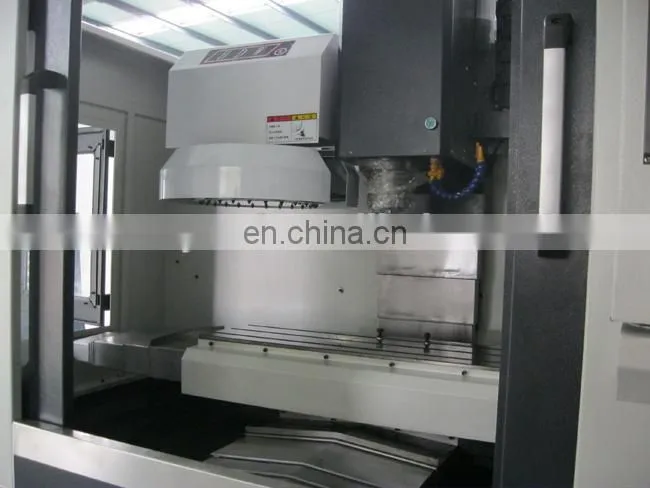

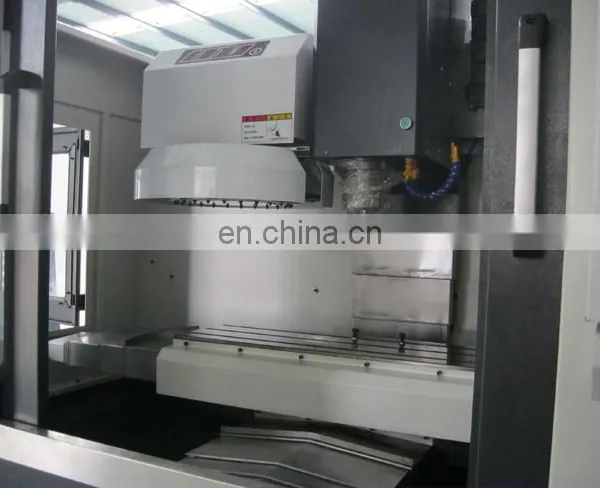

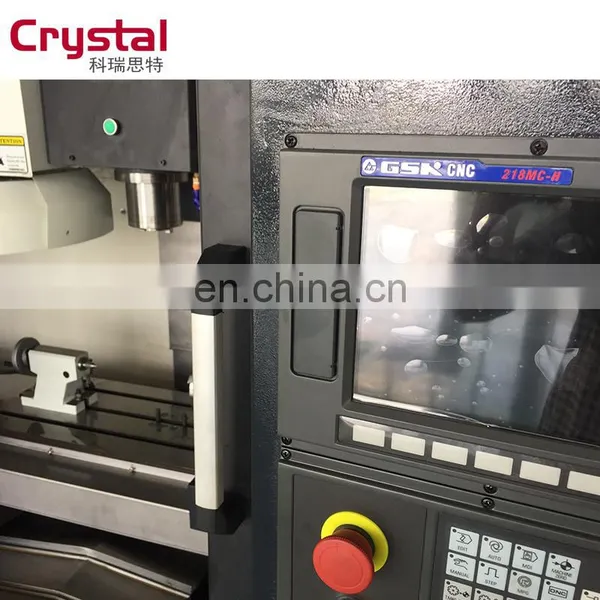

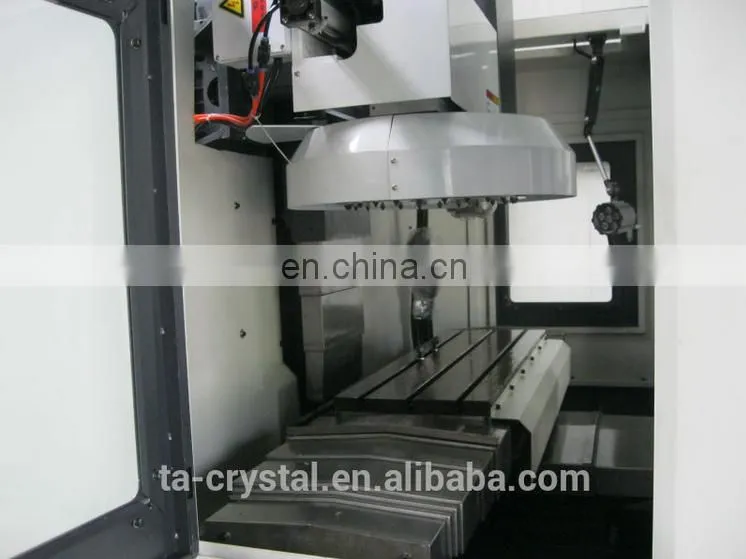

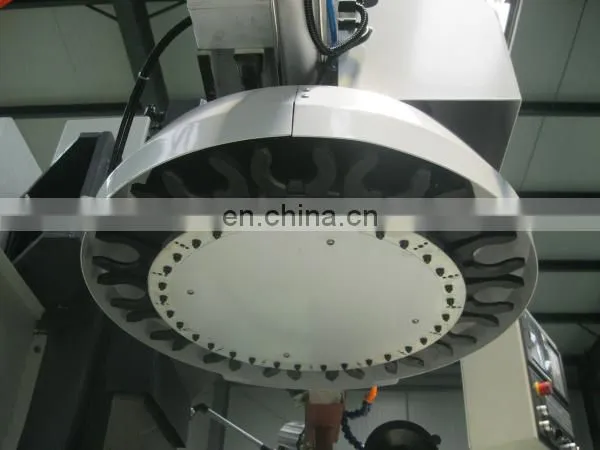

Detail Pictures of Milling Machine VMC7035
Workshop Scene and Standard Wooden Package for Our Milling Machine
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Make you satisfied is our business!
- The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
- Over 300 clients from more than 40 countries could tell you we are your realiable parter.
- We are professional cnc machine factory,our price could beat any competitors in china market .
- We supply professional solution to you based on your own process one by one.
- We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
- We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
- 7*24 hours Email or phone service.
