China CNC Lathe 3 Axis Cnc Milling Machine Price

China CNC Lathe 3 Axis Cnc Milling Machine Price thumbnail-1
China CNC Lathe 3 Axis Cnc Milling Machine Price photo-1
US$ 15,000 - 21,670 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
crystal
Place of Origin:
Shandong, China
Model Number:
M400
Contact Supplier Request Quote Chat Now
Milling Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name crystal
Place of Origin Shandong, China
Model Number M400
After-sales Service Provided Engineers available to service machinery overseas
Condition New

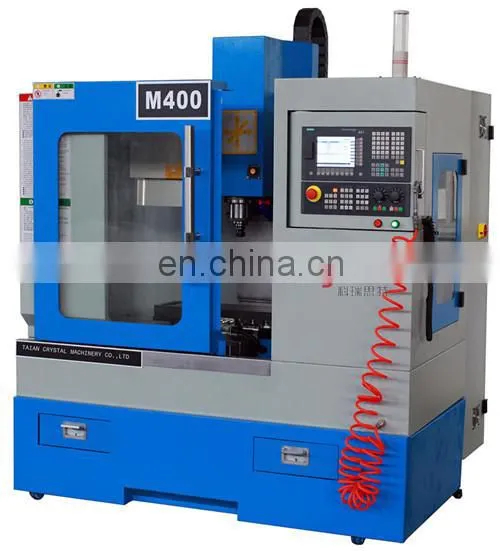

cheap small mini cnc milling machine price M400



Production Discription ---Crystal 15-year expenience,mini cnc milling machine for sale

Main Feature

1. The main structure of the bed and columns, etc. using reasonable fabric reinforcement enhanced shock resistance.
2. Under heavy cutting without distortion and smooth chip design.
3. The three-axis linear guide installation and maintain long-term operation with high precision at high speed down. Fast moving shorten positioning time increase productivity.
4. Precision constructed press-fit automatic lubricating device, use the ball screw with a special bearing, yet the positioning accuracy and precision contour control and move the shaft rigidity.
5. The three-axis are servo feed axes, spindle and servo motor with rigid tapping function, improve processing accuracy, reduce processing time and improve productivity.
6. The system can produce according to the customer's choice.



Product Overview
1.The overall structure of high toughness, high-level cast iron, and after annealing can efficiently and effectively eliminate the stress within the material, to ensure the best accuracy and stability and durability.
2.Column design with a large "human" type large span, high rigidity and high stability, and strong, smooth casting large bed base is connected to better ensure the accuracy of the workpiece, and accuracy.
3. The weight system in the column, and a biaxially oriented, so cutting down headstock move more smoothly and effectively suppress vibrations produce adverse effects, to ensure accuracy.
4.Three-axis P3 level precision ball screw, nut washer with dual pretensioners, pre eliminate backlash and achieve high positioning accuracy and stability of the repeat positioning accuracy.
5-axis machine-precision linear guides are installed to ensure that the processing of high-precision, while increasing the fast forward speed.
6.Three-axis feed drive by AC servo motor and screw directly connected, smooth transmission, no backlash. Also has good stiffness and damping performance, which greatly improves the dynamic rigidity driveline.
7.Precision high-speed spindle unit with AC servo motor through belt linked, low noise, low vibration, low heat. Can be milling, drilling, reaming, boring, reaming, tapping and other processing.
8.Column Z axis travel large (up to 500mm), so that the processing of high workpieces without the big machine is complete, at the same time to increase the fourth indexing shaft, leaving enough space.
9.Sheet metal integrated design, comprehensive protection, good integrity, high tightness. Open sliding door design, easier loading and unloading of the workpiece.



Specification

Items Specification
Dimension 760*210mm
T-solt 14*3*63mm
Load 200Kg
X-axis 400mm
Y-axis 230mm
Z-axis 500mm
Distance spindle-cross table 110-610mm
Distance spindle-column 320mm
Spindle speed 8000/10000rpm
Mpa 0.6
Spindle servo motorpower 2.2Kw
Spindle motor torque 27N.m
Driving motor torque 4N.m
Milling feed 5000mm/min
Fast motion 12000mm/min
Coolant pump power 120W
Control model SIEMENS 808D
Flat screen 7.2LCD flat screen
Multi-axis feed controller Three axis(x/y/z)
Least command incremen 0.001mm
Least input incremen 0.001mm
Poistioning accuracy ±0.012
Repeating accuracy ±0.006
Net weight/Gross weight 1150/1250kg
Packing Size 146*194*218mm
Spindle taper ISO30



Standard Configuration

Safety locks, lubrication, cooling box and crumb tray, operation indicator (red, yellow, green), work lights, air guns, tool set, manual set, eight knives.



Optional Configuration

Vertical cutter bar BT30, quick-change chuck BT30, collet cutter bar BT30, taper shank adjustable sets BT30, end mill rod BT30, pneumatic screws, precision mold clamp, suits collets, CNC Indexing head (axis).

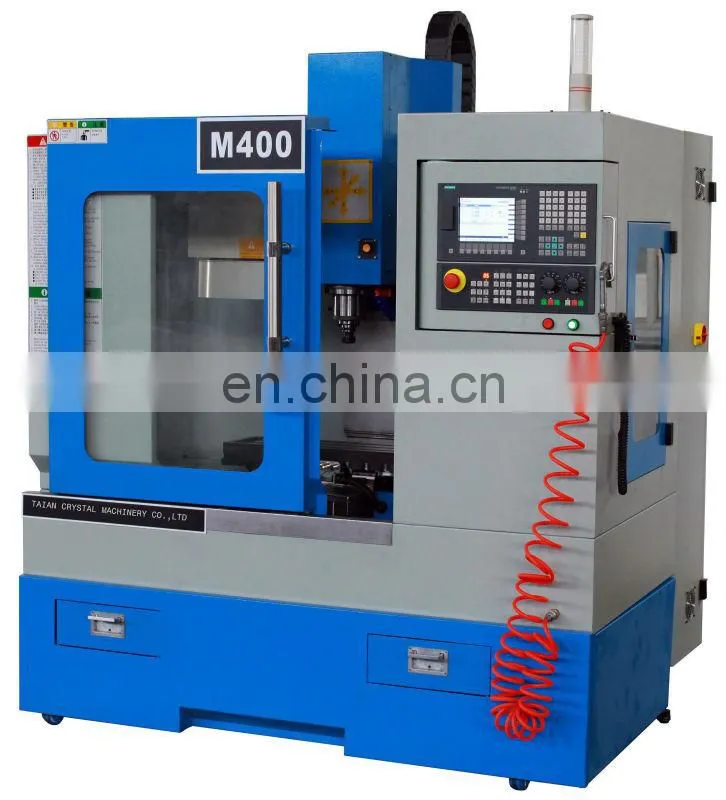

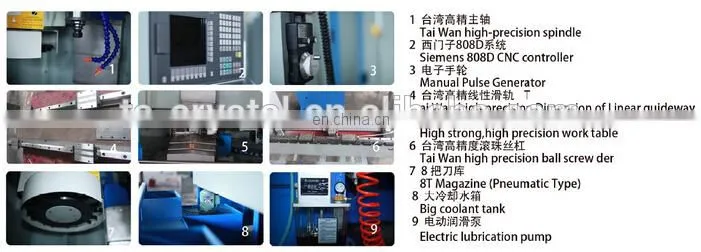

Production Display ---Crystal 15-year expenience,mini cnc milling machine for sale

 China CNC Lathe 3 axis cnc milling machine price

China CNC Lathe 3 axis cnc milling machine price

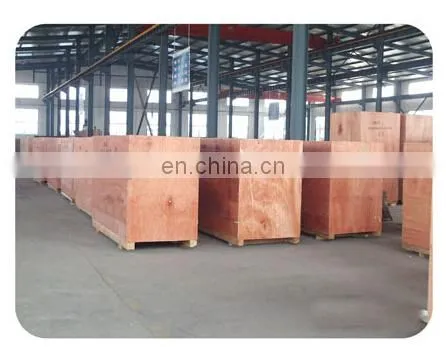

Packing &Shippment  ---Crystal 15-year expenience,mini cnc milling machine for sale

 China CNC Lathe 3 axis cnc milling machine price

Our Service ---Crystal 15-year expenience,mini cnc milling machine for sale



1.We are cnc machine manufacrurer, can provid the high quality, competitive price and good after-sale service.
2.We have our own technical team, can provide the customized solutions according to your request.
3.We go the full 24-hour performance and accuracy test before shipment.
4.Warranty is one year; we would offer the parts. Quality problem is free of charge
during this period.
5.One year guarantee for whole machine expect of CNC system, which guarantee is
three years
6. 24 hours technical support e-mail.
7. User manual and detailed video.

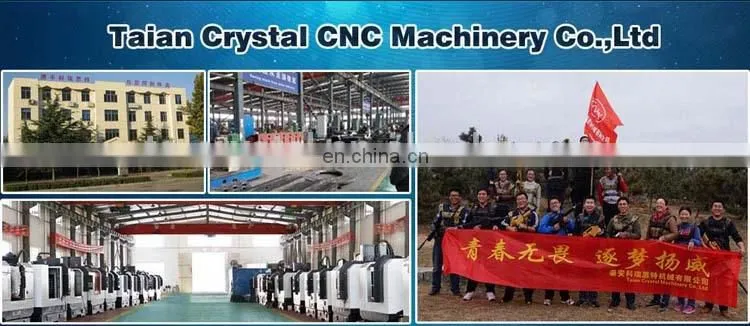

Company Information ---Crystal 15-year expenience,mini cnc milling machine for sale

Why to choose us?

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 1,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
