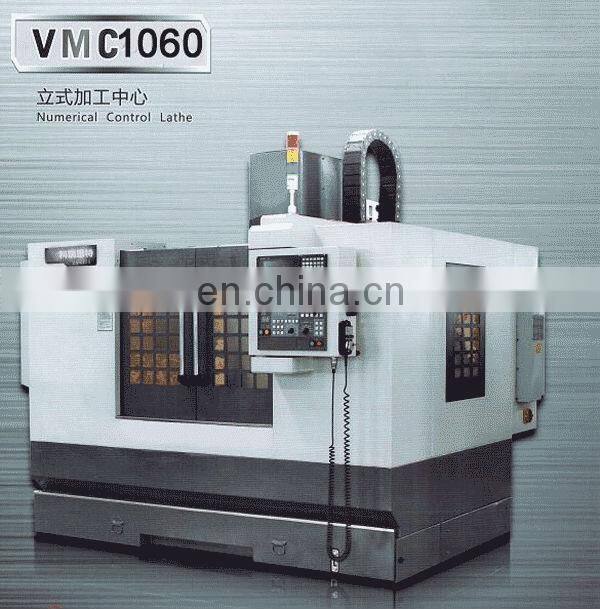

cnc turn mill lathe machine VMC1060
Item |
Specification |
Pallet size |
1300*600mm |
X axis travel |
1000mm |
Y axis travel |
600mm |
Z axis travel |
650mm |
distance from spindle center to column guide |
550mm |
distance from spindle nose to table |
130-780mm |
T-type tank |
5-18*120 |
type of taper hole |
13740 |
Max spindle speed |
8000rpm |
Spindle power |
11/15kw |
Three axis servo power motor |
2.5/2.5/2.5 |
Three axis motor coupling |
|
Three axis rall way |
slide rail |
Max. Weight on pallet |
1000kg |
Tool changing time |
1.8 |
Tool selection mode |
Selecting the nearest tool |
Tool storage capacity |
Disc type |
Max. Tool weight |
8kg |
Max. Tool length |
350mm |
Max. Tool diameter |
Dia.80(adjacent knife) Dia.125(adjacent no knife) |
Rapid traverse rate |
16/16/16 |
Cutting feed speed |
8m/min |
Poistioning precision |
±0.01/±0.008/±0.008 |
Repeatability |
±0.005/±0.004/±0.004 |
L*W*H |
3300*2500*2700mm |
Weight |
7800Kg |
1. Warranty is one year; we would offer the parts. Quality problem is free of charge during this period
2.GSK cnc system; servo driven,motor and transformer;warranty is 3 years.
3. 24 hours technical support e-mail.
4. User manual and detailed video
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 1,000sqm workshops and offices, we welcome all customers and friends to come to our company!
