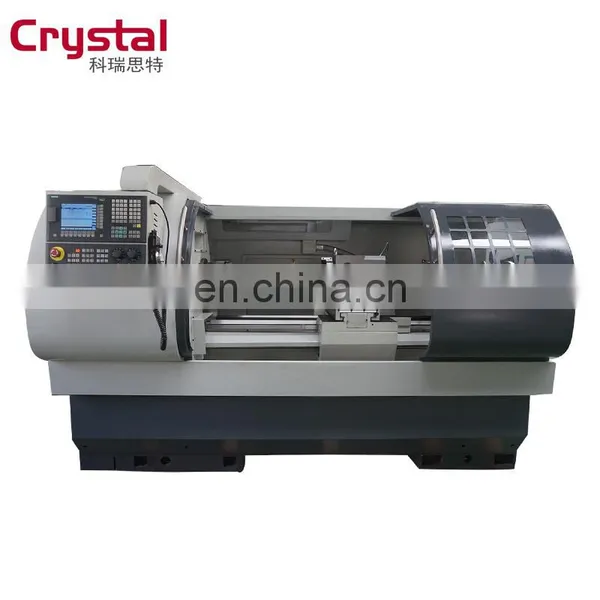

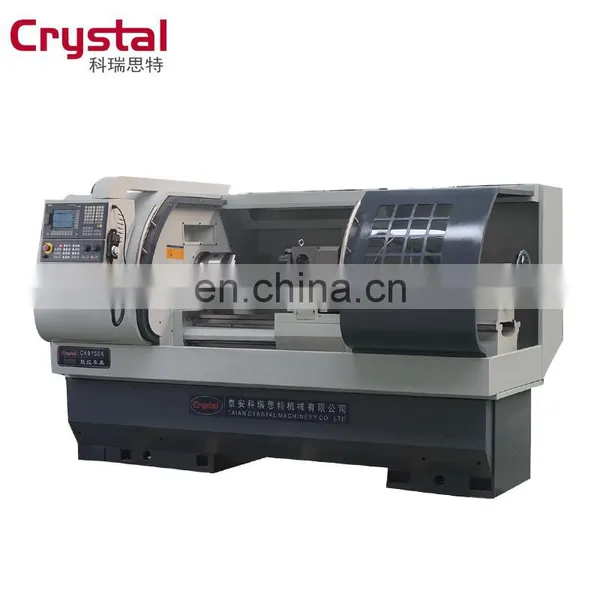

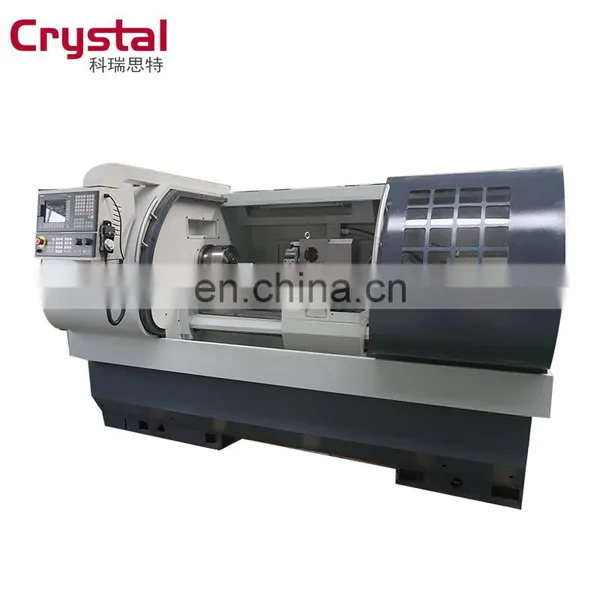

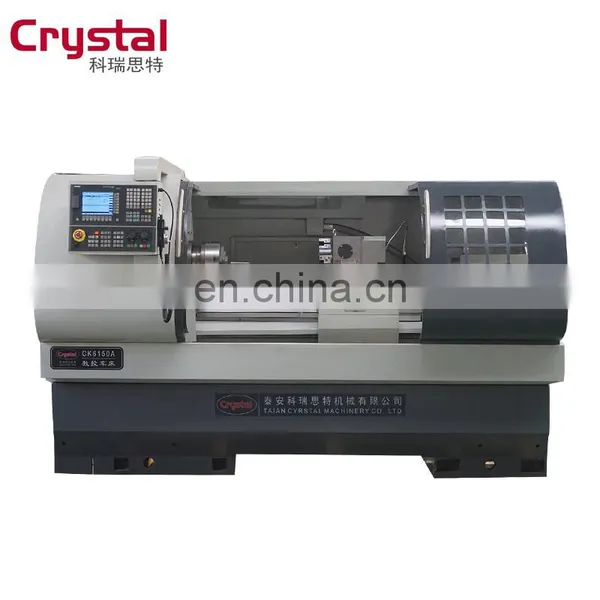

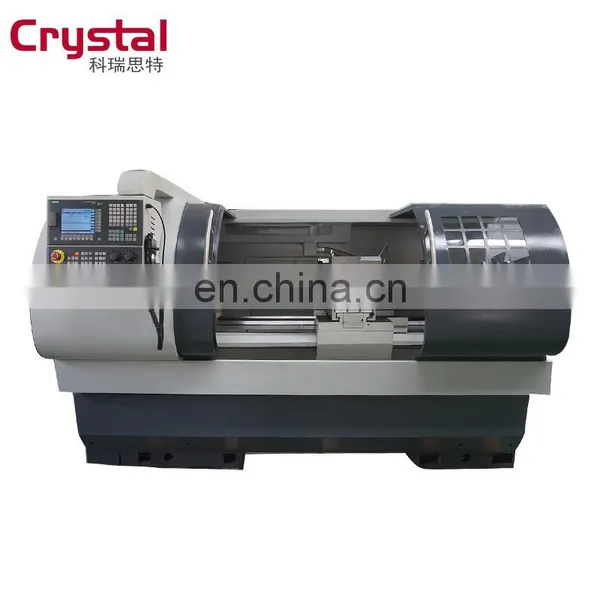

CNC Machining Tool CK6150A Used Machinery Fanuc System
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
CK6150A CNC Lathe Features:
A high strength, widening the carriage, suitable for heavy cutting
Four position electric turret
Frequency conversion stepless speed regulation
Standard configuration: manual chuck
Optional configuration : hydraulic chuck
CK6150A CNC Lathe Specifications:
Item |
CK6150A |
Max. Swing over bed |
Φ500mm |
Max. Swing over cross slide |
Φ280mm |
Processing length |
750mm/1000mm/1500mm/2000mm |
Width of the bed |
400mm |
Diameter of spindle bore |
Φ82mm |
Spindle taper |
1:20/Φ90 |
spindle nose |
Type of spindle head D-8 |
Spindle speed |
150-2000rpm |
chuck size |
250mm |
Tool holder |
4 station |
Tool bar section |
25X25mm |
Main motor power |
7.5KW |
X/Z axis position accuracy |
0.02/0.025mm |
X/Z axis repeatability |
0.01/0.012mm |
X/Z axis torque |
6/10N.M |
X/Z axis travel |
X 360 Z 750mm/1000mm/1500mm |
X/Z axis fast feeding speed |
8/10 M/MIN |
Tailstock sleeve travel |
150mm |
Tailstock taper |
MT5 |
Dimension |
2410/2660/3160*1560*1730mm |
weight |
2800/3200/3500kg |
CK6150A Lathe Optional Configuration :
1. Siemens system /Fanuc system
2. Hydraulic chuck/ pneumatic chuck
3. Hydraulic tailstock/ pneumatic tailstock
4. 6-piece electric tool post/8- piece electric tool post/ Gang type tool
5. Auto bar feeder
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
