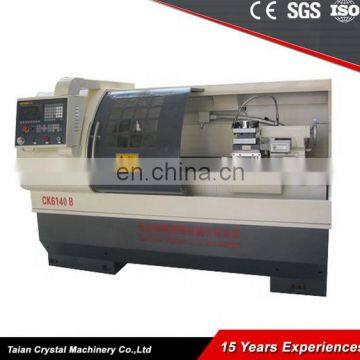

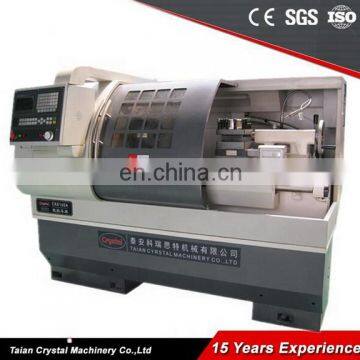

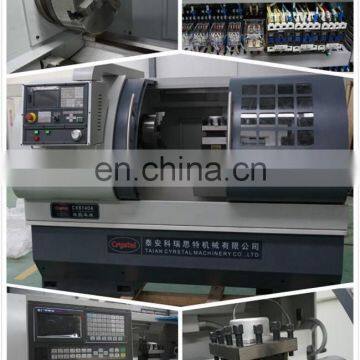

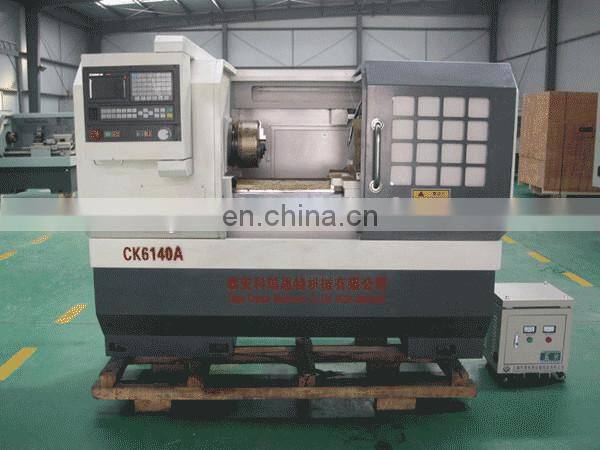

cak6140 small cnc lathe machine metal turning lathe
specifications
Items |
Specifications |
Max. swim over bed |
Φ400mm |
Max.swim over carriage |
Φ245mm |
Max.length of work piece |
750mm/1000mm |
Wedth of the bed |
330mm |
Size of three-jaw chuck |
250mm |
Range of spindle speed |
150-2500rpm |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT4 |
stations of tool carrier |
4/6/8/ |
Max.size of tool post |
25×25mm |
Min.setting unit of motor |
(Z) vertical 0.001mm (X) horizontal 0.001mm |
Moving speed of post |
(Z) vertical 8 m/min (X) horizontal 4 m/min |
Taper of tailstock quill |
MT4 |
Max. range of tailstock quill |
120mm |
Motor power |
5.5KW |
Packing size (mm) |
2050/2300 mm×1400 mm×1650mm |
Net weight |
1750/1800kg 1950/2000kg |
instructions of other devices
Brands of standard configuration of CNC |
GSK SIEMENS FANUC and KND |
Structure style of spindle |
Independent spindle and frequency control |
Protective cover and door |
metal plate cover and double protective door |
Position of CNC system |
on the left side, rotation type |
lighting system |
standard T8 fluorescent lamp |
Cooling system |
water cooling |
Lubrication system |
automatic lubrication controlled by microcomputer |
Brands of motor-driven tool carrier |
Hongda and Sanhe |
Type of cabinet base |
Overall cast iron |

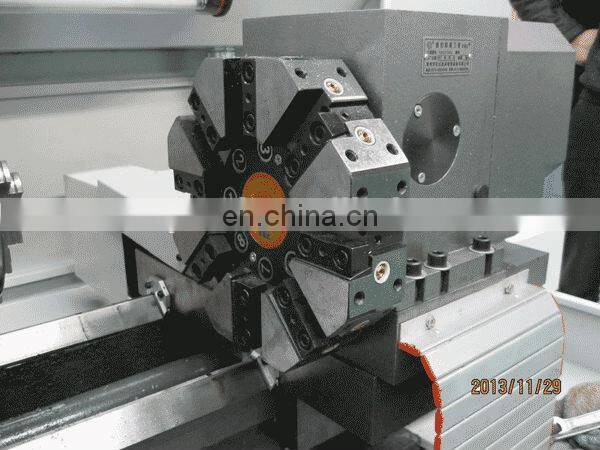

8 stations of tool carrier
Automatic chip conveyor peculiar setup

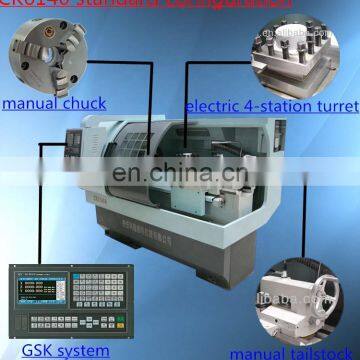

optional csonfiguration for cak6140 small cnc lathe
1.GSK, Siemens, Fanuc and KND cnc controller
2.Hydraulic chuck or pneumatic chuck, or 4-jaw chuck
3.6/8-station electrical turret
4.Semi-closed protection
5.Automatic chip conveyor
our campany
Taian Crystal Machinery Co., Ltd. is specialized in the development, production and trade of CNC machine tools, CNC machining and other automated equipment conglomerate.
