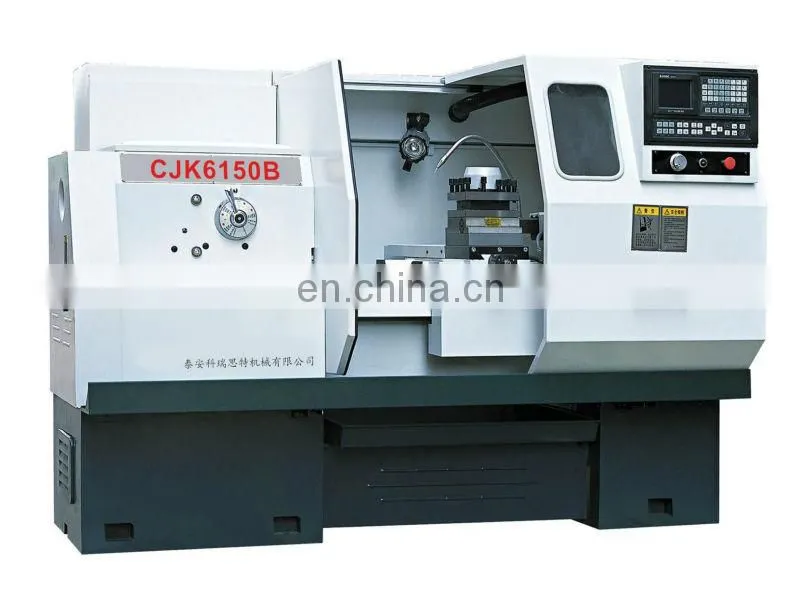

Help CenterCJK6150B CNC Metal Spinning Machine
Related Products
-
Metal Spinning Machine CQ6236F Manual LatheUS$ 1,800 - 3,000MOQ: 1 Set -
CK6136A-1 Cnc Cutting Machine Spinning LatheUS$ 5,000 - 50,000MOQ: 1 Set
-
China Cnc Auto Lathe Linear Guide Cnc Lathes Mazak CK6132AUS$ 8000.00 - 15.00MOQ: 1 Set
-
Cnc Lathe With nc Tool Turret or Gany Type Tool Post CK6432AUS$ 9000.00 - 15.00MOQ: 1 Set
-
200 Dia. Chuck Cnc Lathe Cnc Machine 6136US$ 9000.00 - 15.00MOQ: 1 Set
CJK 6150B CNC machine
A.Main features:
1. after the lead rail of the machine is treated by super-audio quenching and finish grinding and plastic coating, it is of good rigidity and stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore isφ82mm while the diameter of chuck is φ250mm.
B. specifications
ITEMS |
Specifications |
Max.swim over bed |
Φ500mm |
Max.swim over carriage |
Φ280mm |
Max.length of work piece |
1000mm |
Range of spindle speed |
24 levels speed change |
Spindle bore |
Φ82mm |
Taper of spindle bore |
1:20/ Φ 90 |
Stations of tool carrier |
4/6/8/or gang-type tool carrier |
Min.setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8m/min,(X) cross 4m/min |
Taper of taikstock quill |
MT5 |
Max.range of tailstock quill |
150mm |
Motor power |
7.5KW |
Packing size(lenght×width×height) |
2400 mm×1400 mm×1740mm |
Net weight |
2600/2700kg |
C. instructions of other devices:
Brands of standard configuration of CNC |
GSK and KND |
Structure style of spindle |
24-levels gear shifting |
Protective cover and door |
metal plate cover and double protective door |
Position of CNC system |
on the right side, right-left move |
lighting system |
standard T8 fluorescent lamp |
Cooling system |
water cooling |
Lubrication system |
automatic lubrication controlled by microcomputer |
Brands of motor-driven tool carrier |
Hongda and Sanhe |
Type of cabinet base |
separated type |
