Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale

Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale photo-1

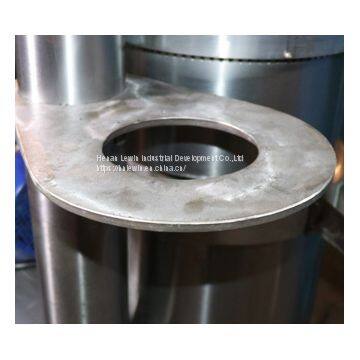

Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale photo-2

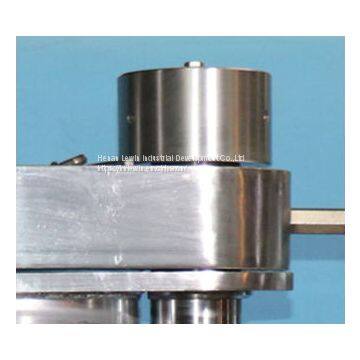

Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale photo-3

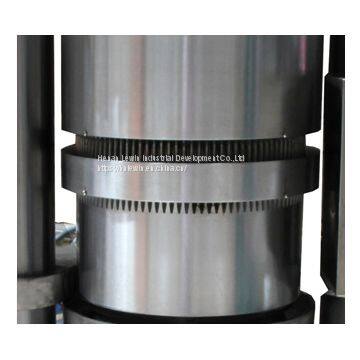

Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale photo-4

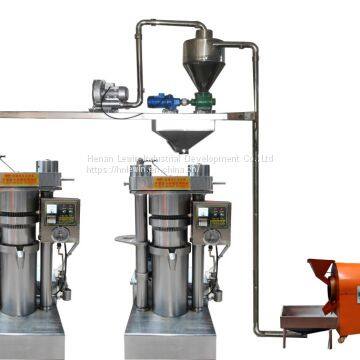

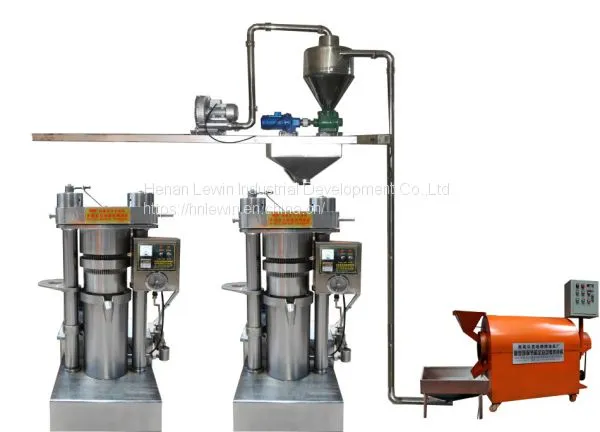

Professional Cold Press Hydraulic Small Olive Oil Press Machine for Hot Sale photo-5
US$ 4500 - 5500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lewin
Place of Origin:
China
Model Number:
6 YY-16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,Qingdao,Guangzhou
Delivery Detail:
5 days
Brand Name Lewin
Place of Origin China
Model Number 6 YY-16
Type Cold & Hot Pressing Machine
Certification CE ISO
After-sales Service Provided No overseas service provided
Weight 1600 kg
Dimension(L*W*H) 860*1060*1660(mm)
Production Capacity 97%-99%
Voltage 380 V
Usage Olive Oil
Condition New
Power(W) 2.2/4.8 kw (3 phase/single)
Automatic Grade Automatic

The 6YY series automatic hydraulic oil press machine has many advantages: easy to operate, high oil press rate, rare to replace wearing parts and can be eaten directly. This oil press is the most advanced equipment which can replace of the manual operation of the sesame oil.

Detailed Images

The following is the specific introduction:

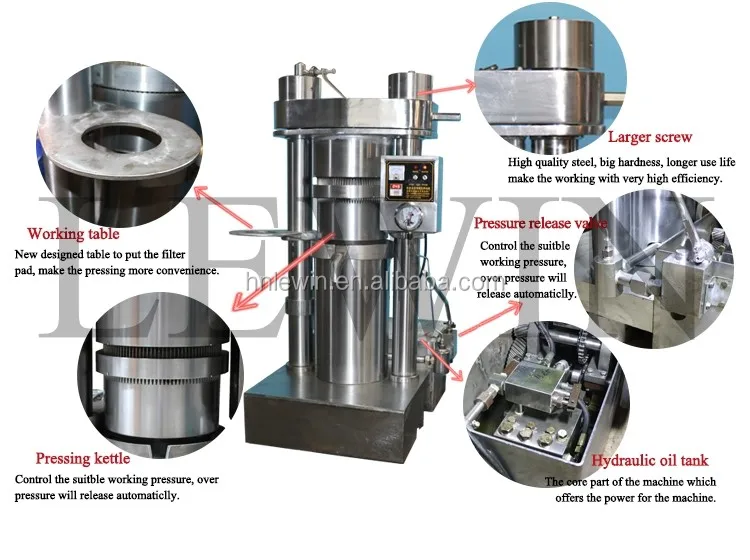

Main engine includes base,upright,top plate,oil drip pan,nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

Raw material

This automatic oil making machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed, avocado and other oil crops.

If you need to process other raw materials, please cantact me to ensure.

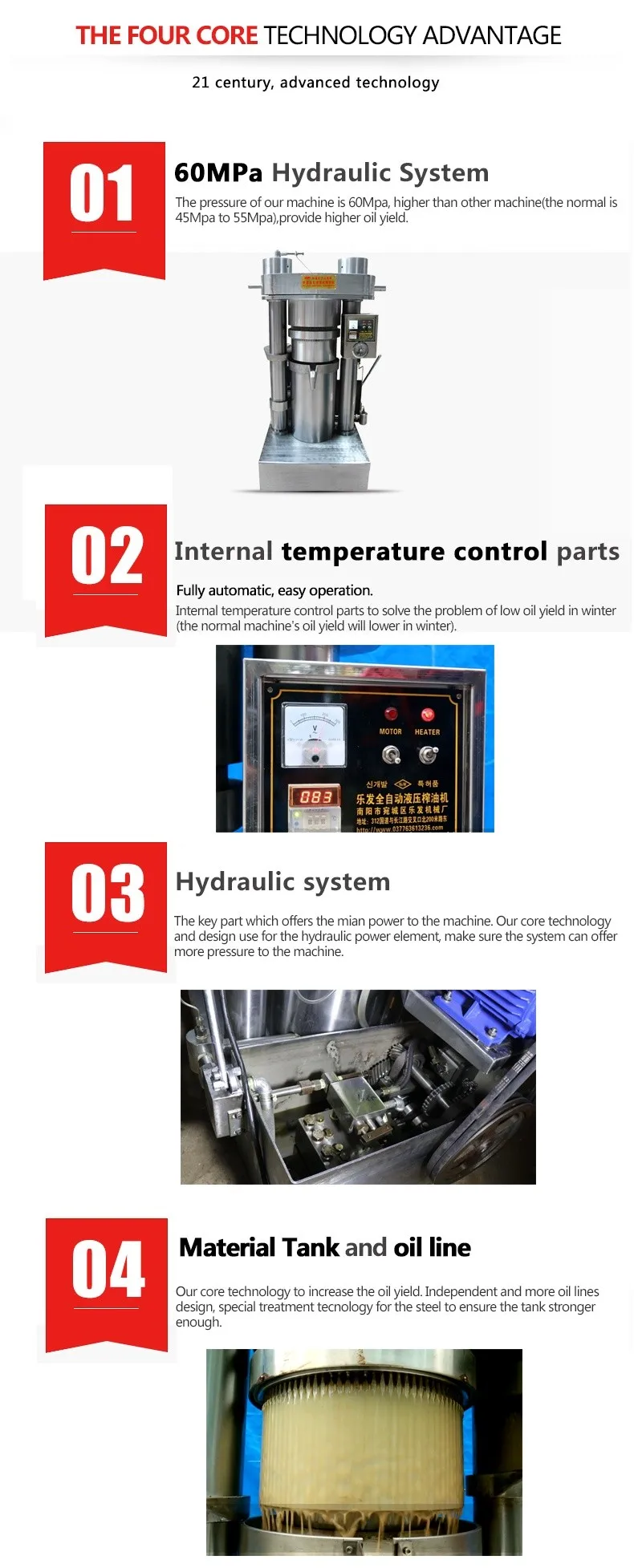

Main Features
1. The pressure of our machine is higher than others, provide higher oil yield.
2. Internal temperature control parts to solve the problem of low oil yield in winter.

3. The capacity is the quantity of raw material that machine could process in one time.

Main technical parameter

Model
Capacity
(kg/batch)
Working
pressure
Weight
(kg)
Voltage
Power
(3phase/
single)
Package
size(mm)
6YY-8
8.5
60Mpa
920
380V
1.1/2.2kw
780*1000*
1580
6YY-11
11
60Mpa
1060
380V
1.1/2.2kw
780*1040*
1710
6YY-13
13.5
60Mpa
1230
380V
2.2/4kw
820*1081*
1750
6YY-16
16
60Mpa
1600
380V
2.2/4.8kw
940*1140*
1810
6YY-20
20
60Mpa
1750
380V
2.2/4.8kw
940*1160*
1800
6YY-23
23
60Mpa
2300
380V
3.0/5.0kw
1040*1240*
1920

We have professional packing and transportation team to serve you.

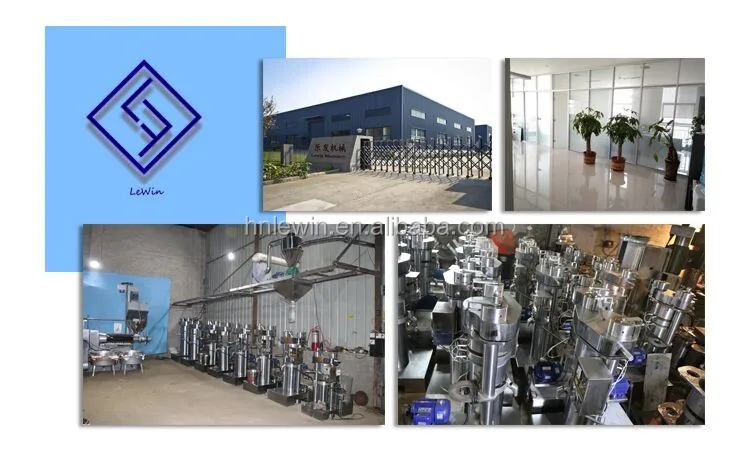

Since1998, Henan Lewin Industry Development Co., Ltd was found officially registered under Henan Companies Registry.It is a firm which has the ability for Manufacture,Research&Development, Sale and Export. Our mainproducts are hydraulic oil press machine, spiral oil press machine, the accessory equipment for the oil press machine and other machine.

After-service:
1). The equipment guarantee period is one year, During guarantee period, the seller will provide maintenance free service.(Except the breakdown and destroy caused by person and force majeure)
2). After receiving the inquiry for repairing the engineer of sell party will solve by phone and email, if necessary the engineer will go to solve the problem on the spot, the buyer should pay daily salary $100, also pay technical visa cost, round trip tickets, rooms and meals.

If you have any question, please feel free to contact us.
