WELCOME TO KAIBOCNC: www.kaibocnc.en.china.cn

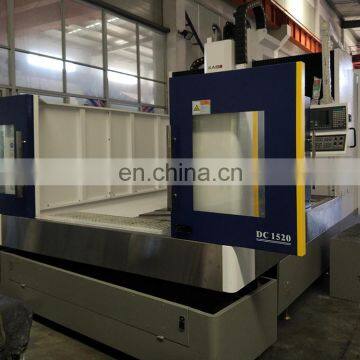

| SPECIFICATION/MODEL | DC1520 |
| Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | ±0.01mm |
| X,Y,Z Axis Travel | 1500×2000×720mm |
| Table Size | 2000×1500mm |
| Z to space height | 900mm |
| Max. Loading | 3000kg |
| Engraving processing Max. power consumption | 380v/220v/30KVA |
| Spindle Motor Power | BT40-11kw |
| X/Y/Z Axis Motor | 4000w/4000w/4000w |
| Spindle Speed | 8000rpm(12000rpm) |
| Max. Engraving speed | 8m/min |
| Tool Holder | BT40 Shank |
| Servo Motor | AC servo motor |
| Weight | 15000kg |
| Dimensions | 5000×3040×3230mm |
| CNC Controller System | Syntec 21MA |
| Standard Accessories | Rectangular linear roller guide GH55-55 - Hiwin/Taiwan |
| Ball Screw 6310 - Hiwin/Taiwan | |
| Servo Motor 4kw - Yaskawa/Japan | |
| Servo Motor Drives 2000w - Yaskawa/Japan | |
| Servo Direct mechanical spindle 11kw/BT50 - Jianchunlong/Danquan/Taiwan | |
| Electronic Hand-Wheel EHDW-BA5S-1 - Yuanzhan/Taiwan | |
| Spindle Bearing - SKF/Germany | |
| Electronic System - Schneider/Germany | |
| Water Gun | |
| Oil Coolant Machine |
Packed In Wooden Case, Standard packing For Machining Center
Technical Services
Kaibo, being both a Machining Center manufacturer and trading company in China, can also provide you with the best solutions for your production line and your business in or from China. We manufacture a wide range of CNC Machines, such as:
-CNC Engraving Milling Machine
-CNC Lathe
-CNC Vertical Machine Center
-Tapping Machine
-Gantry Milling Machine
Customer Service
1.Kaibo guarantees continuous and ongoing technical support for all of our products, and an technical enquiry of our machines can be replied within 24 hours.
2.Spare parts, in their majority, can be supplied within 48hours after confirmation.
3.The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
4.At Kaibo we provide our Customers With all the details, including machinery details, their operation, and technical support.
1. Technician available for training and installation at customer's company;
2. Internet service by sending emails and Videos,communicating online or calling. English Software.
1. Which CNC Machine is suitable for me?
Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
Such as steel,aluminium alloys,metal, etc.
3. Does your company accept customized offer, we have special need?
KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong CNC Machine research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
1. With over 21 years manufacturing experience of CNC Machines, Over 50 Core Engineers are growing up with factory over 20years.
2. Each Machine is strictly in accordance with ISO and CE. KAIBOCNC has been named China famous brand, designated as the national standard setter by GB.
3. Quality Assurance, Timely delivery, Quick Service. Each year produce over 2000pcs,360 staffs,26 after-service teams.
