DC-1090A TNew condition and New engraving milling machine
Standard features:
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
8. Main axle:8kw high precision variable frequency main axle. It matches with mechanical main-axle.
Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
WELCOME TO KAIBOCNC: www.kaibocnc.en.china.cn
| SPECIFICATION/MODEL | DC1090A(ER) |
| Positioning accuracy | 0.01/300mm |
| Repeat positioning accuracy | ±0.01mm |
| X,Y,Z Axis Travel | 1000×900×400mm |
| Table Size | 1000×900mm |
| Z to space height | 550mm |
| Max. Loading | 1000kg |
| Engraving processing Max. power consumption | 380v |
| Spindle Motor Power | 8kw |
| X/Y/Z Axis Motor | 1300w/1300w/1300w |
| Spindle Speed | 15000rpm |
| Max. Engraving speed | 8m/min |
| Tool Holder | Er32 (¢3.17-¢20) |
| Servo Motor | AC servo motor |
| Weight | 5000kg |
| Dimensions | 2900×2140×2700mm |
| CNC Controller System | Syntec 21MA |
| Standard Accessories | Rectangular linear roller guide RG45-45 - Hiwin/Taiwan |
| Ball Screw 4010-Hiwin/Taiwan | |
Servo Motor 1300w - Yaskawa/Japan | |
Servo Motor Drives 1300w - Yaskawa/Japan | |
High Speed Electronic Spindle 8kw - Bohua or Xingchen / China | |
Spindle Inverter 8kw Inovance/China | |
| Electronic Hand-Wheel EHDW-BA5S-1 - Yuanzhan/Taiwan | |
| Spindle Bearing - IBC/Germany | |
Electronic System Schneider/Germany | |
| Water Gun | |
| Oil Coolant Machine |

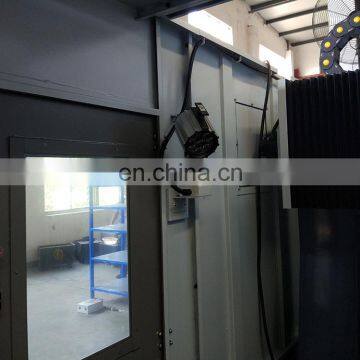

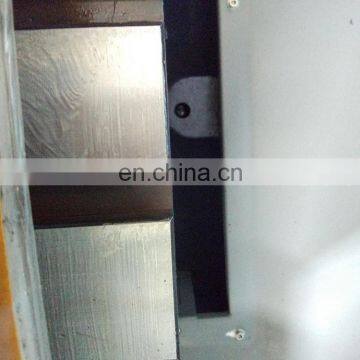

Pictures of Machine
Packed In Wooden Case, Standard packing For High Speed Engraving Machine
Technical Services
Kaibo, being both a CNC Machine manufacturer and trading company in China, can also provide you with the best solutions for your production line and your business in or from China. We manufacture a wide range of CNC Machines, such as:
-CNC Engraving Milling Machine
-CNC Lathe
-CNC Vertical Machine Center
-Tapping Machine
-Gantry Milling Machine
Customer Service
1.Kaibo guarantees continuous and ongoing technical support for all of our products, and an technical enquiry of our machines can be replied within 24 hours.
2.Spare parts, in their majority, can be supplied within 48hours after confirmation.
3.The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
4.At Kaibo we provide our Customers With all the details, including machinery details, their operation, and technical support.
1. Which CNC Machine is suitable for me?
Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
Such as steel,aluminium alloys,metal, etc.
3. Does your company accept customized offer, we have special need?
KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong CNC Machine research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
1. With over 20 years manufacturing experience of CNC Machines, Over 50 Core Engineers are growing up with factory over 20years.
2. Each Machine is strictly in accordance with ISO and CE. KAIBOCNC has been named China famous brand, designated as the national standard setter by GB.
3. Quality Assurance, Timely delivery, Quick Service. Each year produce over 2000pcs,360 staffs,26 after-service teams.
