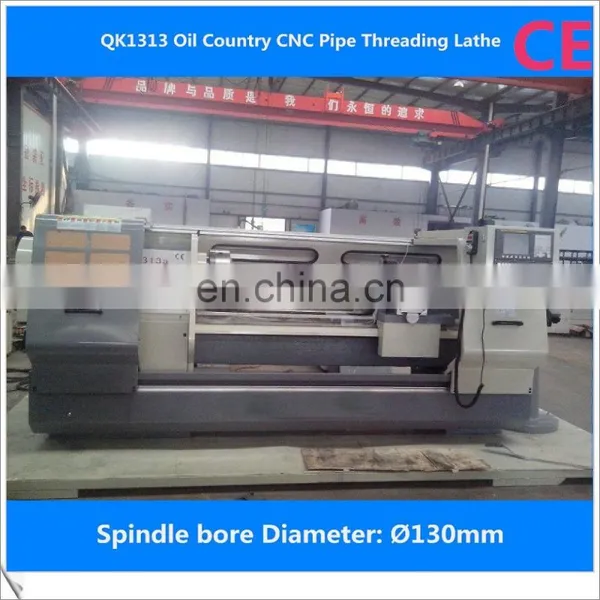

Qk13 series cnc pipe threading lathe machine
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
520 |
Width of the bed |
mm |
420 |
Spindle bore diameter |
mm |
132 |
Tube outside diameter |
mm |
30~126 |
Center distance |
mm |
1000/1500/2000/3000 |
Max. swing over crossslide |
mm |
280 |
Spindle taper |
|
140/1: 20 (C11 ) |
Range of spindle speed |
r/min |
20~800 |
Power of main motor |
KW |
7.5 |
Chuck OD/ ID |
mm |
400/130 |
Three-jaw chuck |
mm |
K11-400D |
Distance between two chucks |
mm |
1450 |
Inch thread range and number of species(thread per inch) |
|
0.1~254 |
Metric thread range and number of species |
mm |
0.1~300 |
X axis/Z axis max. travel |
mm |
320/1500 |
X axis/Z axis travel speed |
m/min |
3~5/ 4~6 |
X axis/Z axis min. travel unit |
mm |
0.001 |
X axis/Z axis repeatability accuracy |
mm |
0.016/0.020 |
Tailstock sleeve diameter |
mm |
75 |
Tailstock sleeve taper |
|
MS 5# |
Sleeve travel |
mm |
170 |
Arbor cross-section size |
mm |
25×25 |
4-station Electric tool post |
|
SLD10204W square turret: 190×190mm |
Overall dimensions(L×W×H) |
mm |
3400×1600×1900 |
Grosswet weight |
t |
3.4/3.2 |
S.N |
Name |
Remark |
1 |
4 jaw chuck |
2 sets |
2 |
tool kit |
1 set |
3 |
Sizing blocks and foundation bolts |
1 set |
4 |
documents |
1 set |
kinds of colors for your choice/can be customized
