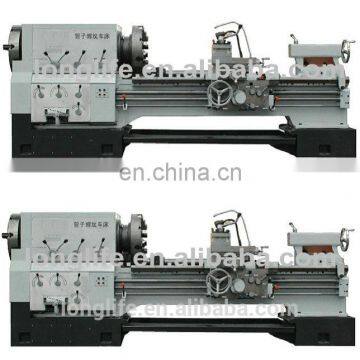

Q1320a x1500 oil pipe thread cutitng lathe
It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming. Metric, inch, diametrical pitch, module thread.The bed is made of high-grade cast iron
The bed is undergoing surface quenching, the hardness can be HRC50.
Specifications |
Unit |
Q1320A |
Max swing dia.over bed |
mm |
630 |
Max swing dia. over tool post |
mm |
345 |
Distance between two center |
mm |
1500 |
Diameter range of pipe thread |
mm |
50~200 |
Width of bed |
mm |
490 |
Spindle bore |
mm |
Φ200 |
Range of spindle speeds |
rpm |
14~750 |
Steps of spindle speed |
|
18 steps |
Range/kinds of metric threads |
mm |
1~224mm/52kinds |
Range/kinds of inch threads |
|
2~28T.P.I/40kinds |
Range/kinds of module threads |
mm |
0.25~56mm/41kinds |
Range /kinds of diametrical pitch thread |
|
1~112T.P.I/38kinds |
Pitch of lead screw |
mm |
12.7 |
Max.longitudinal travel of saddle |
mm |
|
Power of main motor |
kW |
11 |
Overall dimensions(LxWxH) |
mm |
4000x1449x1393 |
Net weight |
kg |
3500 |
S.N |
Item |
Size |
Quantity |
1 |
4-jaw chuck |
Φ520 |
2 sets |
2 |
Chuck plate |
|
2 |
3 |
Center |
|
1 |
4 |
Chuck wrench |
|
2 |
5 |
Foundation bolts |
M22X400 |
6 |
6 |
Nuts |
M22 |
6 |
7 |
Washer |
Φ22 |
6 |
8 |
General tools |
|
1 set |
9 |
V-belt |
|
5 |
10 |
Rear support |
Φ50~Φ190 |
1 set |
