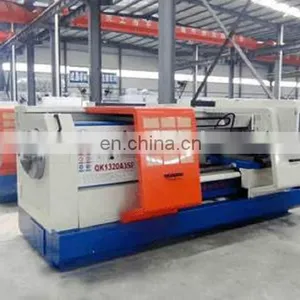

QK1320x1500 oil country cnc lathe for pipe threading
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
640 |
Width of the bed |
mm |
550 |
Spindle bore diametder |
mm |
200 |
Tube outside diameter |
mm |
60~190 |
Center distance |
mm |
1500 |
Max. swing over crossslide |
mm |
330 |
Servo spindle speed |
r/min |
6~30/20~120/80~450 |
Servo main motor power |
KW |
15(50Hz) |
Chuck OD/ ID |
mm |
500/200 |
Three-jaw chuck |
mm |
K11-500D |
Distance between two chucks |
mm |
1600 |
Inch thread range and number of species(thread per inch) |
|
0.1~254 |
Metric thread range and number of species |
mm |
0.1~400 |
X axis, Z axis max. travel |
mm |
380, 1400 |
X axis, Z axis travel speed |
m/min |
3~5, 4~6 |
X axis, Z axis min. travel unit |
mm |
0.001, 0.001 |
X axis, Z axis repeatability accuracy |
mm |
0.016, 0.025 |
Tailstock sleeve diameter |
mm |
115 |
Tailstock sleeve taper |
|
MT #6 |
Sleeve travel |
mm |
270 |
Arbor cross-section size |
mm |
32×32 |
4-station Electric tool post |
|
LDB4-120(6163A) square turret: 240×240mm |
Overall dimensions(L×W×H) |
mm |
4200×2000×2000 |
Gross, wet weight |
t |
5.4 |
No |
Item |
Remark |
1 |
3-jaw chuck K11-Ø500D |
2 sets |
2 |
Morse dead center MT5# |
1 pc |
3 |
Sizing block |
6 pcs |
4 |
Chuck wrench |
1 pc |
5 |
Tool post wrench |
1 pc |
6 |
Open-end wrench 17-19 22-24 27-30 |
1pc/each |
7 |
Hex key wrench 5,6, 8,10 |
1pc/each |
8 |
Foundation bolts |
6 pcs |
9 |
Compact disk |
1 pc |
10 |
Communication wire |
1 pc |
11 |
Lighting system |
yes |
12 |
Cooling system |
yes |
13 |
Hand - held electronic pulse wheel |
yes |
14 |
CNC manual |
1 set |
15 |
Instruction manual |
1 set |
16 |
Certificate of conformity |
1 set |
17 |
Packing list |
1 set |
Pls send inquiry to me for optioanl accessories and other further information about such cnc pipe threding lathe machines.
the surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. the slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
There are two types of speed change: Manual and step less.
Set up self lubrication system, and easy to maintain.
