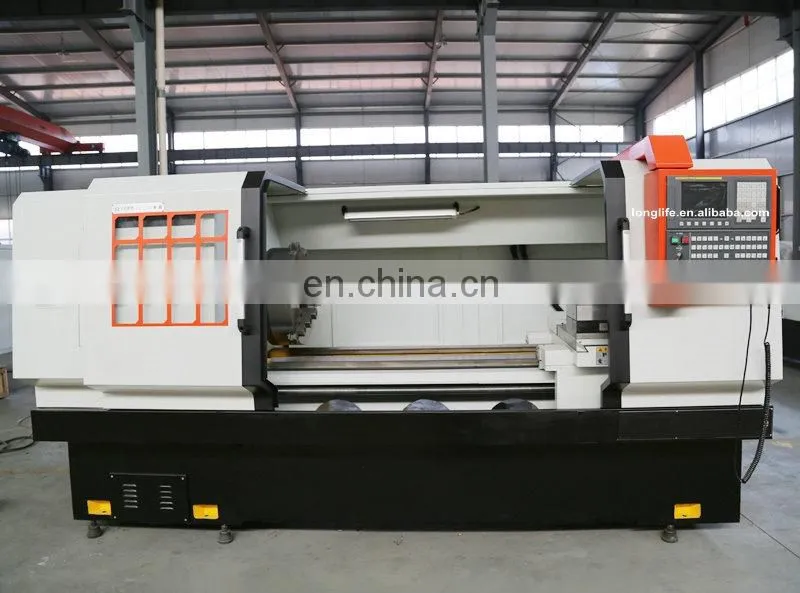

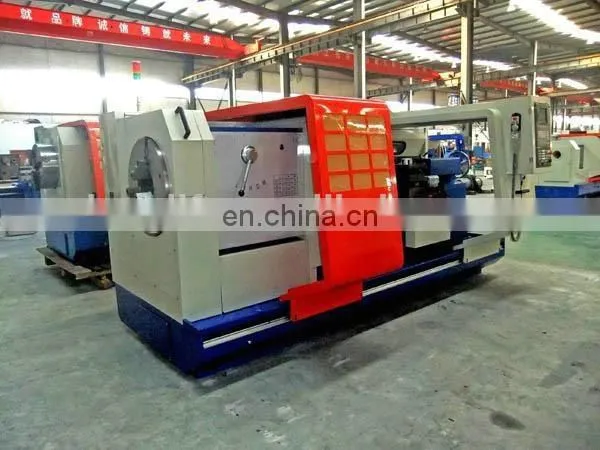

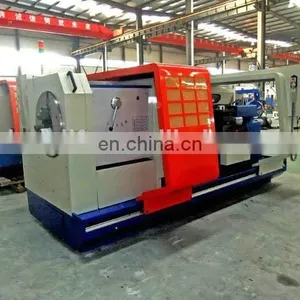

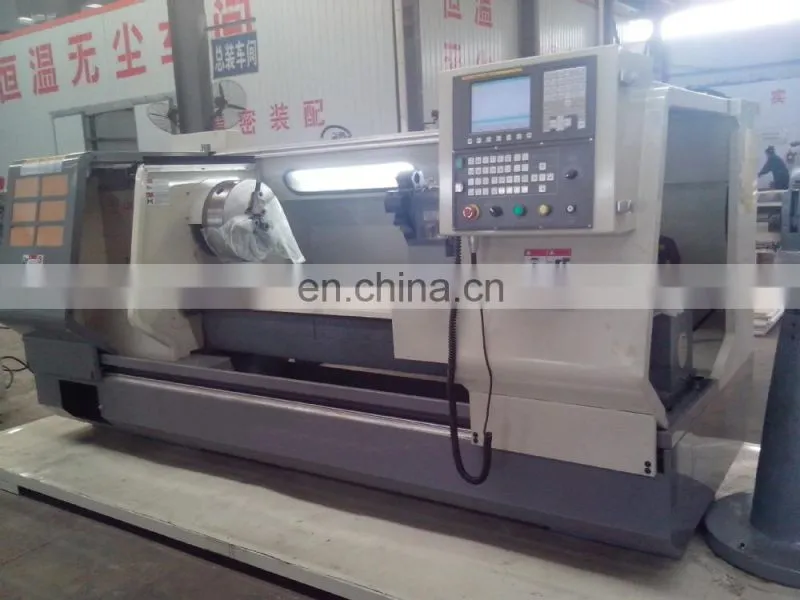

QK1322x1000 cnc pipe threading lathe machine
the surface of the slide rail of the bed is treated by the super audio quench, which can be endurable and wear-resisting. the slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
There are two types of speed change: Manual and step less.
Set up self lubrication system, and easy to maintain.
Specifications |
Unit |
QK1322 |
Max. cutting length |
mm |
1000 |
Max. swing over bed |
mm |
Φ630 |
Spindle bore diameter |
mm |
Φ225 |
Range of spindle speed |
rpm |
20~460(Manual) 16~500(stepless speed change) |
Min. setting unit of X/Z-axis |
mm |
0.001 |
Main motor power |
kW |
11 |
Cooling pump |
kW |
0.125 |
Tool stations |
|
4 |
Max. travel of X-axis |
mm |
490 |
Max. travel of Z-axis |
mm |
920 |
Rapid speed (X/Z axis) |
m/min |
6000 |
Chuck diameter |
mm |
400 |
Positioning accuracy |
mm |
X: 0.030 Z: 0.040 |
Repositioning accuracy |
mm |
X: 0.012 Z: 0.020 |
Net weight of machine |
kg |
4500 |
Overall dimensions of machine |
mm |
3100×1600×1800 |
No |
Item |
Brand |
1 |
3-jaw chuck K11-Ø500D |
2 sets |
2 |
Morse dead center MT5# |
1 pc |
3 |
Sizing block |
6 pcs |
4 |
Chuck wrench |
1 pc |
5 |
Tool post wrench |
1 pc |
6 |
Open-end wrench 17-19 22-24 27-30 |
1pc/each |
7 |
Hex key wrench 5,6, 8,10 |
1pc/each |
8 |
Foundation bolts |
6 pcs |
9 |
Compact disk |
1 pc |
10 |
Communication wire |
1 pc |
11 |
Lighting system |
yes |
12 |
Cooling system |
yes |
13 |
Hand - held electronic pulse wheel |
yes |
14 |
CNC manual |
1 set |
15 |
Instruction manual |
1 set |
16 |
Certificate of conformity |
1 set |
17 |
Packing list |
1 set |
Pls send inquiry to me for optioanl accessories and other further information about such cnc pipe threading lathe machines.
kinds of colors for your choice/can be customized
