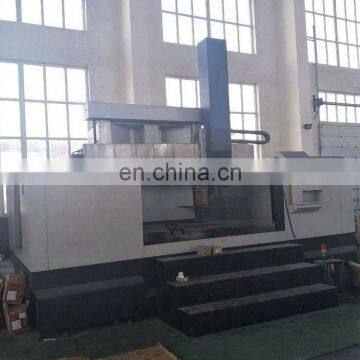

CK51 cnc vertical lathe machine/cnc tornos vertical
C5116(Ø1600mm) Hot-sale DRO Vertical Lathe Machine
CK52225(Ø2500mm) Double-column CNC Vertical Lathe
1. I.D. & O.D. cylindrical turning,
2. end-facing,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
6. boring, drilling, reaming, etc.
Such cnc vertical lathe machine has following features:
1. single column vertical lathe;
2. CE Certificate and kinds of cnc controllers for your choice: Fanuc, Siemens, GSK and so on;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
6.Hydraulic system of the machine is adopted for table hydrostatic system, table speed change, ram balancing system, cross rail clamping & unclamping and lubrication system.
Specifications |
Unit |
CK5112 |
CK5116 |
CK5123 |
CK5125 |
CK5132 |
Max. turning diameter |
mm |
1250 |
1600 |
2300 |
2500 |
3150 |
Max. working height of workpiece |
mm |
1000 |
1000/1200/1400/1600 |
1350 |
1600/2000 |
2000/2500 |
Max. weight of workpiece |
T |
4 |
5 |
8 |
10 |
10/32 |
Table diameter |
mm |
1000 |
1400 |
2000 |
2250 |
2830 |
Speed-step of table |
r/min |
Two steps stepless |
Two steps stepless |
Two steps stepless |
|
0.63~63 |
Speed range of table |
r/min |
3.2~250 |
2.5~200 |
2.5~100 |
2.5~80 |
2.5~80 |
Max. torque of table |
KN.m |
10 |
16 |
32 |
63 |
63 |
Power of main motor |
KW |
22 |
30 |
37 |
DC55 |
DC55 |
Max. cutting resistance of tool post |
KN |
12 |
16 |
20 |
32 |
Right:40 left:35 |
Max. cutting resistance of right tool post |
N |
|
|
|
|
|
Max. cutting resistance of left tool post |
N |
|
|
|
|
|
Travel of ram of railhead |
mm |
800 |
800 |
800/1000 |
1000 |
1000/1300 |
Feed range of tool post (X,Z axis) |
mm/min |
2000 |
2000 |
2000 |
3000 |
3000 |
Feeding steps of railhead (X,Z axis) |
|
Stepless |
stepless |
stepless |
stepless |
stepless |
Table guide |
|
|
|
|
Hydrostatic |
Hydrostatic |
Feed range of tool post (X, Zaxis) |
mm/min |
0.1~2000 |
0.1~2000 |
0.1~2000 |
0.1~2000 |
0.1~500 |
Sectional size of tool bar |
mm |
32×32 |
32×32 |
32×40 |
40×40 |
50×50 |
Max. travel of crossbeam |
mm |
700 |
700/900/1100/1300 |
890 |
1250/1650 |
1650/2150 |
Moving speed of the crossbeam |
mm/min |
440 |
440 |
440 |
350 |
350 |
Power of motor for going up and down of crossbeam |
KW |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
Positional accuracy (X, Zaxis) |
mm |
0.03/1000 |
0.03/1000 |
0.03/1000 |
X Z 0.015/1000 |
X Z 0.03/1000 |
Temperature range(°) |
|
0~40° |
0~40° |
0~40° |
0~40° |
0~40° |
Control system |
|
Siemens802D or Optional |
Siemens 802D or Optional |
Siemens 802D or Optional |
Siemens 802DSL or Optional |
Siemens 802D or Optional |
kinds of colors for your choice/can be customized
No cover:
full-cover for cnc vertical lathe machine

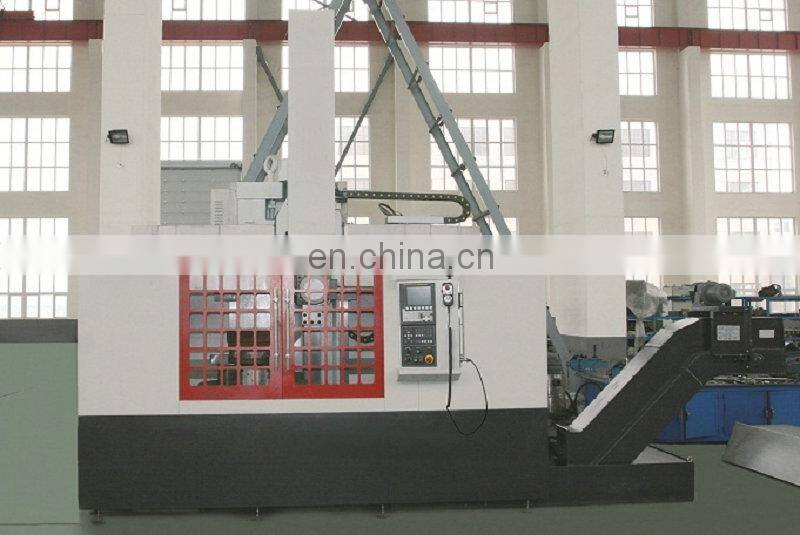

semi-cover for cnc vertical lathe machine
