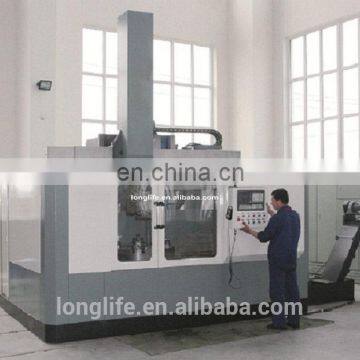

CK5112 cnc vertical lathe machine for sale
C5116(Ø1600mm) Conventional Vertical Lathe Machine
1. I.D. & O.D. cylindrical turning,
2. end-facing,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
6. boring, drilling, reaming, etc.
Such cnc column vertical lathe has following features:
1. single column vertical lathe;
2. CE Certificate and kinds of cnc controllers for your choice: Fanuc, Siemens, GSK and so on;
3. This machine is a nc vertical lathe. It chooses FANUC OI-MATE TD as its numerical control system. It has a Vertical tool rest, which the Maximum machining diameter is 1250 mm, the workbench 1000 mm in diameter, the Maximum working height is 900 mm. Its Stepless speed changing gear shift is 16. The variable speed is convenient,quick and reliable. The Gear is setted in the system. 40Cr is used in all gear grinding gear,which has high rotation accuracy, low noise characteristics.
4. This machine is suitable for high speed steel tools and carbide cutting tool machining all kinds of non-ferrous metal, black metal and part of the non-metallic materials.
5. People can complete the processing procedure on the machine: turning the inside and outside of the cylinder and plane; All kinds of curve face; turning the inside and outside of the cone surface; Grooving and cutting;
Specifications |
Unit |
Parameter |
Cutting tool post biggest diameter |
mm |
1250 |
Worktable diameter |
mm |
1000 |
The artifact maximum height |
mm |
900 |
maximum workpiece weight |
t |
3.2 |
Table speed range |
r/min |
6.3~200 |
Table speed series |
Grade |
16 |
maximum table torque |
Kn/m |
25 |
Head feeding series |
|
stepless |
Vertical tool rest degree of limit |
º |
30 |
Vertical tool rest maximum cutting force |
KN |
25 |
RAM horizontal travel |
mm |
700 |
RAM vertical travel |
mm |
650 |
Ram movement |
mm |
650 |
Rest fast moving speed |
mm/min |
3000 |
Beam Lift Speed |
mm/min |
580 |
Tool rod section size (length * width) |
mm |
30×40 |
Main motor power |
kW |
22 |
Nc axes |
|
X, Z Biaxial linkage |
Location accuracy |
mm |
0.03 |
Repositioning resolution |
mm |
0.015 |
Processing dimensional accuracy |
|
IT 7 |
Machine weight (about) |
T |
9.5 |
numerical control system |
|
FANUC 0i MATE TD |
Controlled Axes |
|
2 Axle |
compounding axis number |
|
2 Axle |
Nc axes |
|
X, Z linkage |
Interpolation |
|
Straight line and arc |
Compensation |
|
With reverse clearance, pitch error compensation and tool wear compensation and nose radius compensation |
Coordinate setting |
|
Workpiece coordinate setting |
displayer |
|
10.4"LCD Color display in English |
multiplying power |
|
Fast rate |
controller |
|
Built-inprogrammablecontroller |
programme |
|
Drawing size programming directly |
feed |
|
With a manual electronic hand wheel feed (hand pulse generator) |
Alarm |
|
Machine tools and operating all kinds of alarm display |
port |
|
External computer interface RS - 232 - c, CF card and Ethernet front-end ports |
Real time copying |
|
Figure trace real-time display |
manual feed |
|
Hand pulser X, Z axis |
kinds of colors for your choice/can be customized
Semi-cover
C5112(Ø1250mm) Conventional Vertical Lathe
