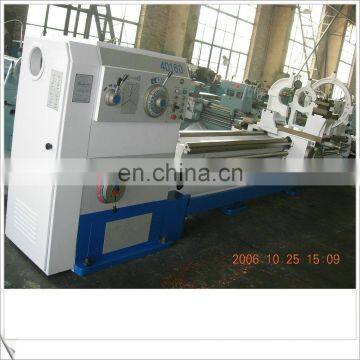

CWA62100x8000 heavy duty lathe machine
1. I.D. & O.D. cylindrical turning,
2. end face turning,
3. I.D. & O.D. cone turning,
4. grooving,
5. threading;
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. with GAP and gap lathe can process the deformation parts;
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
5. threads types: Metric, inch, diametrical pitch, module thread
6. DRO is avaible;
7. the bed is made of high-grade cast iron, undergoing surface quenching.
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
1000 |
Swing over carriage |
mm |
720 |
Max. swing over gap |
mm |
1350 |
Gap width from chuck |
mm |
470 |
Distance between centers |
mm |
8000 |
Max. Cutting length |
mm |
7800 |
Width of bed |
mm |
600 |
Support capacity between centers |
Kg |
4000 |
Spindle hole through |
mm |
100 |
Spindle nose |
|
A2-11 |
Spindle speed |
rpm |
5 ~ 630 with 4 Steps |
Number of feeds and range |
|
64 |
Number and range of longitudinal |
mm |
0.08 ~ 9.6 |
Number and range of cross slide |
mm |
0.04 ~4.8 |
Compound slide |
mm |
0.02 ~ 2.4 |
No. & range of metric threads |
mm |
56 Kinds 1 ~ 120 |
Max. Travel of cross slide |
mm |
600 |
No. and range of metric threads |
mm |
45 Kinds 1~120 |
No. and range of inch threads |
T. P. I. |
56 Kinds 30~1 / 4 |
No. and range of module threads |
|
56 Kinds 0.5~60 |
No. and range of diametric threads |
D. P. |
56 Kinds , 60 ~ 0.5 |
Max. travel of tool post |
mm |
250 |
Tool shank section |
mm |
45 x 45 |
Taper in tailstock quill |
|
Morse No. 6 |
Dia. Of tailstock sleeve |
mm |
120 |
Max. Travel of tailstock quill |
mm |
250 |
Power of main motor |
kW |
18.5 |
Power of rapid motor |
kW |
1.5 |
Power of pump motor |
kW |
0.55 |
Power of cooling motor |
kW |
0.15 |
Net dimension of the machine |
mm |
10150×1600×1600 |
Packing dimension of the machine |
mm |
10500×1900×1950 |
N. W./ N. W. |
Kg |
9800/11250 |
Name |
Size |
|
4 Jaw chuck |
Dia. of 800 mm |
1 set |
Steady rest |
Range 40 ~ 470 mm |
1 set |
Follow rest |
Range 30 ~ 120 mm |
1 set |
Dead center |
|
2 Pcs |
Reducing sleeve |
|
1 Pcs |
Living center |
|
1 set |
Cooling system |
|
Yes |
Work light |
|
Yes |
Special tools |
|
Yes |
1. Big steady rest(Ø300~Ø720mm)
2. Taper turning device
3. Support with two rollers
4. Motorized tailstock
5. DRO Display for X/Z directions
kinds of colors for your choice/can be customized
