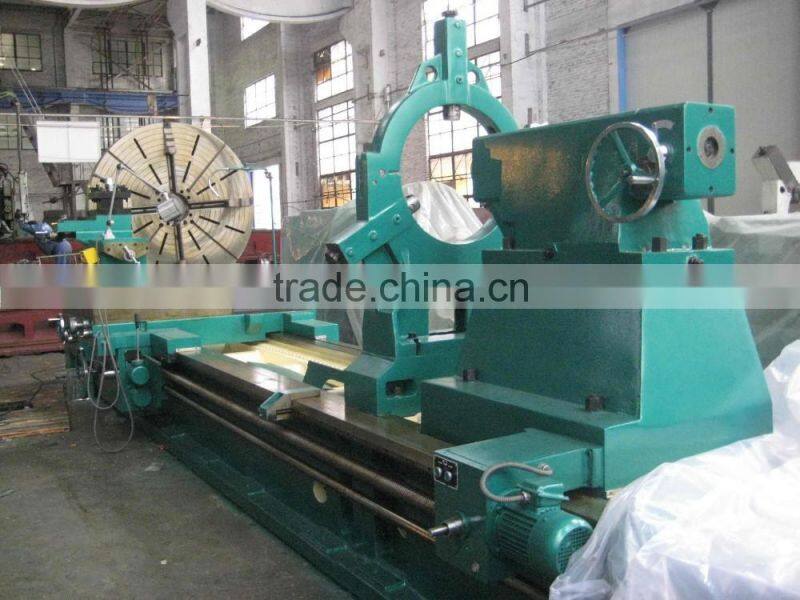

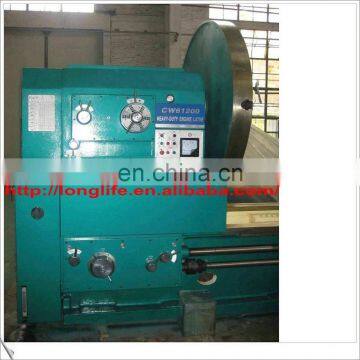

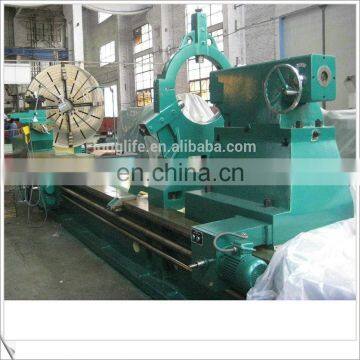

CW61200x6000 heavy duty metal lathe
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. The compound rest slide can be used individually by power for cutting a 300mm taper surface, or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
5. mainly used for:
5.1. I.D. & O.D. cylindrical turning,
5.2. end face turning,
5.3. I.D. & O.D. cone turning,
5.4. grooving,
5.5. threading;
Specifications |
Unit |
Parameter |
Swing over bed |
mm |
2000 |
Swing over carriage |
mm |
1600 |
Distance between centers |
mm |
6000 |
Max. Cutting length |
mm |
5800 |
Width of bed |
mm |
1100 |
Support capacity between centers |
T |
10 |
Spindle hole through |
mm |
100 |
Spindle nose |
|
A2-15 |
Taper of spindle |
|
Metric No. 140 |
Spindle speed |
rpm |
2.5 ~ 250 with 21 steps |
Number of feeds and range |
|
97 |
Longitudinal Feed |
mm/rev |
0.1~20 |
Cross Feed |
mm/rev |
0.05~6 |
Travel of middle slide |
mm |
400 |
Travel of tool post |
mm |
200 |
Travel of X-Axis |
mm |
820 |
Number and range of longitudinal |
mm |
0.064 ~ 12 |
Number and range of cross slide |
mm |
0.032 ~ 6 |
Number and range of top slide |
mm |
0.016 ~ 3 |
Rapid traverse |
mm / min |
Longitudinal 3740 |
Rapid cross slide |
mm / min |
1870 |
Rapid top slide |
mm / min |
935 |
No. and range of metric threads |
mm |
56 kinds, 1~120 |
No. and range of inch threads |
T. P. I. |
56 kinds, 30~1 /4 |
No. and range of module threads |
|
46 kinds, 0.5~60 |
No. and range of diametric threads |
D. P. |
48 kinds, 56 ~ 1/2 |
Tool shank section |
mm |
45 x 45 |
Taper in tailstock quill |
mm |
80, 1:7 |
Dia. Of tailstock sleeve |
mm |
160 |
Max. Travel of tailstock quill |
mm |
300 |
Power of main motor |
kW |
AC30 |
Power of rapid motor |
kW |
1.5 |
Power of pump motor |
kW |
0.55 |
Power of cooling motor |
kW |
0.15 |
Net dimension of the machine |
mm |
|
Packing dimension of the machine |
mm |
|
N. W./ N. W. |
kg |
|
Name |
Size |
Note |
4-jaw chuck |
DIA. 1600 mm |
1 Set |
Steady rest |
Range 220 ~ 630 mm |
1 Set |
Dead center |
|
2 Pcs |
Reducing sleeve |
|
1 Pcs |
Living center |
|
1 Set |
Cooling system |
|
Yes |
Work light |
|
Yes |
Special tools |
|
Yes |
Pls send inquiry to me for optioanl accessories and other further information about such lathe machines.
kinds of colors for your choice/can be customized
