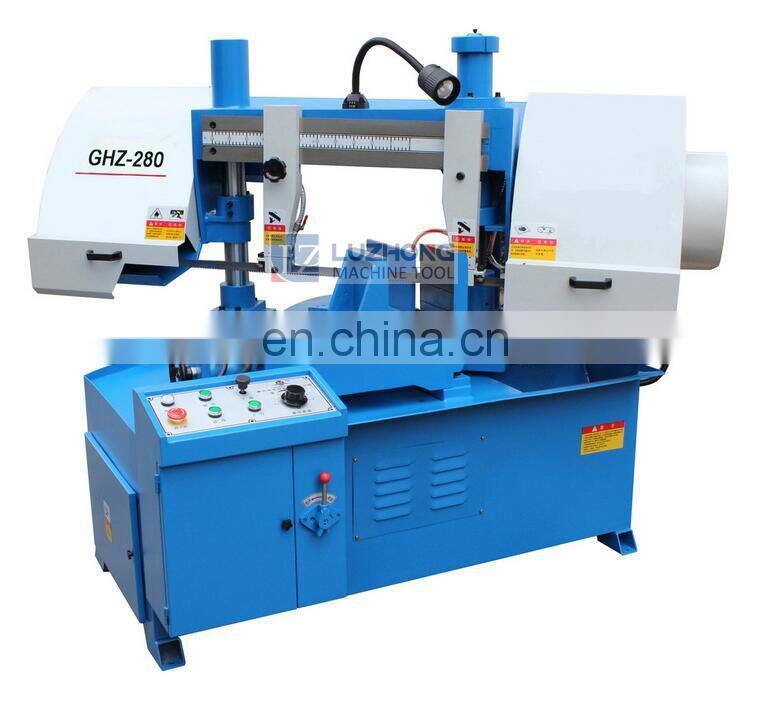

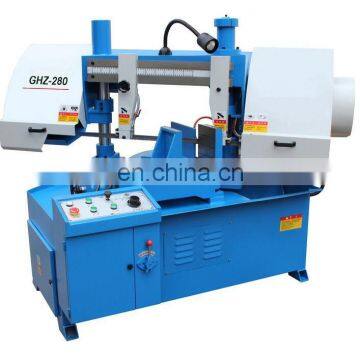

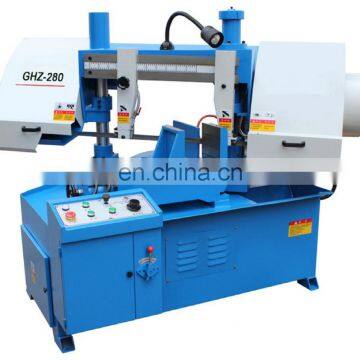

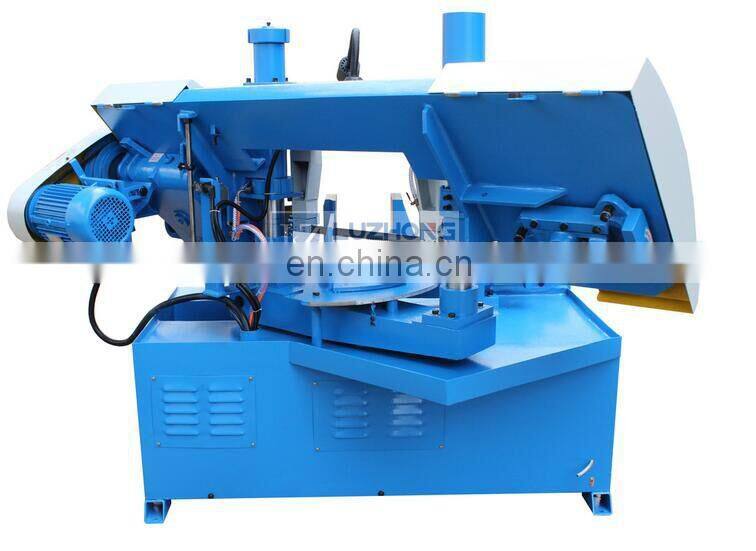

Power Saw GHZ-280 Horizontal Band Saw Cut Machine
The main performance characteristics:
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed,
5. Stable performance, high efficiency, suitable for bulk material sawing.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
roduct main technical parameters:
Main technical parameters |
|
unit |
GHZ-280 |
GHZ-350 |
|
Cutting capacity 90°
|
Rectangular
|
mm |
320×280 |
380×350 |
|
Circular
|
mm |
280 |
350 |
|
|
Square
|
mm |
280 |
350 |
|
|
Cutting capacity 45°
|
Rectangular
|
mm |
280X240 |
350x280 |
|
Circular
|
mm |
200 |
280 |
|
|
Square
|
mm |
200 |
280 |
|
|
Cutting capacity 30°
|
Rectangular
|
mm |
280X240 |
350x300 |
|
Circular
|
mm |
240 |
3000 |
|
|
Square
|
mm |
240 |
300 |
|
|
Linear speed
|
M/min |
27,45,69 |
27,45,69 |
|
|
Blade size
|
mm |
3505x27x0.9 |
4115x34x1.1 |
|
|
Main motor power
|
|
2.2kW |
3kW |
|
|
Hydraulic motor power
|
|
0.55kW |
0.55kW |
|
|
Cooling pump power
|
|
0.04kW |
0.04kW |
|
|
External form size
|
mm |
1900×1400×1500 |
2100×1500×1600 |
|
|
Machine weight
|
kg |
700 |
850 |
|
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
