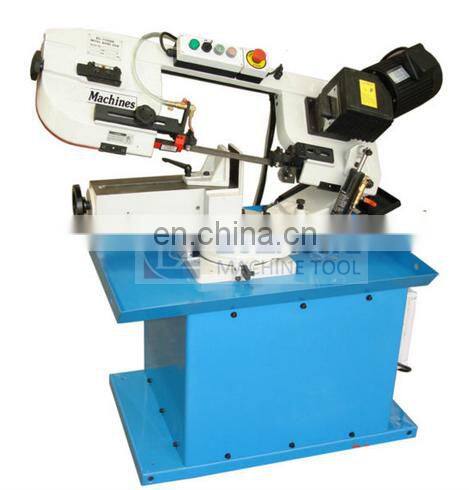

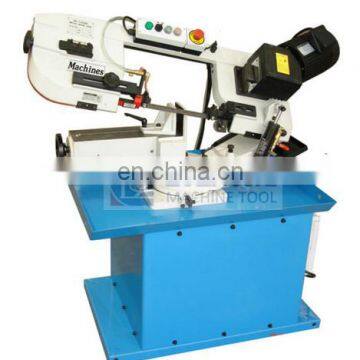

China Small BS-712GDR Low Cost Metal belt sawing machine for sale
The main performance characteristics:
1. The maximum processing capacity is 7",
2. The belt drive has fourth gear cutting speed (indicated by the letter N);
3. The belt drive has third th gear cutting speed (indicated by the letter G);
4. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
5. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
6. Can the vertical horizontal dual-use ;
7. The fall speed of the saw bow is controlled by the hydraulic cylinder;
8. The machinery with base a roller, can be free to move ;
9. With stop device (After the machine sawing and cutting will automatically stop );
10. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
11. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
12. Block device (fixed sawing length);
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
Main technical parameters |
BS-712GDR |
||
Machining capacity |
@90°Round steel |
178mm(7″) |
|
@90°Square steel |
178×305mm(7″×12″) |
||
@45°Round steel |
127mm(5″) |
||
@45°Square steel |
85×140mm(3.33″×5.5″) |
||
Saw cutting speeds |
@ 50HZ |
29.59.87MPM |
|
@ 60HZ |
34.70.104MPM |
||
Saw blade size |
19×0.9×2362mm |
||
Motor power |
750W1HP(3PH),1.1Kw1.5HP(1PH) |
||
Drive |
Gear |
||
Package size |
137×73×138cm |
||
NW/GW |
210/260kg |
||
The Package of China Small BS-712GDR Low Cost Metal belt sawing machine for sale is export standard plywood case with iron plate below ,very strong and durable .
The China Small BS-712GDR Low Cost Metal belt sawing machine for sale will be shipped to customers by land freight or sea freight .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
