Horizontal Band Sawing Machine BS-712N Band Saw Machine

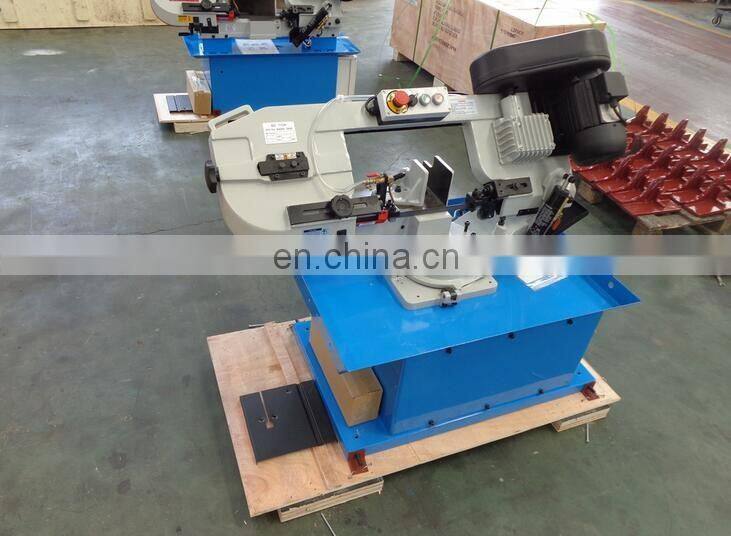

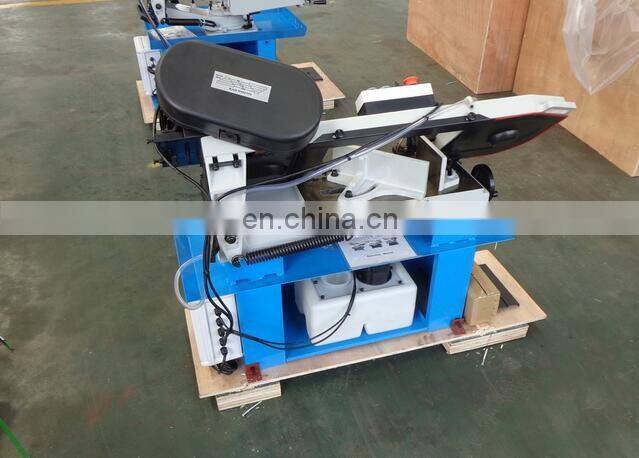

Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-1

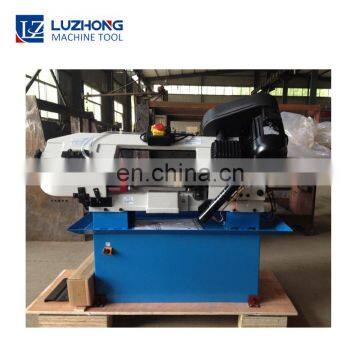

Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-2

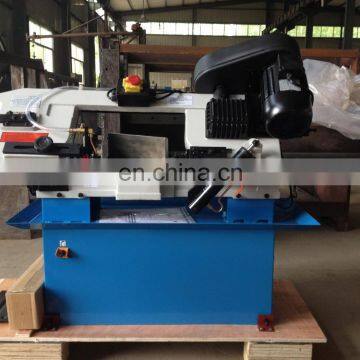

Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-3

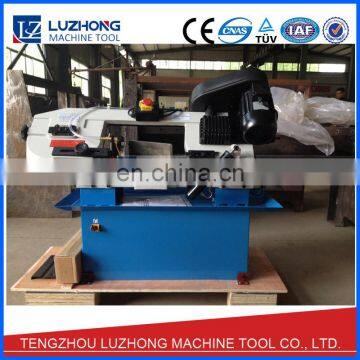

Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-4

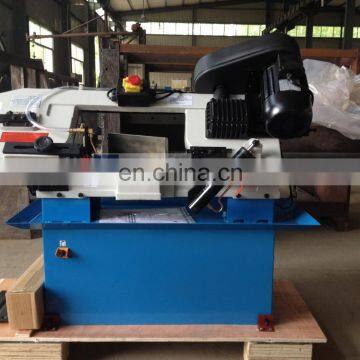

Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-5
Horizontal Band Sawing Machine BS-712N Band Saw Machine photo-6
US$ 780 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong Machine
Place of Origin:
Shandong, China
Model Number:
BS-712R
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China Horizontal Band Sawing Machine BS-712N Band Saw Machine
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong Machine
Place of Origin Shandong, China
Model Number BS-712R
After-sales Service Provided No overseas service provided
Condition New
Product Description



                        Horizontal Band Sawing Machine  BS-712N Band Saw Machine





          Horizontal Band Sawing Machine BS-712N Band Saw Machine        Horizontal Band Sawing Machine BS-712N Band Saw Machine





Features:

 It is the precise sawing machine features European design and large size.

The European design has the advantage of double-speed selection. It is characterized by manual/automatic operation mode.

1.The saw bow can rotate around.

2.The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).

3.The falling speed of saw bow is controlled by hydraulic cylinder.

4.It is equipped with a block feeder (with fixed sawing length).

5.The European design band saw has sizing device (the machine will automatically stop after sawing the materials).

6.The hydraulic system of the European design band saw automatically controls the up and down of saw bow and the tightness and looseness of the jaw.

7.The cooling system of the European design band saw can prolong the service life of saw blade and improve the precision of the workpiece.

8.The European design band saw has an optional PLC control system.





 Specifications:

Model

BS-460G

BS-712N

BS-712R

BS-712G

BS-712GR

BS-712GDR

Max. Capacity

Circular     @ 90o

330mm

178mm(7")

178mm(7")

178mm(7)”

178mm(7")

178mm(7)”

Rectangular @90 o

460 x 250mm

178 x 305mm

178 x 210mm

178x305mm

178 x 210mm

 178x210mm

Circular     @ 45 o

305mm

127mm (5")

127mm (5")

127mm (5”)

127mm (5")

127mm (5”)

Rectangular @ 45 o

305 x 250mm

120 x 125mm

85x 140mm

120x115mm

85x 140mm

85x140mm

Blade speed   @60HZ

48/96 MPM

27, 41, 59, 78 MPM

27, 41, 59, 78 MPM

34,70,104MPM

34, 70, 104 MPM

34,70,104MPM

Blade speed   @50HZ

40/80 MPM

22, 34, 49, 64 MPM

22, 34, 49, 64 MPM

29,59,87 MPM

29, 59, 87 MPM

29,59,87 MPM

Blade size(mm)

27x0.9x3960

19.05 x 0.8x 2362

19.05 x 0.8 x 2362

20x0.9x2362

19.05x0.8x2362

20x0.9x2362

Motor

1.5/2.2KW

750W (1HP), 50/60HZ

750W (1HP), 50/60HZ

1.1kW(1.5HP) 50/60HZ

 750W (1HP), 50/60HZ

750W(1HP) 50/60HZ

Drive

Gear

V-Belt

V-Belt

Gear

 Gearbox

Gear

Packing size(cm)

2310x107x163

125x45x115

132x77x115

140x56x115

132x77x115

132x77x130

N.W. / G.W.

750/830KG

180 / 227KG

190 / 240KG

170/195KG

210/260KG

210/260KG



Detail diplay





Horizontal Band Sawing Machine BS-712N Band Saw Machine                      Horizontal Band Sawing Machine BS-712N Band Saw Machine
