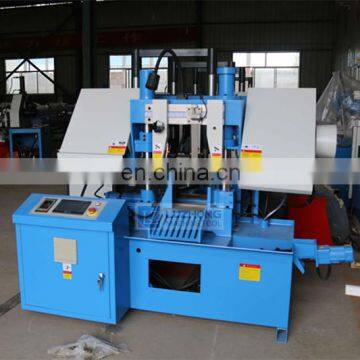

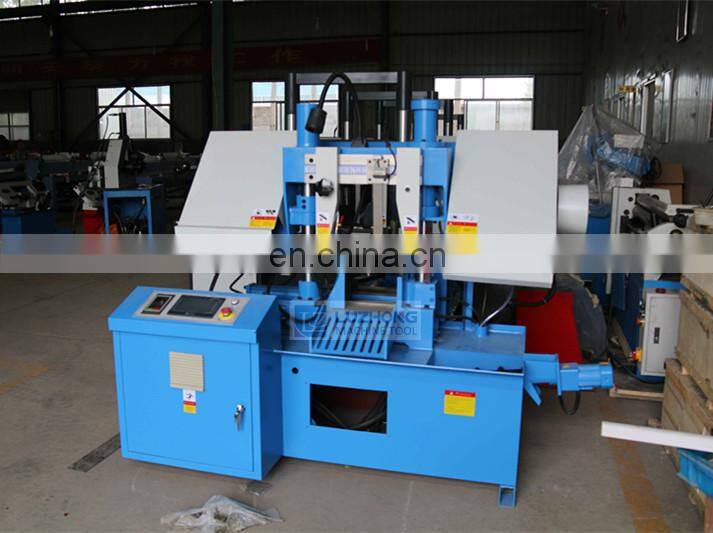

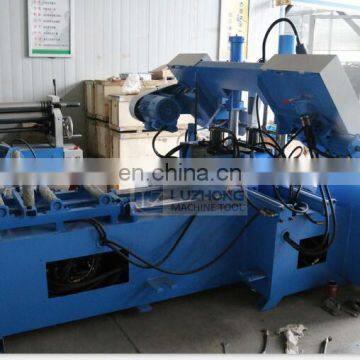

Automatic Metal Band Sawing Machine GHS4250 CNC Band Saw Price
Feature :
extremely rigid dual-column cast-iron construction
PlC control for a fully automated sawing process
easy to use touch sreen monitor for easy and quick recording of saw
parameters
The feed unit's linear measuring system ensure long term maximum
accuracy
Feed of the saw frame is infinitely variable via a hydraulic throttle valve
extra rigid ,adjustable saw blade guide
hydraulic workpiece clamping with clamping pressure control and
bundle vise are included in the standard equipment
Standard equipment :
PlC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system
Work lamp
Operation manual

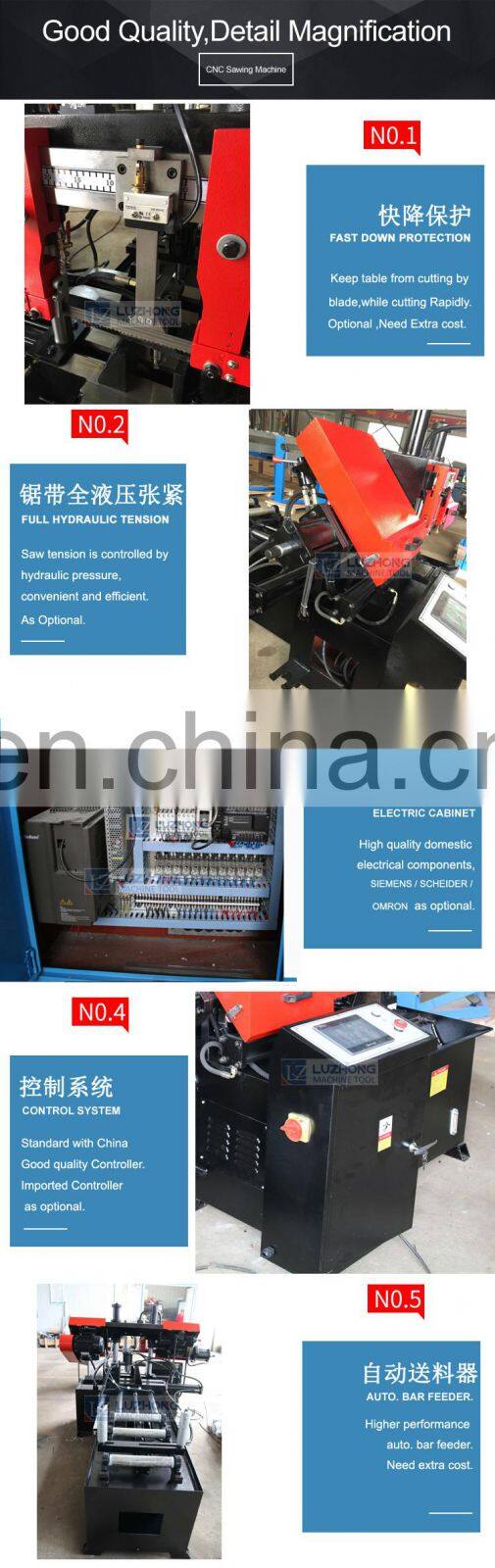

Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment
Product main technical specifications:
Specifications |
GHS4250 |
|
Sawing range |
Round steel |
Φ500mm |
Square material |
500×500mm |
|
saw blade size |
5800×41×1.3mm |
|
Saw blade speed |
274569m/min |
|
Motor power |
Main motor |
5.5kw |
Oil pump motor |
0.75kw |
|
Cooling pump motor |
0.09kw |
|
Sawing machine external form size |
2800×1400×1900mm |
|
|
|

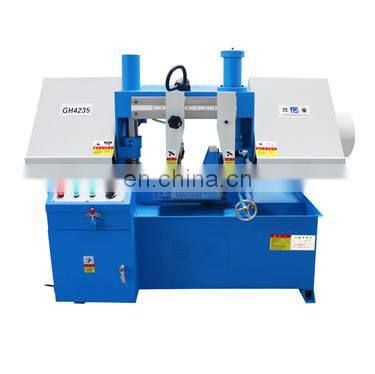

| BS-712N Band Sawing Machine | GH4235 Band Sawing Machine |
|
|

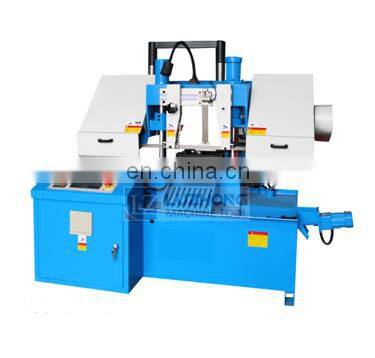

| BS-280G Band Sawing Machine | GHS4250 CNC Band Sawing Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
