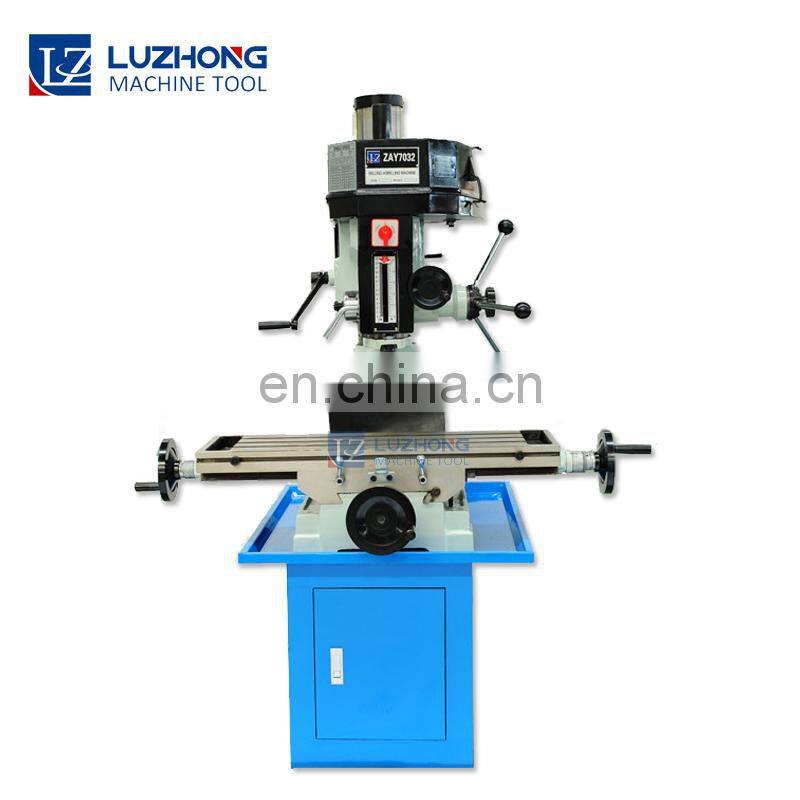

Mini ZAY7020/7032/7040/7045 Borehole Drilling and Milling Machine
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:
Model |
ZAY7020 |
ZAY7032 |
ZAY7040 |
ZAY7045 |
|
Drilling capacity |
20mm |
32mm |
40mm |
45mm |
|
Face milling capacity |
63mm |
63mm |
80mm |
80mm |
|
End milling capacity |
20mm |
20mm |
32mm |
32mm |
|
Distance from spindle nose to table |
435mm |
450mm |
450mm |
450mm |
|
Min.distance from spindle axis to column |
181.5mm |
203.5mm |
203.5mm |
203.5mm |
|
Spindle travel |
85mm |
130mm |
130mm |
130mm |
|
Spindle taper |
M.T.3 or R8 |
M.T.3 or R8 |
M.T.4 or R8 |
M.T.4 or R8 |
|
Step of spindle speed |
12 |
12 |
12 |
12 |
|
|
Range of spindle speed
|
50Hz |
100-2200 r.p.m |
80-2080 r.p.m |
80-2080 r.p.m |
80-2080 r.p.m |
60Hz |
120-2640 r.p.m |
100-2500 r.p.m |
100-2500 r.p.m |
100-2500 r.p.m |
|
Swivel angle of headstock (horizontally) |
360° |
360° |
360° |
360° |
|
Table size |
520×160mm |
800×240mm |
800×240mm |
800×240mm |
|
Forward and backward travel of table |
140mm |
175mm |
175mm |
175mm |
|
Left and right travel of table |
290mm |
500mm |
500mm |
500mm |
|
Motor Power |
0.55KW |
0.75KW |
1.1KW |
1.5KW |
|
Net weight/gross weight |
130kg/190kg |
280kg/330kg |
283kg/333kg |
285kg/335kg |
|
Packing size |
620×750×1000mm |
1020×820×1160mm |
1020×820×1160mm |
1020×820×1160 |
|
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
