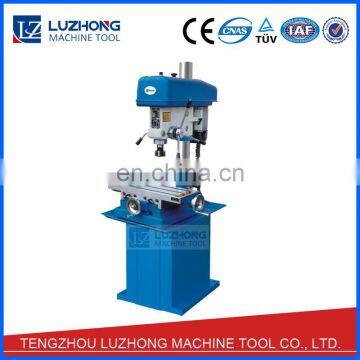

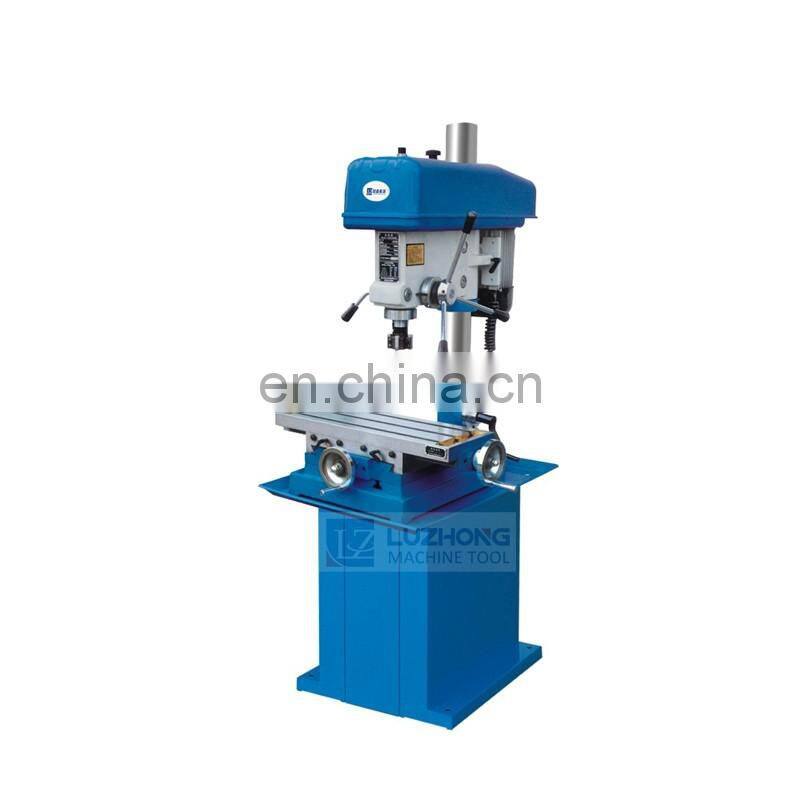

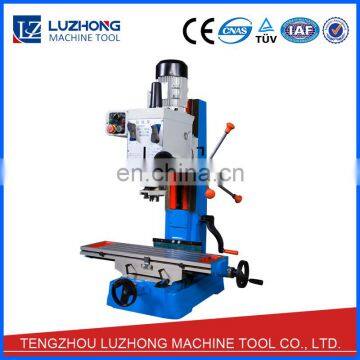

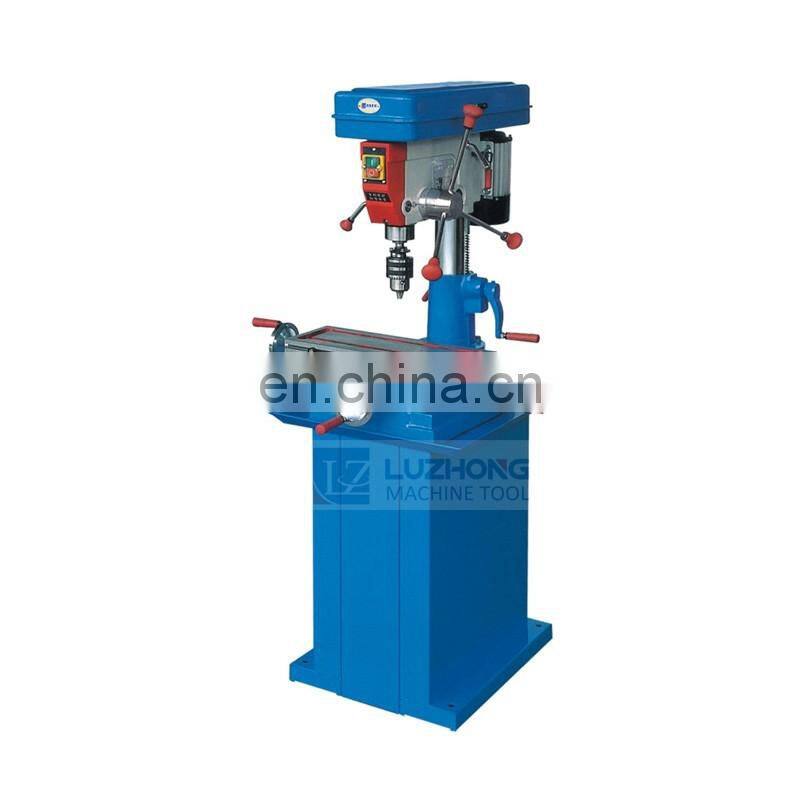

Drilling And Milling Machine ZX7016Round Column Drill And Mill Machine
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
Specifications |
ZX7016 |
ZX7025 |
ZX7032 |
ZX7045 |
Max. Drilling capacity (mm) |
16 |
25 |
31.5 |
45 |
Max. face mill capacity (mm) |
40 |
63 |
80 |
80 |
Diameter of vertical milling (mm) |
10 |
13 |
22 |
28 |
Diameter of column (mm) |
/ |
/ |
/ |
/ |
Spindle travel (mm) |
80 |
110 |
130 |
120 |
Distance spindle axis to column generating line(mm) |
182 |
240 |
202 |
260 |
Max. Distance spindle nose to table (mm) |
360 |
510 |
460 |
475 |
Spindle taper |
MT2 |
MT3 |
MT3 |
MT4 |
Spindle speeds range (r/min) |
320~3300 |
290~2150 |
100~2150 |
95~1600 |
Spindle speeds series |
12 |
5 |
12 |
6 |
Spindle feeds (mm/r) |
/ |
/ |
/ |
/ |
Dimension of worktable surface (mm) |
420×152 |
555×195 |
Standard : 730x210 select: 820x240 |
Standard : 730x210 select: 820x240 |
Table travel (mm) |
230×120 |
240×140 |
Standard :450×170 select: 540x170 |
Standard :450×170 select: 540x170 |
Dimension of base (mm) |
/ |
/ |
/ |
/ |
Overall height (mm) |
900 |
1130 |
1100 |
1050 |
Main motor (W) |
550 |
750 (6P) |
Single-phase:1100 Three-phase: 1500 |
Single-phase:1100 Three-phase: 1500 |
Coolant motor (W) |
/ |
/ |
/ |
/ |
G.W/N.W(Kg) |
100/75 |
190/160 |
285/250 |
318/278 |
Packing dimension (cm) |
65×58×77 |
87×67×102 |
97×77×124 |
97×77×116 |
