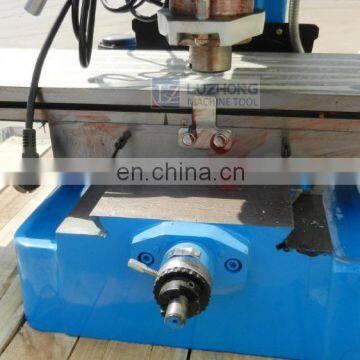

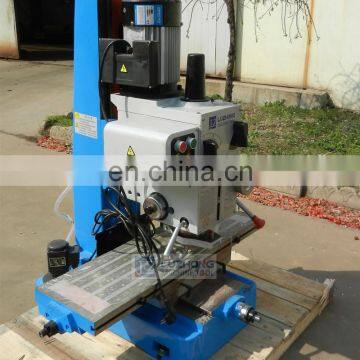

High quality ZX7045B Gear Head Auto Feed Drilling and Milling Machine
The main performance characteristics:
Reinforced type gear, transmission torque large
B1 type optional2-speed motor, spindle speed range widely.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
Specifications |
ZX7045B/ZX7045B1 |
Max. Drilling capacity (mm) |
cast iron:45/ Steel:32 |
Max. face mill capacity (mm) |
80 |
Diameter of vertical milling (mm) |
28 |
Spindle travel (mm) |
110 |
Distance spindle axis to column generating line (mm) |
260 |
Max. Distance spindle nose to table (mm) |
475 |
Spindle taper |
MT4 orR8 |
Spindle speeds range (r/min) |
50~1250/50~2500 |
Spindle speeds series |
6/12 |
Spindle feeds(mm/r) |
0.12 0.18 0.25 |
Dimension of worktable surface (mm) |
select: 820x240 Standard : 730x210 |
Table travel (mm) |
select: 540x170 Standard :450×170 |
Dimension of base(mm) |
605x588 |
Overall height (mm) |
1100 |
Main motor (W) |
Single-phase:1100 Three-phase: 1500 |
G.W/N.W(Kg) |
405/360 |
Packing dimension (cm) |
104×77×116 |
|
|
| ZX7045 Drilling and Milling Machine | ZAY7045FG/1 Drilling and Milling Machine |
|
|
| ZX6350C Drilling and Milling Machine | ZX7550CW Drilling and Milling Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
