Gear Type Pillar Vertical Drilling Machinery Z5035A Drill Machine
Product main technical specifications:
Model |
unit |
Z5035A |
Max. drilling capacity |
Mm |
35 |
Max. tapping capacity |
Mm |
M22 |
Distance spindle axis to column surface |
Mm |
590 |
Max. distance spindle nose to base |
Mm |
1150 |
Max. spindle travel |
Mm |
155 |
Spindle taper |
|
MT4 |
Number of speed step of the spindle |
Step |
12 |
Spindle speed range |
r/mm |
125-3030 |
Feed steps of the spindle |
degree |
3 |
Feed range of the spindle |
Mm/r |
0.1,0.2,0.3 |
Max. stroke of the worktable and its bracket |
Mm |
530 |

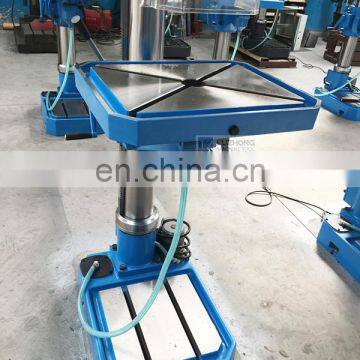

Rotation degree of worktable and its bracket in cross direction |
Degree |
±45° |
Working area of the worktable |
Mm |
500*420 |
Dia. of column |
mm |
120 |
Main motor power |
KW |
1.0/1.2 |
Max. external dimension |
Mm |
875*510*2140 |
N.W |
Kg |
430 |
|
|
|
| Z5035A Vertical Drilling Machine | Z5150 Vertical Drilling Machine | Z5150B-1 Vertical Drilling |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
