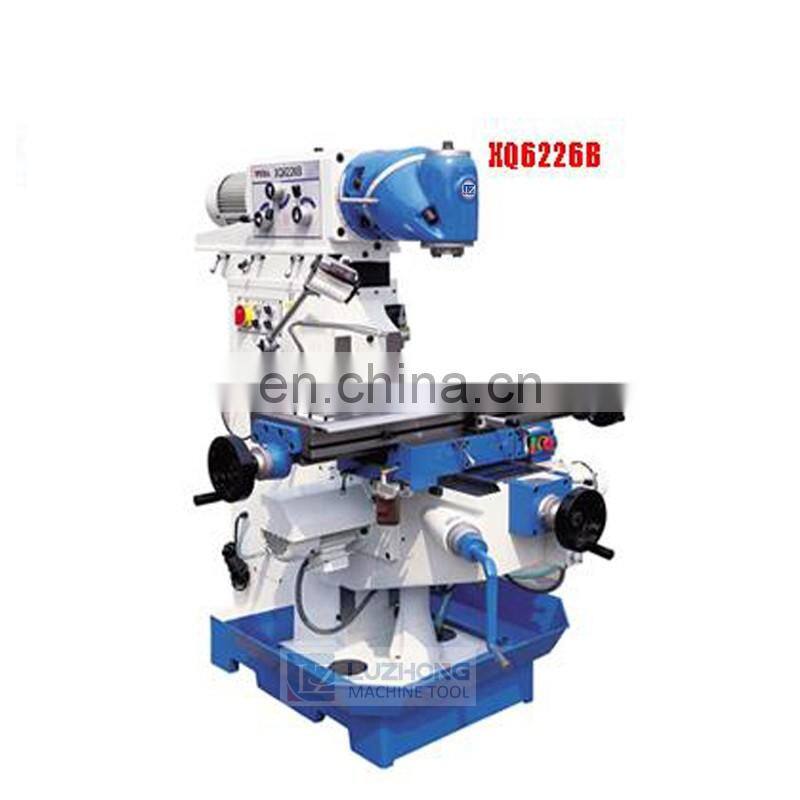

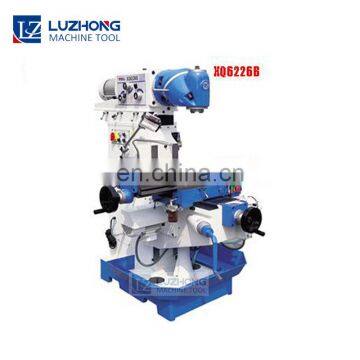

XQ6226B Universal Milling Machine for sale / Horizontal Milling Machine

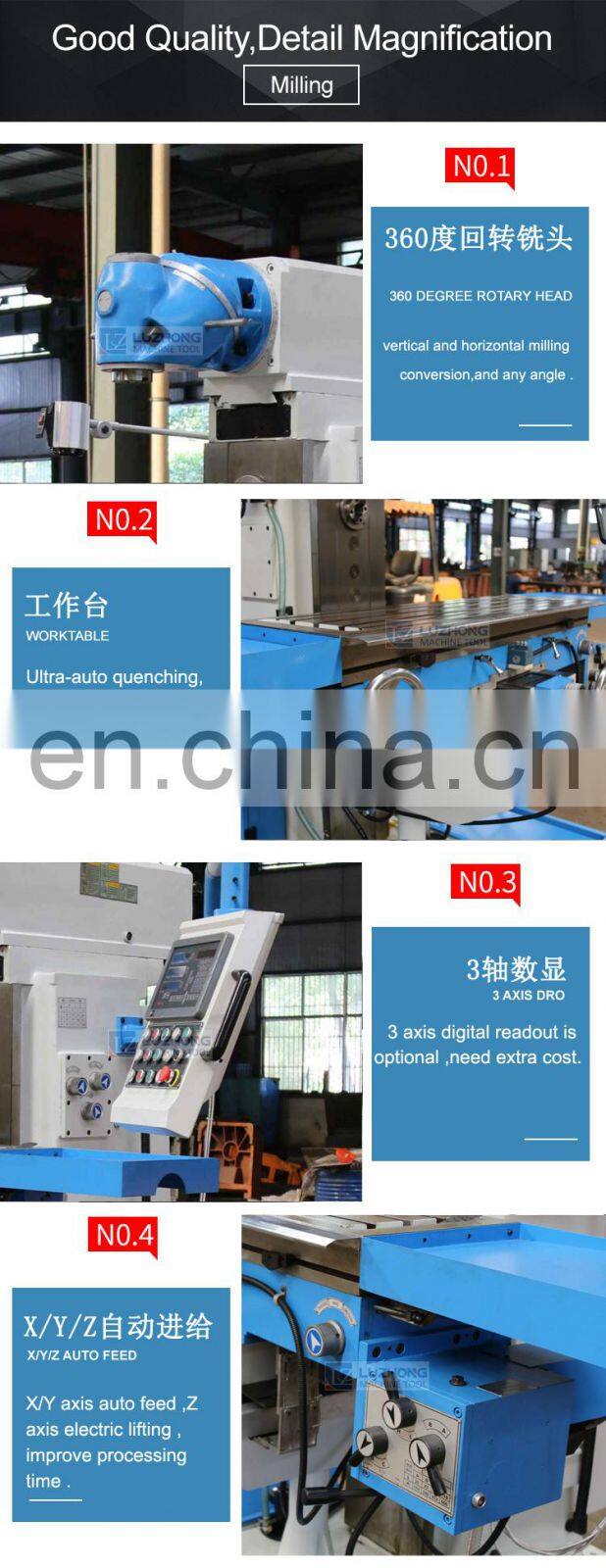

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer than the three section head has greatly improved.
7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
Specifications |
Units |
XQ6226B |
Table size |
mm |
1120x260 |
Table stroke |
mm |
600x270 |
Distance from spindle nose to table surface |
mm |
100-480 |
Max. end milling width |
mm |
125 |
Max. vertical milling dia. |
mm |
25 |
Spindle taper |
|
ISO40 |
Spindle speed range |
rpm |
45-1660 |
Swivel angle of swivel head |
|
360° |
Spindle motor power |
KW |
2.2 |
Overall dimensions |
mm |
1655x1500x1730 |
Machine weight |
Kg |
1480 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
Machine Model: Universal Milling Machine for sale / Horizontal Milling Machine XQ6226B
Type of package: Plywood case
Packaging size: 165.5x150x173 CM(one set in one case)
N.W./G.W.: 1480 KGS
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
