HQ500N HQ800N Small Combination mini lathe mill combo
- 100 Set / Sets per Month
- Any port in China
- T/T Credit Card
- HQ500V HQ800V Universal Combination mini mill lathe combo
- C6241 C6246 C6251 C6256 Horizontal gap bed lathe machine mini metal lathe
- CA6140 CA6240 Turning Lathe machine price metal lathe
- C6250B Mechanical lathe machine cheap metal lathe machine price
- CA6150 CA6250 Portable Lathe machines price small lathe
- CA6161 CA6261 High precision metal lathe tools metal lathe machine
Product Details
Brand Name: | Luzhong machine | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description

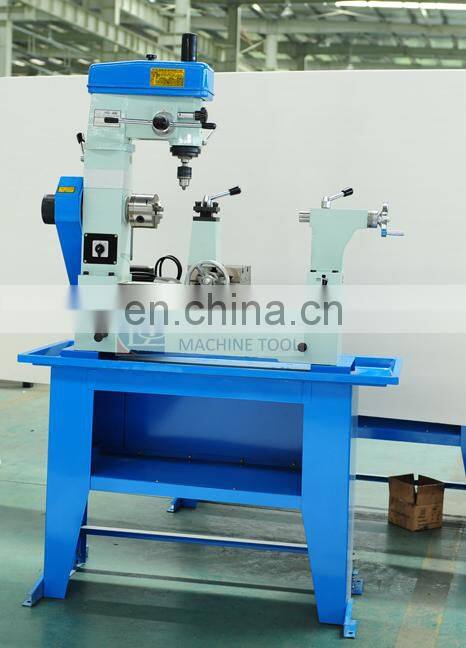

HQ500N HQ800N Small Combination mini lathe mill combo
The main performance characteristics:
1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel
6.Multi-Purpose Machine Model HQ500N (HQ800N)- With Norton lever
Product main technical specifications:
Specifications | HQ500N | HQ800N | |
Turning | Swing over bed | φ 420mm | |
Distance between centers | 500mm | 800mm | |
Max. longitudinal travel | 440mm | 740mm | |
Max. cross travel | 195mm | ||
Taper of spindle | M. T. 4 | ||
Spindle hole | φ 28mm | ||
Step of spindle speed | 7 steps | ||
Range of spindle speed | 160-1360RPM | ||
Barrel travel | 70mm | ||
Taper of center | M. T. 3 | ||
Metric thread range | 0.7-4 mm | ||
Inch thread range | 4-30T. P. I | ||
Longitudinal range of automatic feeding | 0.088-0.55mm/0.0035-0.022’’ | ||
Cross range of automatic feeding | 0.088-0.55mm/0.0035-0.022’’ | ||
Drilling and milling | Max. drilling capacity | φ 22mm | |
Worktable size (L*W) | 475× 160mm² | ||
Max. end mill | φ 28mm | ||
Max. face mill | φ 80mm | ||
Distance between spindle center and column | 285mm | ||
Distance between spindle and worktable | 306mm | ||
Headstock travel of up and down | 110mm | ||
Spindle taper | M. T. 3 | ||
Step of spindle speed | 16 | ||
Range of spindle speed | 120-3000r. p. m | ||
Swivel degree of headstock | ± 360° | ||
Motor | Motor power | 0.55Kw | |
Shipping data | Packing size | 1130×580×1100mm (HQ800:1430×580×1100mm) | |
N. weight/G. weight | 245kg/280kg (HQ800:275kg/325kg) |
Mini Lathe | Combination Lathe milling machine |
Horizontal type lathe | GAP BED Metal lathe |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
Machine Model: HQ500N HQ800N Small Combination mini lathe mill combo
Type of package: Plywood case
Packaging size: 1130×580×1100mm 1430×580×1100mm(one set in one case)
N.W./G.W.: 245/280KGS 275kg/325kg
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
