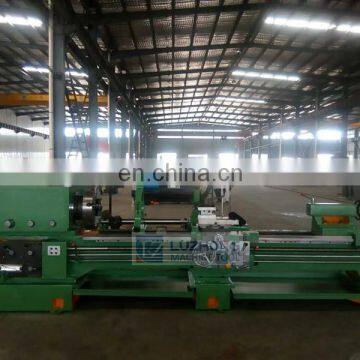

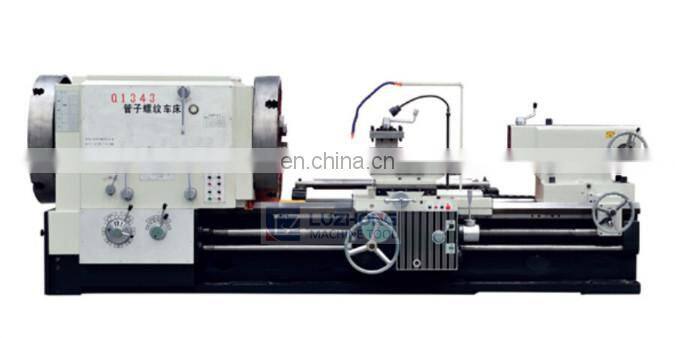

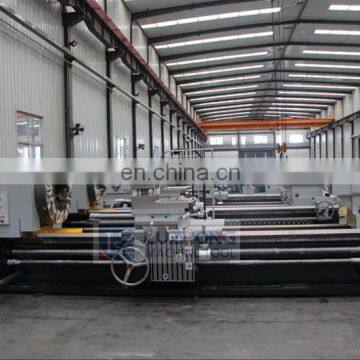

Q1327 Q1332 Q1343 Oil Country Big Bore Pipe Thread Lathe Machine
The main performance characteristics:

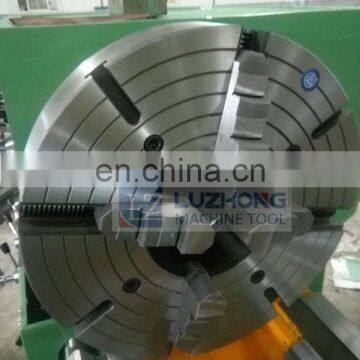

Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard accessories:
Tool post,Tailstock,Chuck,taper guide bar,Lighting lamp,Coolant pump,Rear support bracket,Pad iron etc.
Optional accessories:

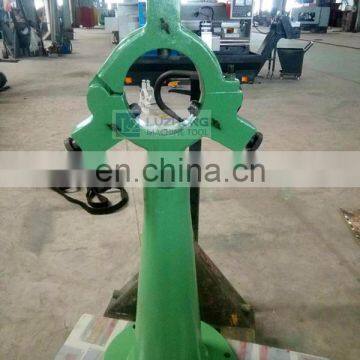

Digital readout,Chuck,Faceplate,Chasing dial,Center rest,Signal light,Protective cover(lead-screw,chuck,tool post),and Grinding attachment etc.
Product main technical parameters:
Specifications |
UNIT |
Q1324 |
Q1327 |
Q1332 |
Q1338 |
Q1343 |
Q1350 |
|
Capacity |
Swing over bed |
mm |
800 |
1000 |
1000 |
1000 |
1000 |
1000 |
Swing over cross slide |
mm |
480 |
610 |
610 |
610 |
610 |
610 |
|
Distance between centers |
mm |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
|
Pipe threading range |
mm |
Ø60-230 |
Ø130-270 |
Ø190-320 |
Ø190-380 |
Ø270-430 |
Ø350-510 |
|
Width of bed way |
mm |
705 |
755 |
755 |
755 |
755 |
755 |
|
Max.load capacity |
T |
3 |
5 |
5 |
5 |
5 |
5 |
|
Spindle |
Spindle bore |
mm |
Ø240 |
280 |
330 |
390 |
440 |
520 |
Spindle speed steps |
- |
12 steps |
12 steps |
9 steps |
9 steps |
9 steps |
9 steps |
|
Spindle speed range |
rpm |
20-460 |
16-380 |
7.5-280 |
6-205 |
4.9-180 |
4.9-180 |
|
Chuck size |
mm |
Ø630 |
Ø800 |
Ø780 |
Ø850 |
Ø1000 |
Ø1000 |
|
Chuck type |
- |
4-jaw electric |
4-jaw manual |
4-jaw manual |
4-jaw manual |
4-jaw manual |
4-jaw manual |
|
Turret |
Turret type |
- |
Manual 4 position |
Manual 4 position |
Manual 4 position |
Manual 4 position |
Manual 4 position |
Manual 4 position |
Tool shank size |
mm |
32x32 |
40x40 |
40x40 |
40x40 |
40x40 |
40x40 |
|
Turret travel |
mm |
200 |
300 |
300 |
300 |
300 |
300 |
|
Carriage |
X axis feed grade/range |
mm/r |
22/0.02-0.45 |
64/0.05-12.15 |
22/0.02-0.45 |
32/0.095-1.44 |
22/0.02-0.45 |
32/0.095-1.44 |
Z axis feed grade/range |
mm/r |
26/0.07-1.33 |
64/0.1-24.3 |
26/0.07-1.33 |
32/0.095-1.4 |
26/0.07-1.33 |
32/0.095-1.4 |
|
X axis rapid traverse speed |
mm/min |
2300 |
1870 |
1870 |
1870 |
1870 |
1870 |
|
Z axis rapid traverse speed |
mm/min |
4000 |
3740 |
3740 |
3740 |
3740 |
3740 |
|
X axis travel |
mm |
320 |
520 |
520 |
520 |
520 |
520 |
|
Z axis travel |
mm |
1310/2810 |
1300/2800 |
1300/2800 |
1300/2800 |
1300/2800 |
1300/2800 |
|
Tailstock |
Tailstock quill diameter |
mm |
Ø100 |
140 |
140 |
140 |
140 |
140 |
Tailstock quill taper |
- |
MT#5 |
MT#6 |
MT#6 |
MT#6 |
MT#6 |
MT#6 |
|
Tailstock quill travel |
mm |
250 |
300 |
300 |
300 |
300 |
300 |
|
Motors |
Main spindle motor |
kW |
18.5 |
22 |
22 |
22 |
22 |
22 |
Rapid traverse motor |
kW |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Coolant pump motor |
kW |
0.125 |
0.125 |
0.125 |
0.125 |
0.125 |
0.125 |
|
Thread |
Metric thread grade/range |
mm |
1-15 |
30/1-30 |
23/1-15 |
23/1-15 |
23/1-15 |
23/1-15 |
Inch thread grade/range |
T.P.I. |
1-14 |
27/1-28 |
22/2-28 |
22/2-28 |
22/2-28 |
22/2-28 |
|
Moudle thread grade/range |
mm |
0.5-7.5 |
- |
- |
- |
- |
- |
|
DP thread grade/range |
D.P.I |
2-28 |
- |
- |
- |
- |
- |
|
Dimensions |
Width x Height |
mm |
2000x1520 |
2100X1600 |
2100X1630 |
2100X1680 |
2100X1680 |
2100X1700 |
Length |
mm |
4190/5690 |
4190/5690 |
4190/5690 |
4190/5690 |
4190/5690 |
4190/5690 |
|
Weight |
Net weight |
T |
8.5/9.5 |
10.0/11.5 |
11.5/13.0 |
12.8/14.3 |
13.0/14.5 |
15.0/16.5 |
|
|
